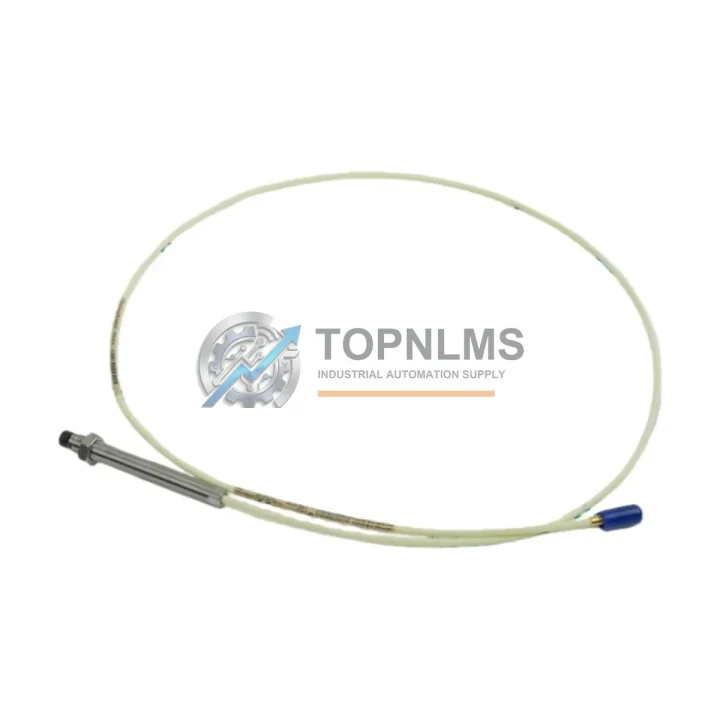

Bently Nevada 21504-00-28-10-02 Ruggedized Proximity Probe

Product Overview

Bently Nevada 21504-00-28-10-02: Industrial Resilience for the Harshest Rotating Machinery Environments

The Bently Nevada 21504-00-28-10-02 is an 8mm eddy-current proximity probe engineered for continuous, non-contact vibration and position measurement in the most demanding industrial environments. Designed as part of Bently Nevada’s proven 21504 Series, this probe delivers exceptional signal stability under conditions of extreme temperature cycling, high humidity, mechanical shock, and intense electromagnetic interference — making it the preferred choice for rotating machinery protection systems in critical infrastructure worldwide.

Unlike standard sensing devices, the 21504-00-28-10-02 is built to sustain reliable operation across continuous production lines where unplanned downtime carries severe operational and financial consequences. Its ruggedized construction, combined with a precision-wound eddy-current sensing coil and hermetically sealed stainless steel housing, ensures consistent gap measurement accuracy even when exposed to oil mist, metallic dust, high-pressure steam, and corrosive chemical vapors common in petrochemical and heavy industrial facilities. The IP67-rated enclosure provides full dust-tight protection and resistance to temporary immersion — a critical requirement in wash-down environments and outdoor installations subject to driving rain or flooding.

This probe integrates directly with Bently Nevada 3300 Series and 3500 Series machinery protection systems, including the 3500/42M Proximitor I/O Module and the 3500/22M Transient Data Interface. When paired with a compatible Bently Nevada Proximitor sensor — such as the 330180-91-00 or 330130-080-00-00 — and the appropriate extension cable, the complete measurement chain delivers ADRE-compatible output signals that feed directly into DCS platforms, safety instrumented systems (SIS), and SCADA architectures. This compatibility ensures seamless integration with control systems from leading automation vendors, including Emerson DeltaV, Honeywell Experion, ABB System 800xA, and Siemens SIMATIC PCS 7.

In high-vibration environments such as compressor trains, steam turbines, gas turbines, and large centrifugal pumps, the 21504-00-28-10-02 provides the real-time shaft displacement data required by API 670-compliant machinery protection systems. Its output is fully compatible with Bently Nevada’s System 1 condition monitoring software, enabling predictive maintenance programs that reduce unplanned shutdowns and extend mean time between failures (MTBF) across critical rotating assets.

For control cabinet integrations, this probe is routinely deployed alongside Bently Nevada 3500/15 Power Supply modules, 3500/20 Rack Interface Modules, and 3500/32 4-Channel Relay modules to form a complete, rack-mounted machinery protection solution. The probe’s low-impedance output is inherently resistant to common-mode noise and ground loop interference — a critical advantage in facilities where long cable runs traverse high-voltage switchgear rooms, motor control centers (MCCs), and variable frequency drive (VFD) enclosures that generate significant electromagnetic emissions.

Field engineers and reliability teams working in oil and gas upstream, midstream pipeline compression, LNG processing, power generation, mining, water treatment, and metallurgical plants consistently specify the 21504 Series for its long-term dimensional stability and resistance to thermal drift. The probe tip’s target material compatibility — optimized for AISI 4140 steel and similar ferromagnetic alloys — ensures accurate measurement across the full operating temperature range without recalibration in the field.

Rugged Specifications Table

Comprehensive Protection Solutions

The 21504-00-28-10-02 proximity probe is rarely deployed in isolation — its full protective value is realized as part of a coordinated machinery protection architecture. In a typical turbomachinery protection panel, this probe works in concert with the Bently Nevada 330180-91-00 Proximitor sensor, which conditions the raw eddy-current signal into a calibrated voltage output suitable for the 3500/42M Proximitor I/O Module. The I/O module, housed within a 3500 Rack alongside the 3500/15 Power Supply and 3500/20 Rack Interface Module, processes vibration and position data in real time and triggers relay outputs through the 3500/32 4-Channel Relay module when alarm or danger thresholds are exceeded.

For facilities requiring integrated safety loop management, the 3500 rack’s relay outputs interface directly with Pilz PNOZ safety relays or Rockwell Automation GuardLogix safety PLCs, enabling SIL-rated shutdown sequences that comply with IEC 61511 functional safety requirements. In DCS-integrated environments, the probe’s signal chain connects to Emerson DeltaV SIS controllers or Honeywell Safety Manager modules via hardwired I/O or FOUNDATION Fieldbus H1 segments, depending on the site’s communication architecture.

Power quality for the Proximitor sensor is typically supplied by a Bently Nevada 3500/15 Power Supply or a dedicated 24 VDC industrial power supply with redundant input capability, ensuring that probe signal conditioning remains uninterrupted even during utility power disturbances. In control cabinets where space is constrained, the 3500 Series’ modular rack design allows engineers to combine proximity probe channels with velocity and acceleration measurement modules — such as the 3500/40M Proximitor/Seismic Monitor — within a single 19-inch rack enclosure, minimizing panel footprint while maximizing measurement coverage across all critical machine trains. Communication modules such as the 3500/92 Communication Gateway further extend the system’s reach, enabling Modbus TCP or OPC-UA data exchange with plant-level SCADA and historian platforms without additional signal conditioning hardware.

Application in Critical Infrastructure

The Bently Nevada 21504-00-28-10-02 is a proven performer across the full spectrum of heavy industrial and critical infrastructure applications. In oil and gas processing facilities, it monitors shaft radial vibration on high-speed centrifugal compressors and gas turbine-driven generators, where early detection of rotor instability, oil whirl, or bearing wear can prevent catastrophic failures that would otherwise result in weeks of lost production and significant safety incidents. Upstream wellhead compression stations operating in remote, unmanned environments depend on the probe’s robust construction and low maintenance requirements to sustain continuous operation between scheduled inspection intervals.

In coal-fired and combined-cycle power generation plants, this probe is installed on steam turbine shafts and boiler feed pump trains, providing continuous axial position and differential expansion data to the plant DCS. Mining operations rely on the 21504 Series to protect large ball mill drives, crusher motors, and ventilation fan assemblies operating in environments saturated with abrasive mineral dust and subject to constant mechanical shock loads that would rapidly degrade conventional contact-type sensors. The probe’s hermetically sealed housing prevents ingress of conductive mineral particles that could compromise measurement integrity or create electrical hazards in classified areas.

Water treatment and desalination facilities deploy this probe on high-speed centrifugal pump trains and blower assemblies, where its IP67-rated housing and corrosion-resistant stainless steel construction provide reliable service in high-humidity, chemically aggressive atmospheres. In metallurgical plants — including steel rolling mills and aluminum smelters — the probe’s wide operating temperature range and EMI resistance make it suitable for installation in close proximity to induction furnaces, arc furnaces, and large rectifier banks that generate intense electromagnetic fields capable of disrupting less robust sensing technologies. The 21504-00-28-10-02’s shielded coaxial construction and differential signal processing ensure measurement fidelity is maintained even in these extreme electromagnetic environments, supporting the continuous production schedules that define modern metallurgical operations.
