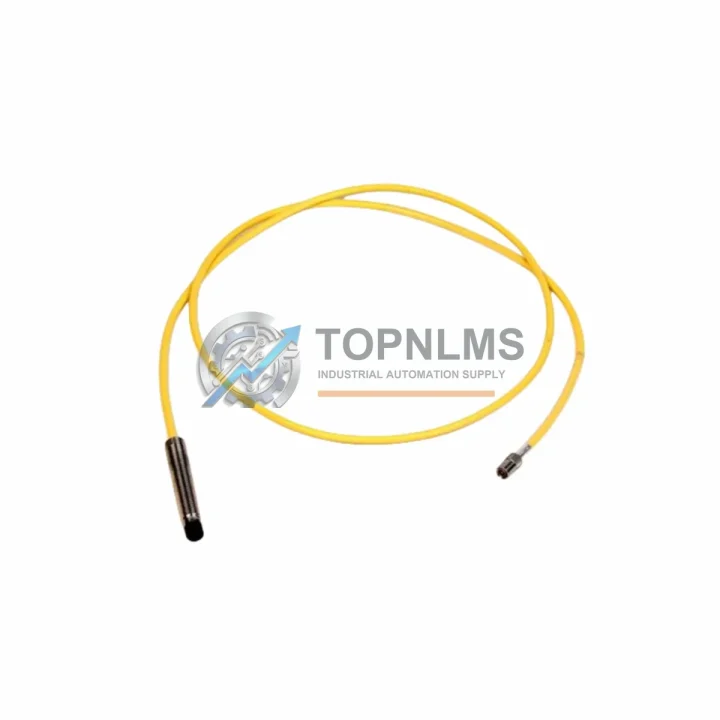

Bently Nevada 21504-00-16-10-02 Ruggedized Proximity Probe

Product Overview

Bently Nevada 21504-00-16-10-02 Ruggedized Proximity Probe for Harsh Environments

The Bently Nevada 21504-00-16-10-02 is a 3300 XL Series Reverse Mount Proximity Probe engineered for continuous, reliable operation in the most demanding industrial environments. Designed to withstand extreme temperature fluctuations, high humidity, mechanical vibration, electromagnetic interference (EMI), and exposure to dust, oil mist, and corrosive atmospheres, this probe delivers consistent shaft displacement and vibration measurement performance where conventional sensors fail. Whether deployed in rotating machinery protection systems on offshore platforms, underground mining operations, or high-temperature turbine halls, the 21504-00-16-10-02 maintains signal integrity and measurement accuracy without compromise.

As part of the Bently Nevada 3300 XL product family, this reverse mount proximity probe is fully compatible with the 3300 XL 8mm Proximity Transducer System, including the companion extension cable and proximitor sensor. The system operates on the eddy-current principle, providing non-contact measurement of radial shaft vibration, axial position, and differential expansion — critical parameters for machinery protection in continuous production environments. The reverse mount configuration allows installation in confined mechanical spaces where standard forward-mount probes cannot be accommodated, making it particularly valuable in compressor trains, steam turbines, and large centrifugal pumps.

In high-vibration environments such as reciprocating compressors or rolling mills, the probe’s rugged stainless steel housing and armored cable assembly resist mechanical fatigue and connector loosening. The probe tip is precision-machined to maintain gap sensitivity across the full operating temperature range, ensuring that the Bently Nevada 3500/42M Proximitor I/O Module or the 3500/40M Proximitor/Seismic Monitor receives a clean, calibrated signal at all times. This is especially important in safety-instrumented systems where false trips or missed alarms carry significant operational and safety consequences.

Integration with the Bently Nevada 3500 Rack machinery protection system is straightforward. The 21504-00-16-10-02 connects via the standard Bently Nevada coaxial cable system, and its output is directly compatible with the 3500/20 Rack Interface Module and 3500/15 Power Supply, eliminating the need for signal conditioning adapters. For plants running legacy Bently Nevada 7200 Series or 3300 Series transducer systems, this 3300 XL probe represents a direct upgrade path — the physical mounting dimensions and electrical interface are designed for backward compatibility, minimizing retrofit engineering effort and downtime.

In oil and gas facilities, the probe is routinely installed on gas turbine compressors, boiler feed pumps, and pipeline booster stations where continuous uptime is non-negotiable. In power generation, it monitors shaft vibration on steam turbines and generator sets, feeding real-time data to the plant DCS or safety PLC for automated trip logic. Mining and mineral processing operations rely on this probe for crusher drives, ball mill pinion bearings, and slurry pump shafts — all applications characterized by heavy shock loading and abrasive contamination. Water treatment and desalination plants use it on high-speed centrifugal blowers and vertical turbine pumps, where bearing failure can disrupt entire treatment trains.

For facilities managing spare parts inventory, the 21504-00-16-10-02 is a high-priority stocking item. A single failed proximity probe can trigger a machinery protection trip, forcing an unplanned shutdown that costs far more than the probe itself. Maintaining at least one spare per critical machine train is standard practice in reliability-centered maintenance programs. TOPNLMS stocks this probe and its associated 330130-045-00-00 extension cable and 330180-X1-05 proximitor sensor, allowing customers to order a complete replacement kit rather than sourcing components individually.

Every unit shipped by TOPNLMS undergoes pre-shipment functional verification, including gap voltage output check, cable continuity test, and visual inspection of the probe tip and connector. Units are packaged in anti-static, shock-resistant packaging suitable for international air freight. Standard lead time from order confirmation to dispatch is 1–3 business days from our Xiamen warehouse, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available for time-critical orders.

Rugged Specifications Table

Comprehensive Protection Solutions

A complete machinery protection system built around the 21504-00-16-10-02 typically includes several complementary Bently Nevada components. The 330130-045-00-00 Extension Cable connects the probe to the proximitor sensor, maintaining signal integrity over distances up to 9 meters. The 330180-X1-05 Proximitor Sensor provides the oscillator-demodulator circuitry that converts the probe’s raw eddy-current signal into a calibrated DC voltage proportional to gap distance. Together, these three components form the complete 3300 XL transducer system as defined by API 670.

At the rack level, the Bently Nevada 3500/42M Proximitor I/O Module accepts up to four transducer channels and provides configurable alarm and danger setpoints, OK relay outputs, and buffered transducer outputs for connection to plant historians or DCS systems. The 3500/20 Rack Interface Module manages communication between the 3500 rack and the plant network, supporting Modbus RTU, Modbus TCP, and Profibus DP protocols — ensuring seamless integration with Siemens SIMATIC S7, Rockwell ControlLogix, or Honeywell Experion DCS platforms. Power to the rack is supplied by the redundant 3500/15 Power Supply, which accepts 88–264 VAC or 18–32 VDC input and provides isolated, regulated power to all installed modules.

For plants requiring hazardous area certification, the Bently Nevada 3300 XL Zener Barrier or galvanic isolator is installed between the proximitor and the rack I/O module, ensuring the transducer loop remains intrinsically safe in Zone 1 or Zone 2 classified areas. Signal isolators and terminal modules from the same system architecture ensure that wiring from the field junction box to the control room maintains full electrical isolation, protecting both personnel and instrumentation from fault currents and ground loops.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 21504-00-16-10-02 is a standard component in API 670-compliant machinery protection systems on gas compressors, expanders, and centrifugal pumps. Offshore platforms and FPSO vessels rely on its corrosion-resistant stainless steel housing and sealed connector to survive salt spray, high humidity, and constant mechanical vibration from vessel motion and deck machinery. Onshore gas processing plants install it on refrigeration compressor trains where continuous operation is required for LNG production targets.

In the power generation sector, coal-fired and combined-cycle gas turbine plants use this probe on steam turbine shafts, generator bearings, and boiler feed pump drives. The probe’s wide operating temperature range allows installation close to high-temperature casings where ambient temperatures regularly exceed 100°C. Nuclear power facilities with stringent quality assurance requirements appreciate the probe’s full API 670 compliance and traceable calibration documentation.

Mining and mineral processing operations present some of the harshest conditions for instrumentation — high dust loading, water ingress, ground vibration, and frequent mechanical impacts. The 21504-00-16-10-02’s IP67-rated connector and armored cable assembly make it suitable for installation on SAG mill trunnion bearings, crusher eccentric shafts, and conveyor drive gearboxes. Metallurgical plants use it on rolling mill drive spindles and continuous caster pinch roll drives, where bearing failure detection must occur within milliseconds to prevent catastrophic equipment damage.

Water and wastewater treatment facilities deploy this probe on high-speed centrifugal blowers, vertical turbine pumps, and digester gas compressors. The non-contact measurement principle eliminates wear and eliminates the need for periodic recalibration due to mechanical contact, reducing maintenance burden in facilities with limited instrumentation staff.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 21504-00-16-10-02?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and mechanical defects in the probe housing, cable, and connector. Warranty claims are processed within 5 business days of receiving the returned unit. TOPNLMS will provide a replacement unit or full refund at the customer’s discretion. The warranty period begins on the date of shipment from our Xiamen facility.

Q2: How is each unit tested before shipment?
Every 21504-00-16-10-02 unit undergoes a pre-shipment inspection protocol that includes: gap voltage output verification at the nominal 2.0 mm gap (target: -18 VDC ±0.5 V), cable continuity and insulation resistance test, connector integrity check, and visual inspection of the probe tip surface for scratches or contamination. Units that fail any test criterion are quarantined and not shipped. A test report is available upon request.

Q3: Is the 21504-00-16-10-02 compatible with legacy Bently Nevada 3300 Series systems?
Yes. The 3300 XL series maintains backward electrical compatibility with the original 3300 Series transducer systems. The probe output signal characteristics — sensitivity of 7.87 V/mm, linear range, and DC bias voltage — are identical to the 3300 Series specification, allowing direct substitution in existing 3300 Series racks and proximitor housings without recalibration of the monitoring system.

Q4: Can TOPNLMS support long-term or blanket purchase orders for this SKU?
Yes. TOPNLMS supports blanket purchase orders, scheduled releases, and consignment stock arrangements for customers with recurring demand for the 21504-00-16-10-02 and associated 3300 XL system components. Contact our sales team to discuss volume pricing, lead time commitments, and dedicated inventory reservation. We maintain ongoing stock of this SKU and its companion extension cables and proximitor sensors to support unplanned replacement requirements.
