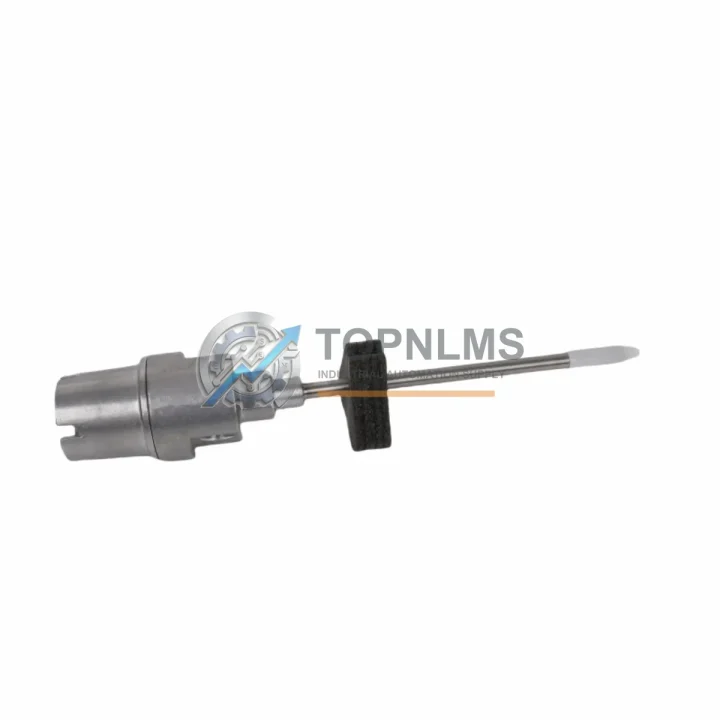

Bently Nevada 21000-16-10-00-113-03-02 Ruggedized Proximity Probe Housing

Product Overview

Bently Nevada 21000-16-10-00-113-03-02 Ruggedized Proximity Probe Housing for Harsh Industrial Environments

The Bently Nevada 21000-16-10-00-113-03-02 is a precision-engineered 16mm eddy-current proximity probe housing assembly from the industry-renowned Bently Nevada 21000 Series. Designed to deliver continuous, non-contact vibration and position measurement in the most demanding industrial environments, this housing assembly is a critical component in rotating machinery protection systems across oil & gas, power generation, mining, metallurgy, and heavy process industries.

Built to withstand high temperatures, aggressive vibration, electromagnetic interference, and corrosive atmospheres, the 21000-16-10-00-113-03-02 maintains measurement accuracy and mechanical integrity where standard sensors fail. Its ruggedized stainless-steel housing and precision-threaded body ensure stable probe positioning and long-term field reliability without recalibration drift — a decisive advantage in continuous production environments where unplanned downtime carries severe operational and safety consequences.

As part of the Bently Nevada 21000 Series eddy-current system, this housing assembly is engineered to work in concert with the Bently Nevada 21000 Series proximity probes, 3300 XL 8mm and 11mm extension cables, and 3300 Series proximitor sensors (signal conditioning modules). Together, these components form a complete shaft vibration monitoring chain that feeds real-time data into Bently Nevada 3500 Series rack-based machinery protection systems — the industry standard for turbine, compressor, pump, and motor protection in critical infrastructure.

In high-vibration environments such as gas turbine compressor trains, the housing assembly’s precision thread engagement and anti-rotation locking mechanism prevent probe migration under sustained mechanical shock. When integrated with Bently Nevada 3500/42M Proximitor Seismic Monitor cards and 3500/22M Transient Data Interface modules, the system provides both steady-state and transient vibration data essential for API 670-compliant machinery protection. The housing is also fully compatible with Bently Nevada TK-3 proximity probe driver field calibration kits, enabling on-site verification without system shutdown.

For facilities operating DCS platforms such as Emerson DeltaV or Honeywell Experion PKS, the 21000-16-10-00-113-03-02 integrates seamlessly into the vibration monitoring I/O layer, with signal outputs compatible with standard 4–20 mA and voltage-output input cards. In safety-instrumented environments governed by IEC 61511, the probe housing supports SIL-rated measurement loops when paired with certified proximitor modules and safety relay modules — ensuring that machinery trip logic remains reliable even under fault conditions.

In petrochemical and refinery applications, where continuous operation of centrifugal pumps, steam turbines, and barrel compressors is non-negotiable, the 21000-16-10-00-113-03-02 provides the mechanical foundation for uninterrupted vibration surveillance. Its corrosion-resistant housing performs reliably in hydrogen sulfide-rich atmospheres and high-humidity environments, reducing the risk of housing degradation that can compromise probe gap settings and introduce measurement error into the protection system.

Mining and mineral processing facilities benefit from the housing assembly’s resistance to particulate ingress and mechanical shock. When mounted on ball mills, SAG mills, or crusher drive trains, the housing maintains probe alignment under the severe structural vibration characteristic of these machines. Combined with Bently Nevada 330180 Series standard extension cables and appropriate proximitor modules, the system delivers the shaft eccentricity and radial vibration data required for predictive maintenance scheduling and bearing condition assessment.

Power generation operators — whether managing steam turbines, gas turbines, or hydro generators — rely on the 21000 Series housing assembly as a long-life spare component. Its dimensional compatibility with existing probe installations means replacement can be completed during a planned outage window without re-engineering the probe mounting arrangement. TOPNLMS maintains ready stock of the 21000-16-10-00-113-03-02 to support emergency spare requirements, with same-day dispatch available for in-stock units.

Rugged Specifications Table

Comprehensive Protection Solutions

The 21000-16-10-00-113-03-02 housing assembly is most effective when deployed as part of a complete, integrated machinery protection architecture. In a typical turbomachinery protection panel, it works alongside the Bently Nevada 3500/42M Proximitor Seismic Monitor for radial vibration alarming and trip, the 3500/45 Position Monitor for axial thrust measurement, and the 3500/22M Transient Data Interface for startup and coast-down analysis. The Bently Nevada 3500/15 Power Supply module provides the stable DC power rail that the entire rack depends on, and the 3500/20 Rack Interface Module manages communication with plant DCS and SCADA systems via Modbus or OPC-DA protocols.

For facilities requiring hazardous-area compliance, the housing assembly is paired with Bently Nevada 3300 XL NSv Proximitor sensors rated for Zone 1 / Division 1 installations, ensuring that the complete measurement loop meets ATEX and IECEx requirements for use in explosive atmospheres. Safety relay modules and Bently Nevada 3500/32M 4-Channel Relay Module cards complete the trip logic layer, providing hardwired machinery shutdown capability independent of DCS availability. This defense-in-depth approach — from the probe housing at the machine to the relay output at the panel — is the architecture that critical infrastructure operators depend on for continuous safe operation.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 21000-16-10-00-113-03-02 is deployed on gas compressor trains, pipeline booster stations, and LNG liquefaction turbines where shaft vibration monitoring is mandated by API 670 and operator safety management systems. Any degradation in probe housing integrity — whether from corrosion, thread wear, or mechanical impact — directly compromises the protection system’s ability to detect developing bearing failures or rotor instability events before they escalate to catastrophic machinery failure.

In coal-fired and combined-cycle power plants, the housing assembly supports continuous vibration monitoring on steam turbine-generator sets operating at 3,000 or 3,600 RPM. The precision gap setting maintained by the housing ensures that the proximitor output remains within the linear measurement range throughout the machine’s operating envelope, from cold startup through full-load steady-state operation.

In mining and mineral processing, where SAG mills, ball mills, and large slurry pumps operate in environments saturated with dust, moisture, and structural vibration, the ruggedized housing provides the mechanical stability needed to maintain accurate shaft position measurement over extended service intervals. Predictive maintenance programs in these facilities depend on trend data quality — and that quality begins with a properly installed, mechanically sound probe housing.

In water treatment and municipal utilities, large centrifugal pump stations and blower trains equipped with Bently Nevada monitoring systems rely on the 21000 Series housing assembly as a long-life field component. TOPNLMS supplies these assemblies with full traceability documentation to support utility procurement and asset management requirements.

Security & Quality FAQ

Q1: What warranty coverage is provided for the 21000-16-10-00-113-03-02?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or credit resolution within agreed lead times.

Q2: How is each unit tested before shipment?
Every 21000-16-10-00-113-03-02 unit undergoes pre-shipment inspection covering dimensional verification, thread integrity check, housing surface condition assessment, and where applicable, functional verification against Bently Nevada specifications. Units are packaged in anti-static, moisture-barrier packaging with individual inspection records.

Q3: Is this housing assembly compatible with existing 21000 Series probe and cable installations?
Yes. The 21000-16-10-00-113-03-02 is dimensionally and electrically compatible with the full Bently Nevada 21000 Series ecosystem, including 16mm proximity probes, 330180 Series extension cables, and 3300/3500 Series proximitor signal conditioners. It is a direct replacement for worn or damaged housings in existing installations without requiring re-cabling or re-configuration of the monitoring system.

Q4: Can TOPNLMS support long-term or repeat supply requirements?
Yes. TOPNLMS maintains strategic inventory of Bently Nevada 21000 Series components to support both emergency spare and planned maintenance procurement programs. We offer framework supply agreements for facilities requiring guaranteed stock availability, with lead-time commitments and volume pricing available upon request. Contact our team at [email protected] or +86 18359293191 to discuss your supply program.
