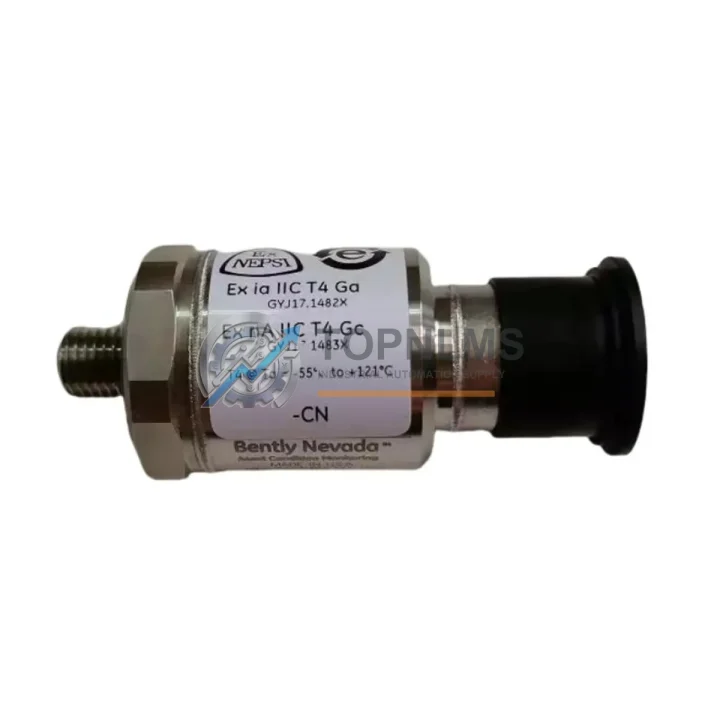

Bently Nevada 200157-14-CN Ruggedized Enveloping Accelerometer Module

Product Overview

Bently Nevada 200157-14-CN Ruggedized Enveloping Accelerometer Module: Industrial Resilience for Harsh Environments

The Bently Nevada 200157-14-CN is a high-performance enveloping accelerometer module engineered for the TrendMaster Pro continuous machinery monitoring system. Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and high-vibration heavy manufacturing floors — this module delivers the signal fidelity and mechanical durability that mission-critical rotating machinery protection demands.

In industries where unplanned downtime translates directly to production loss and safety risk, the 200157-14-CN provides the early-warning vibration envelope detection that maintenance engineers and reliability teams depend on. Its ruggedized construction ensures stable operation under continuous electromagnetic interference (EMI) from variable frequency drives (VFDs), large motor starters, and high-current bus systems commonly found in oil and gas, power generation, and metallurgical facilities.

The module integrates seamlessly within the Bently Nevada TrendMaster Pro rack architecture, working in concert with the 3500/42M Proximitor/Seismic Monitor, 3500/22M Transient Data Interface, and 3500/15 Power Supply Module to form a complete, IEC 61511-compliant machinery protection system. When paired with the TrendMaster Pro 2300/16 I/O Module and Bently Nevada 3500/93 Communication Gateway, the 200157-14-CN enables real-time vibration data transmission over Modbus TCP, PROFIBUS DP, or OPC-DA protocols to distributed control systems (DCS) and SCADA platforms — ensuring plant-wide visibility of rotating equipment health.

For facilities operating Siemens SIMATIC S7-300/400 PLCs, Allen-Bradley ControlLogix, or Yokogawa CENTUM VP DCS platforms, the 200157-14-CN’s analog output interface provides direct 4–20 mA signal compatibility, eliminating the need for additional signal conditioning hardware. This makes it an ideal drop-in replacement or upgrade component for existing condition monitoring architectures without requiring control system reconfiguration.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable machinery protection in heavy industry is never achieved by a single module in isolation. The Bently Nevada 200157-14-CN is most effective when deployed as part of a layered protection architecture. Within the TrendMaster Pro platform, it operates alongside the 2300/40 Dual Voting Logic Module to enforce relay-based trip actions when vibration envelope thresholds are exceeded — a critical safeguard in compressor trains and turbine-driven pump systems where bearing failure can escalate to catastrophic mechanical damage within seconds.

For power supply redundancy — a non-negotiable requirement in continuous process industries — the Bently Nevada 3500/15 Dual Power Supply ensures that the monitoring rack remains energized even during single-supply failures. Upstream, the Phoenix Contact QUINT-PS/1AC/24DC/20 DIN-rail power supply provides clean, regulated 24 VDC to the control cabinet, protecting sensitive I/O modules from voltage transients generated by large inductive loads.

In facilities where the 200157-14-CN feeds vibration data into a Siemens SIMATIC S7-400H redundant PLC, the Siemens 6ES7 153-2BA02-0XB0 IM 153-2 Interface Module handles the ET 200M distributed I/O communication, while Weidmüller KLIPPON terminal blocks provide the field-wiring termination points that maintain signal integrity across long cable runs in electrically noisy environments. For facilities using Rockwell Automation architectures, the Allen-Bradley 1756-IF16 ControlLogix Analog Input Module accepts the 4–20 mA output from the 200157-14-CN directly, enabling seamless integration into existing PlantPAx process automation frameworks.

Safety instrumented system (SIS) applications benefit from pairing the 200157-14-CN with the Bently Nevada 3500/33 16-Channel Relay Module, which executes safety-rated trip outputs based on vibration alarm states. For hazardous area installations requiring ATEX or IECEx certification at the field sensor level, the Pepperl+Fuchs KFD2-STC4-Ex1 Isolated Barrier provides the intrinsic safety interface between the accelerometer in Zone 1 and the safe-area monitoring rack.

Application in Critical Infrastructure

The Bently Nevada 200157-14-CN is deployed across the full spectrum of critical industrial infrastructure where rotating machinery reliability is directly linked to operational safety and regulatory compliance.

In oil and gas upstream and midstream facilities, this module monitors the bearing health of gas compressors, multiphase pumps, and pipeline booster stations operating in remote, unmanned locations. Its ability to detect early-stage bearing defects through high-frequency envelope analysis — before vibration broadband levels trigger conventional velocity alarms — gives maintenance teams the lead time needed to schedule planned interventions rather than emergency shutdowns.

In coal-fired and combined-cycle power generation plants, the 200157-14-CN is installed on boiler feed pumps, induced draft fans, and steam turbine auxiliary systems. These assets operate continuously at elevated temperatures and are subject to significant shaft misalignment forces during thermal cycling. The module’s stable analog output under high-EMI conditions — generated by large generator excitation systems and high-voltage switchgear — ensures that DCS alarm systems receive clean, reliable vibration data without spurious trips.

In underground and open-pit mining operations, where dust ingress, mechanical shock, and wide ambient temperature swings are constant challenges, the 200157-14-CN’s robust backplane-mounted design within a sealed control cabinet provides the environmental isolation needed for long-term, maintenance-free operation on conveyor drive motors, crusher main bearings, and slurry pump assemblies.

Water and wastewater treatment facilities rely on this module for continuous monitoring of high-speed centrifugal pumps and blower units in high-humidity, chemically aggressive environments. Its compatibility with existing Bently Nevada 3500 system gateways allows water utilities to integrate TrendMaster Pro data into their existing SCADA historian platforms without additional middleware investment.

In metallurgical and steel production facilities, the 200157-14-CN is applied to rolling mill drive motors, continuous casting machine drives, and ladle transfer car wheel bearings — all assets where undetected bearing failure results in production line stoppages measured in hours and financial losses measured in millions.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Bently Nevada 200157-14-CN?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with full technical support, and replacement units are dispatched within 3–5 business days of confirmed fault diagnosis. The warranty period begins from the date of shipment confirmation.

Q2: How is each unit tested before shipment?
Every 200157-14-CN module undergoes pre-shipment functional verification including power-on self-test, analog output calibration check (4–20 mA linearity), and backplane communication handshake validation. Units are inspected for physical integrity, connector condition, and firmware version consistency before packaging. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 200157-14-CN compatible with existing TrendMaster Pro and Bently Nevada 3500 system installations?
Yes. The 200157-14-CN is a direct form-fit-function replacement for compatible TrendMaster Pro 2300-series rack slots. It is backward-compatible with existing ICP®/IEPE accelerometer field wiring and does not require rack firmware upgrades in most installations. For integration with Bently Nevada 3500 systems, the existing 3500/93 Communication Gateway handles protocol translation without additional configuration. Compatibility with specific rack revisions can be confirmed by our technical team prior to order.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
TOPNLMS maintains dedicated inventory of Bently Nevada TrendMaster Pro modules, including the 200157-14-CN, to support planned maintenance programs, annual turnaround schedules, and emergency spare requirements. We offer blanket purchase order arrangements and reserved stock agreements for facilities with multi-unit requirements. Lead times for standard orders are typically 3–7 business days for in-stock units, with expedited shipping available for critical plant situations.
