Bently Nevada 200157-09-CN Original Industrial Spare TrendMaster Pro Compatible

Product Overview

Bently Nevada 200157-09-CN Original Industrial Spare TrendMaster Pro Compatible: System Stability and Maintenance Value

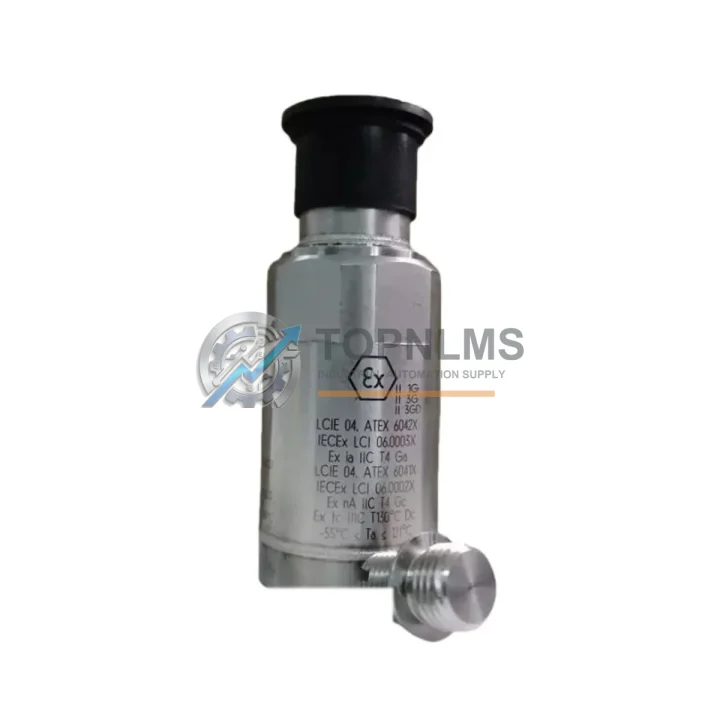

The Bently Nevada 200157-09-CN is an original enveloping accelerometer engineered for the TrendMaster Pro condition monitoring platform — one of the most widely deployed continuous machinery protection systems in rotating equipment environments worldwide. In critical industrial facilities including petrochemical plants, power generation stations, compressor trains, and heavy manufacturing lines, the 200157-09-CN serves as a front-line sensor for detecting early-stage bearing defects, gear mesh anomalies, and structural resonance events before they escalate into unplanned shutdowns.

Sourcing a verified original spare of the 200157-09-CN is not merely a procurement decision — it is a system integrity decision. Counterfeit or incompatible sensors introduce measurement offsets that corrupt baseline vibration data, invalidate alarm thresholds, and ultimately undermine the predictive maintenance program the TrendMaster Pro system was designed to support. TOPNLMS supplies only original-source components, fully tested prior to shipment, backed by a 12-month warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a 200157-09-CN enveloping accelerometer is flagged for replacement during a scheduled outage or condition-based maintenance event, experienced maintenance engineers treat the intervention as an opportunity to audit the broader TrendMaster Pro measurement chain. The sensor itself is only one element in a system whose accuracy depends on the integrity of every component between the machine casing and the monitoring rack.

Begin by inspecting the TrendMaster Pro I/O module (such as the 3500/42M or equivalent dynamic pressure and acceleration input card) for any sign of channel drift, connector corrosion, or firmware version mismatch. A degraded I/O module will misinterpret even a perfectly functional 200157-09-CN signal. Simultaneously, verify the signal conditioning cables — Bently Nevada armored extension cables rated for the CN connector series — for jacket abrasion, shield continuity, and proper grounding at the junction box. Damaged cable shielding is a leading cause of spurious high-frequency noise that mimics early bearing fault signatures.

At the rack level, confirm that the TrendMaster Pro power supply module is delivering stable excitation voltage within specification. Voltage sag under load can suppress accelerometer output amplitude and cause missed alarms on high-speed bearing defects. If the rack houses multiple measurement channels, this is also the right moment to verify the multiplexer module scan rate configuration — an incorrect scan interval will under-sample fast-developing faults on high-speed machinery.

For facilities running parallel protection architectures, cross-check the 3500 Series rack (if co-installed) to ensure alarm setpoints are synchronized between the TrendMaster Pro continuous monitoring system and any trip-capable protection channels. Discrepancies between advisory and protective alarm levels are a common source of nuisance trips or, conversely, missed protective actions.

Bearing replacement events should also prompt inspection of the proximity probe and Proximitor sensor assemblies (e.g., 3300 XL series) monitoring shaft displacement on the same machine train. Enveloping accelerometers and eddy-current proximity systems provide complementary diagnostic information — accelerometers excel at detecting rolling element bearing defects, while proximity probes capture journal bearing oil film instability and shaft bow. Maintaining both sensor types in calibrated condition is essential for a complete machinery health picture.

Finally, update the System 1 Evolution software asset database to log the sensor replacement date, serial number, and post-installation baseline spectrum. A documented baseline is the foundation of any credible predictive maintenance program and is required for warranty validation in most insurance and regulatory frameworks.

Strategic Replacement Solutions

The 200157-09-CN was designed for long service life, but aging industrial infrastructure often means that the original installation predates current connector standards, cable routing practices, or rack firmware versions. TOPNLMS sources the 200157-09-CN as a direct original replacement, eliminating the compatibility risk associated with aftermarket alternatives that may use different piezoelectric element formulations, altered sensitivity coefficients, or non-standard connector tolerances.

For facilities managing end-of-life TrendMaster Pro systems, the 200157-09-CN replacement strategy supports system life extension without requiring a full platform migration. By maintaining original sensor specifications, maintenance teams preserve the validity of historical trend data, alarm baselines, and machine-specific diagnostic signatures accumulated over years of operation. This is particularly valuable in regulated industries — power generation, oil and gas, chemical processing — where revalidation of a new monitoring platform carries significant engineering and compliance cost.

Downtime reduction is a direct outcome of pre-positioning verified original spares. Facilities that maintain a minimum stock of one to two 200157-09-CN units per critical machine train report significantly shorter mean-time-to-repair (MTTR) for sensor-related outages, as field replacement can be completed within a single shift without waiting for expedited freight. TOPNLMS offers competitive lead times and can support blanket purchase orders for multi-site spare parts programs.

Support FAQ

Q1: How do I verify that the 200157-09-CN I receive is an original Bently Nevada component?
Every unit supplied by TOPNLMS is sourced from authorized distribution channels and undergoes pre-shipment functional testing. Original labeling, date codes, and connector markings are verified against Bently Nevada factory documentation. A test report is available upon request.

Q2: What is the recommended spare parts inventory strategy for the 200157-09-CN?
For critical rotating machinery (compressors, turbines, large pumps), we recommend maintaining a minimum of one spare per machine train monitored by TrendMaster Pro. For non-critical or redundant machines, a shared pool of two to three units per site is typically sufficient to support a 12-month maintenance cycle without emergency procurement.

Q3: Can the 200157-09-CN be installed in the field without specialized tools?
Yes. The CN-series connector is designed for field installation and replacement. Standard torque specifications for the mounting stud and connector locking ring apply. Post-installation, a brief online spectrum check against the pre-replacement baseline is recommended to confirm correct sensor orientation and cable integrity before returning the machine to service.

Q4: What does the 12-month warranty cover?
The TOPNLMS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the Bently Nevada product documentation. Warranty claims are supported by our technical team at [email protected]. Units showing physical damage from improper installation or operation outside rated environmental limits are assessed case by case.
