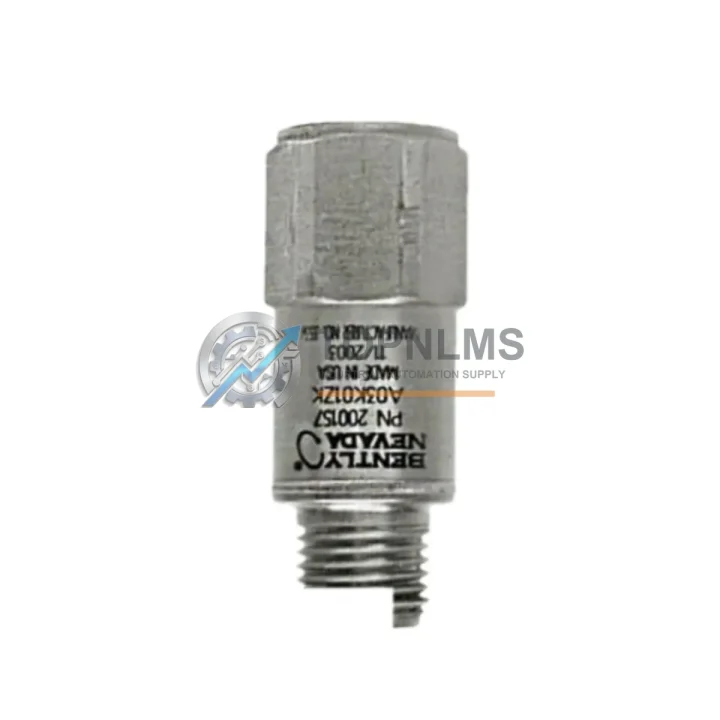

Bently Nevada 200157-05-05 Ruggedized Vibration Sensor Module

Product Overview

Bently Nevada 200157-05-05 Ruggedized Vibration Sensor Module: Industrial Resilience for Harsh Environments

The Bently Nevada 200157-05-05 is a precision enveloping accelerometer engineered as part of the TrendmasterPro continuous condition monitoring platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity zones, dusty mining sites, and locations subject to intense mechanical vibration and electromagnetic interference — this sensor module delivers consistent, high-fidelity vibration data that forms the backbone of predictive maintenance programs across critical industries worldwide.

In rotating machinery protection, signal integrity is non-negotiable. The 200157-05-05 uses enveloping signal processing technology to isolate high-frequency stress wave emissions from background mechanical noise, enabling early detection of bearing defects, gear mesh anomalies, and lubrication failures long before they escalate into catastrophic failures. This capability is especially valuable in continuous production environments where unplanned downtime carries severe operational and financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The 200157-05-05 does not operate in isolation — it is one element of a layered machinery protection architecture. When deploying or replacing this sensor in the field, maintenance engineers should simultaneously verify the condition of the TrendmasterPro Dynamic Signal Input (DSI) module, which receives and processes the enveloping signal from the accelerometer. A degraded DSI module can mask genuine bearing fault signatures, leading to missed alarms even when the sensor itself is functioning correctly.

Equally important is the integrity of the TrendmasterPro Rack Power Supply. Voltage fluctuations or ripple on the 24 VDC rail can introduce noise artifacts into the 4–20 mA signal chain, corrupting trend data and generating nuisance alarms. Inspecting and, where necessary, replacing the rack power supply during a planned outage is a cost-effective measure that protects the entire monitoring system’s reliability.

The sensor cable and field junction box should also be part of any inspection checklist. Armored sensor cables exposed to high-vibration environments are susceptible to micro-fractures in the shield braid, which degrade EMI rejection over time. Replacing the cable assembly alongside the 200157-05-05 sensor eliminates a common source of intermittent signal faults. Similarly, the field junction box terminal blocks — particularly those using spring-clamp or screw-type connections — should be checked for corrosion and re-torqued to specification.

For facilities running the full Bently Nevada System 1 software platform, the TrendmasterPro Communication Gateway module is the critical link between field sensors and the plant historian or DCS. Ensuring the gateway firmware is current and that its Ethernet or Modbus TCP connection to the control network is stable prevents data gaps that can undermine long-term trend analysis. In parallel, the Bently Nevada 3500 Series rack — often deployed alongside TrendmasterPro for API 670-compliant overspeed and radial vibration protection — should be inspected for any loose I/O module connections or alarm relay faults.

In high-dust or high-humidity environments such as cement plants, underground mining operations, or coastal petrochemical facilities, the TrendmasterPro enclosure seals and cable gland fittings deserve particular attention. Compromised ingress protection allows moisture and particulate contamination to reach sensitive electronics, accelerating corrosion of the backplane connectors and reducing the service life of every module in the rack. Stocking a set of replacement cable glands and enclosure gaskets alongside the 200157-05-05 sensor is a straightforward measure that significantly extends system uptime between major maintenance intervals.

Application in Critical Infrastructure

The Bently Nevada 200157-05-05 enveloping accelerometer is deployed across the full spectrum of heavy industry and critical infrastructure. In oil and gas upstream and midstream operations, it monitors the bearing health of gas compressors, multiphase pumps, and pipeline booster stations — assets where a single undetected bearing failure can trigger emergency shutdowns, environmental incidents, and regulatory scrutiny. The sensor’s IP67 rating and wide operating temperature range make it equally suited to offshore platform environments, where salt spray, humidity, and temperature cycling are constant challenges.

In the power generation sector — including coal-fired, gas turbine, hydroelectric, and nuclear auxiliary systems — the 200157-05-05 provides the high-frequency vibration data needed to detect early-stage bearing fatigue in boiler feed pumps, cooling water pumps, and generator exciter bearings. Power plant maintenance teams rely on this data to schedule bearing replacements during planned outages rather than reacting to in-service failures that force emergency load shedding.

Mining and mineral processing operations present some of the harshest conditions any sensor must endure: extreme dust loading, continuous ground vibration from blasting and heavy haulage, and wide ambient temperature swings. The 200157-05-05’s ruggedized construction and enveloping signal processing allow it to extract meaningful bearing condition data even in these high-noise environments, supporting the predictive maintenance of SAG mills, ball mills, conveyor drive gearboxes, and slurry pumps.

In water and wastewater treatment facilities, the sensor monitors the bearing condition of large centrifugal pumps and blower units that must operate continuously with minimal maintenance intervention. Metallurgical and steel plants use it to protect the rolling mill drive trains and continuous casting machine bearings that are central to production throughput. Across all these applications, the 200157-05-05 delivers the same core value: early warning of developing faults, enabling planned intervention before failure.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Bently Nevada 200157-05-05?
Every unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional performance. Prior to shipment, each sensor undergoes functional verification testing to confirm signal output integrity and connector condition. Warranty claims are supported with direct technical assistance and replacement dispatch.

Q2: How is compatibility with my existing TrendmasterPro system verified before shipment?
The 200157-05-05 is a standard TrendmasterPro platform sensor with a defined signal interface. Our technical team cross-references the part number against the target DSI module and rack configuration to confirm compatibility before order confirmation. Customers are encouraged to provide their existing rack model and software version for a complete compatibility check.

Q3: Can this sensor replace an older or discontinued Bently Nevada accelerometer model?
The 200157-05-05 is designed as a direct replacement within the TrendmasterPro sensor family. For legacy installations using earlier-generation Bently Nevada accelerometers with different connector types or cable lengths, our team can advise on adapter options or alternative part numbers that maintain full system compatibility without requiring rack or software modifications.

Q4: What is the typical lead time and shipping arrangement for this part?
