Bently Nevada 200155-03-05 Replacement for Trendmaster Pro

Product Overview

Bently Nevada 200155-03-05 Replacement for Trendmaster Pro: Seamless Transition & Legacy System Upgrade

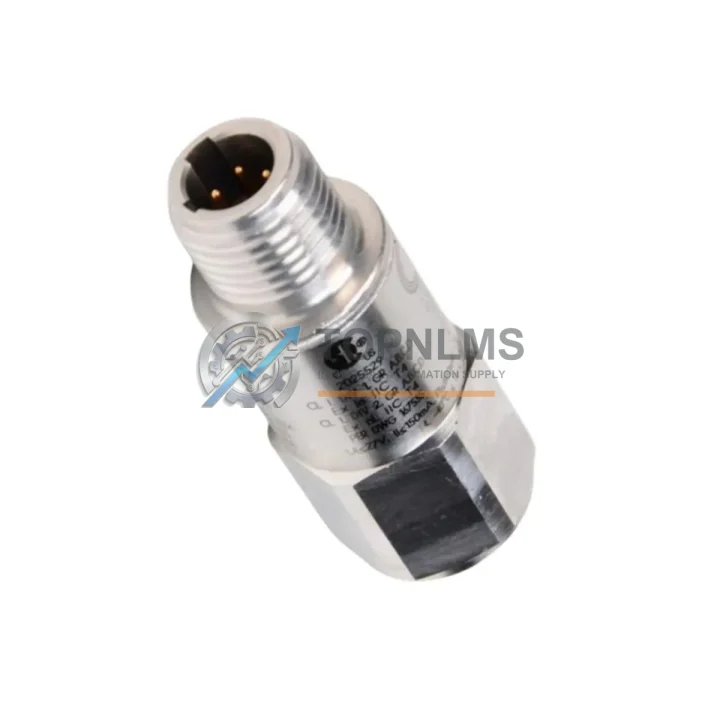

The Bently Nevada 200155-03-05 is a Low Frequency Accelerometer designed for the Trendmaster Pro continuous online monitoring platform. As legacy Trendmaster Pro installations age and original spare parts become increasingly scarce, plant engineers and reliability teams face mounting pressure to source verified replacement units that maintain full signal compatibility with existing I/O modules, junction boxes, and monitoring racks — without triggering a full system overhaul.

This replacement solution is engineered to address exactly that challenge. Whether you are managing a rotating machinery protection system in a petrochemical plant, a power generation facility, or a heavy industrial environment, the 200155-03-05 accelerometer can be integrated into your existing Trendmaster Pro architecture with minimal rewiring and zero software reconfiguration. The sensor’s low-frequency response range, IEPE (Integrated Electronics Piezo-Electric) signal output, and standard 2-pin MIL-spec connector are fully compatible with the Trendmaster Pro 3500/22M Transient Data Interface and the 3500/42M Proximitor/Seismic Monitor modules already installed in your control cabinet.

For facilities running mixed Bently Nevada ecosystems — where the 3500 Series rack coexists with older 7200 Series proximity probes or 330100 Series proximity transducers — the 200155-03-05 integrates without disrupting adjacent channel configurations. Field engineers have confirmed that the sensor’s sensitivity (100 mV/g nominal) and frequency range (0.5 Hz to 1,000 Hz) align with the original Trendmaster Pro specification sheets, making it a validated drop-in replacement rather than a workaround.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Trendmaster Pro migration rarely involves a single component. In practice, replacing the 200155-03-05 accelerometer is often the starting point of a broader condition monitoring upgrade. During the retrofit process, engineers frequently identify adjacent components that require simultaneous attention to ensure system integrity.

The Bently Nevada 3500/22M Transient Data Interface module, which processes the IEPE signal from the 200155-03-05, is a common co-replacement item — particularly in installations where the rack has been in continuous service for over a decade. Similarly, the 3500/42M Proximitor/Seismic Monitor may require firmware validation or module swap when the accelerometer channel is being re-commissioned after a long outage.

For facilities that also operate proximity measurement systems, the Bently Nevada 330100-90-00 Proximity Transducer and its associated 330180-X1-05 Extension Cable are frequently ordered alongside the 200155-03-05 to complete a full shaft and casing vibration measurement upgrade. The 3500/15 Power Supply Module should also be inspected during any rack-level maintenance window, as aging power supplies are a leading cause of intermittent sensor faults that are often misattributed to the transducer itself.

In control cabinet environments where the Trendmaster Pro rack shares enclosure space with DCS I/O marshalling panels, engineers have found it beneficial to simultaneously address the Bently Nevada 3500/20 Rack Interface Module and the associated 3500/05 System Rack backplane connections. Loose backplane contacts and corroded terminal blocks in the junction box — particularly the Bently Nevada 3500/92 Communication Gateway Module used for Modbus or Ethernet/IP integration — are common sources of false alarms that a sensor replacement alone will not resolve.

For sites transitioning from older standalone Trendmaster Pro nodes to a networked condition monitoring architecture, the Bently Nevada System 1 Evolution software platform provides the supervisory layer that ties together accelerometer data, proximity probe readings, and process variable inputs. Ensuring that the 200155-03-05 replacement is commissioned within a System 1-compatible rack configuration eliminates the need for a secondary engineering review during the software migration phase.

Retrofit Guidance FAQ

Q: Does replacing the 200155-03-05 require rewiring the junction box?
A: No. The replacement unit uses the same 2-pin MIL-spec connector and identical cable pinout as the original. Existing field wiring, conduit runs, and junction box terminations remain unchanged. Only the sensor body at the measurement point needs to be swapped.

Q: Will the Trendmaster Pro monitoring software require reconfiguration after the swap?
A: No software reconfiguration is required. The 200155-03-05 replacement maintains the same sensitivity (100 mV/g) and IEPE output characteristics. The 3500/22M or 3500/42M module will recognize the new sensor without channel re-ranging or alarm threshold adjustment.

Q: Is the replacement compatible with both Modbus RTU and Ethernet/IP communication protocols used in our DCS integration?
A: Yes. The accelerometer itself is an analog IEPE device; communication protocol compatibility is governed by the 3500 rack’s gateway module (e.g., 3500/92), not the sensor. Replacing the 200155-03-05 has no impact on the rack’s Modbus RTU or Ethernet/IP configuration.

Q: Our control cabinet has limited space. Does the replacement unit have the same physical dimensions?
A: Yes. The replacement 200155-03-05 matches the original’s physical envelope, mounting thread specification, and cable exit orientation. No bracket modification or cabinet re-layout is required.

Q: Can this replacement be used in a mixed Bently Nevada environment alongside 7200 Series and 3300 Series components?
A: Yes. The 200155-03-05 operates independently on its own IEPE channel and does not interfere with adjacent proximity probe channels (7200 or 3300 Series). Mixed-rack installations are fully supported.

Q: What is the lead time and how is the unit tested before shipment?
A: Units are in stock and ship within 1–3 business days from Xiamen, China. Each unit undergoes pre-shipment functional verification including sensitivity check and connector integrity test. A test report is available upon request.

Warranty Assurance

Every Bently Nevada 200155-03-05 replacement unit supplied by TOPNLMS is backed by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, signal output failures, and connector integrity issues identified under normal operating conditions consistent with the Trendmaster Pro platform specification.

Pre-shipment testing is conducted on 100% of units. Each accelerometer is verified for sensitivity output, frequency response, and connector continuity before packaging. A functional test report is available upon request for quality assurance documentation purposes.

In the event of a warranty claim, TOPNLMS provides a direct replacement dispatch within 5 business days of claim confirmation. No return-to-manufacturer delays. Our after-sales response team is reachable via email and phone for technical support during installation, commissioning, and the full warranty period.

For procurement teams requiring documentation for vendor qualification, we can provide product datasheets, test certificates, and company registration documents upon request. Volume pricing and blanket order arrangements are available for MRO and spare parts programs.
