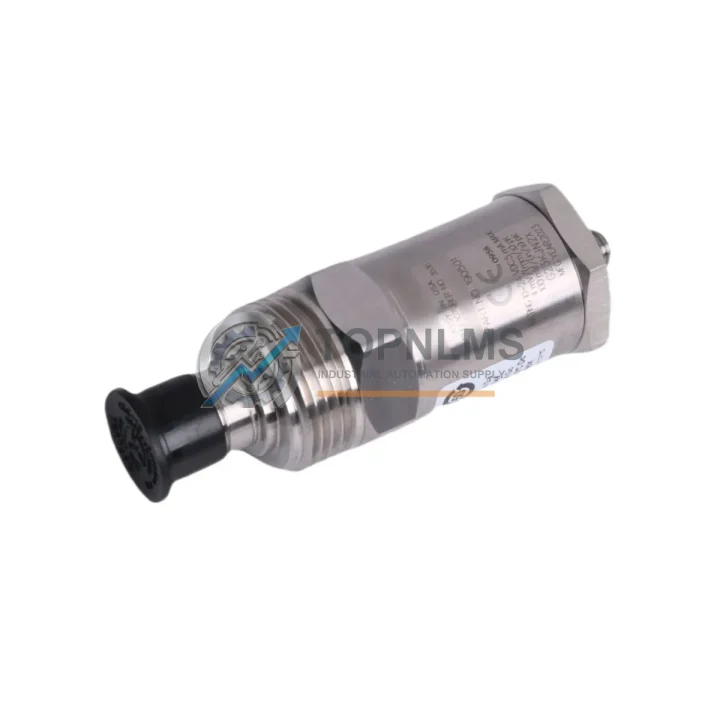

Bently Nevada 190501-23-00-04 Velomitor CT Replacement

Product Overview

Bently Nevada 190501-23-00-04 Velomitor CT: Seamless Replacement & Upgrade for Legacy Vibration Monitoring Systems

The Bently Nevada 190501-23-00-04 Velomitor CT Piezoelectric Velocity Transducer is a precision seismic velocity sensor engineered for continuous machinery health monitoring in rotating equipment applications. As legacy installations age and original units reach end-of-service life, plant engineers and reliability teams face the critical challenge of sourcing a verified drop-in replacement that preserves signal integrity, wiring compatibility, and system calibration — without triggering a full-scale instrumentation overhaul.

TOPNLMS supplies the 190501-23-00-04 as a direct replacement and upgrade solution for facilities operating Bently Nevada 3500 Series machinery protection systems, 7200 Series proximity systems, and older ADRE-based condition monitoring platforms. Whether your existing Velomitor CT unit has failed, is approaching its calibration expiry, or your plant is executing a phased migration from legacy vibration monitoring to a modern predictive maintenance architecture, this SKU delivers a verified, tested, and warranted solution ready for immediate field installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring installation to a modern, reliable architecture rarely involves a single component. When replacing the 190501-23-00-04 Velomitor CT, field engineers typically evaluate the surrounding system for concurrent upgrades to maximize uptime and reduce future maintenance windows.

In 3500 Series rack-based systems, the velocity monitor card — such as the Bently Nevada 3500/42M or 3500/45 — interfaces directly with the Velomitor CT output. If the monitor card itself shows drift or calibration anomalies, replacing both the transducer and the monitor card simultaneously eliminates the risk of misattributing signal errors post-installation. Similarly, the 3500/20 Power Supply Module should be inspected during any transducer swap, as aging PSU modules can introduce noise that masks genuine vibration signatures.

For facilities running parallel proximity probe systems on the same machinery train, the Bently Nevada 3300 XL 8mm Proximity Transducer System or 330130-080-00-00 eddy current probes are commonly upgraded in the same maintenance window. Combining velocity and displacement measurements on a single machine train provides a more complete picture of rotor dynamics and bearing condition — a key requirement for API 670-compliant machinery protection.

Where the 3500 rack communicates upstream to a DCS or SCADA platform via Modbus RTU or Ethernet/IP, the 3500/92 Communication Gateway Module serves as the protocol bridge. Verifying gateway firmware compatibility before and after a transducer replacement prevents unexpected communication dropouts during the post-installation commissioning phase.

In control cabinet environments where signal cable runs exceed 30 metres, a signal isolator or barrier module — such as those from the MTL or P+F series — is often installed in-line to protect the monitor card input from ground loops introduced during the physical swap. This is particularly relevant in older facilities where cable shielding practices were inconsistent.

Finally, for plants transitioning from periodic manual data collection to continuous online monitoring, the addition of a Bently Nevada System 1 Evolution software node or a compatible ADRE 408 DSPi data acquisition unit allows the newly installed 190501-23-00-04 to feed real-time vibration trend data into a plant-wide asset performance management platform — completing the migration from reactive to predictive maintenance.

Retrofit Guidance FAQ

Q: Does replacing the 190501-23-00-04 require rewiring the junction box or terminal block?
A: No. The Velomitor CT uses a standard 2-pin MIL-spec connector with a defined pin assignment. The replacement unit ships with the same connector configuration, allowing a direct swap at the sensor end without disturbing field wiring at the junction box or the 3500 rack terminal block.

Q: Will the 3500 Series monitor card require recalibration after the transducer is replaced?
A: In most cases, no full recalibration is required if the replacement unit matches the original sensitivity specification (typically 100 mV/in/s). However, a functional verification check — comparing the OK relay status and the vibration reading against a known baseline — is recommended as part of the post-installation commissioning procedure.

Q: Is the 190501-23-00-04 compatible with both Modbus and Ethernet/IP communication architectures?
A: The Velomitor CT is a passive analog sensor; it does not participate in digital communication protocols directly. Protocol compatibility is determined by the 3500 rack’s communication gateway module. The transducer replacement has no impact on the rack’s Modbus RTU or Ethernet/IP configuration.

Q: What is the physical installation clearance requirement for the replacement unit?
A: The 190501-23-00-04 shares the same body dimensions and stud mount pattern as the original Velomitor CT. No bracket modification, housing machining, or additional mounting hardware is required for a direct field swap.

Q: Can this unit be used to replace sensors on non-Bently Nevada monitor platforms?
A: The Velomitor CT output is a standard analog voltage signal compatible with any velocity monitor input that accepts the same sensitivity range. Compatibility with third-party monitor cards should be verified against the monitor’s input specification sheet prior to installation.

Warranty Assurance

Every 190501-23-00-04 Velomitor CT Replacement unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional output verification test to confirm sensitivity, connector integrity, and mechanical condition. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgement and 72 hours for resolution proposal. Customers are not required to return the defective unit before a replacement is dispatched for critical plant applications — contact our team to confirm eligibility.

Stock is held in Xiamen, China, with express international shipping available to most industrial regions. Lead time for in-stock units is typically 3–7 business days to major destinations. For urgent plant shutdowns or emergency replacement requirements, expedited shipping options are available upon request.
