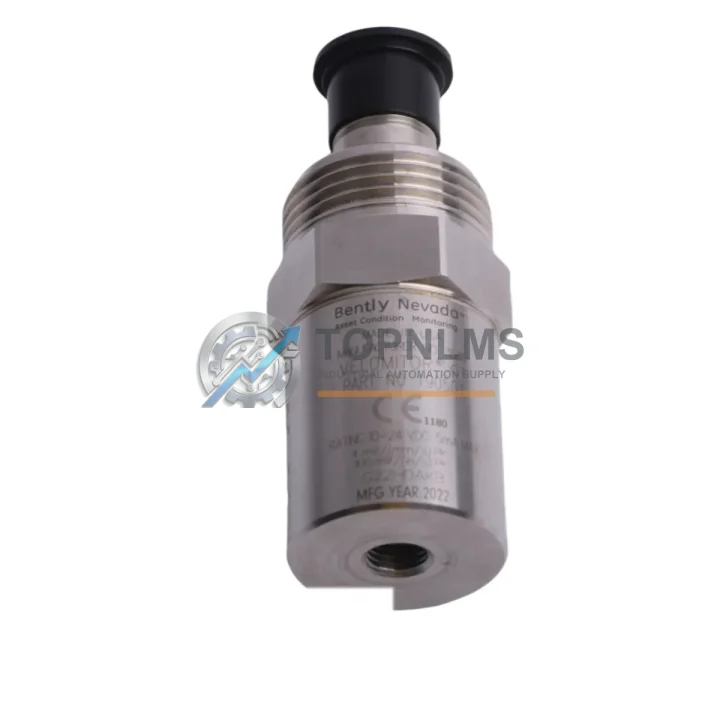

Bently Nevada 190501-18-00-CN Replacement Velomitor CT 3500

Product Overview

Bently Nevada 190501-18-00-CN Replacement Velomitor CT 3500 Series: Seamless Transition & Legacy System Compatibility

The Bently Nevada 190501-18-00-CN Velomitor CT Velocity Transducer is a precision piezoelectric velocity sensor engineered for the Bently Nevada 3500 Series machinery protection system. As aging plant infrastructure reaches end-of-life and original OEM supply chains tighten, procurement teams and reliability engineers increasingly require a verified, drop-in replacement that preserves signal integrity, wiring compatibility, and system certification without forcing a full platform migration.

TOPNLMS stocks the 190501-18-00-CN as a ready-to-ship replacement unit, fully tested against Bently Nevada factory specifications. Whether your facility is executing a planned turnaround, responding to an unplanned trip, or systematically retiring legacy Velomitor XL sensors in favor of the Velomitor CT platform, this unit delivers the electrical and mechanical compatibility your maintenance team needs to restore protection coverage with minimal downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration-Ready Components for 3500 Series Systems

A successful migration from a legacy Bently Nevada machinery protection architecture to a fully operational 3500 Series platform rarely involves a single component. In practice, reliability engineers and system integrators encounter a cascade of interdependent replacements across the monitoring rack, field wiring, and communication infrastructure.

When replacing the 190501-18-00-CN Velomitor CT, the most common adjacent requirement is verifying the health of the Bently Nevada 3500/42M Proximitor/Seismic Monitor module seated in the same rack. This module processes the velocity signal from the transducer and issues trip/alarm outputs to the plant DCS or safety system. If the 3500/42M is also approaching end-of-life or showing calibration drift, replacing both simultaneously during a planned outage eliminates the risk of a second unplanned shutdown.

Field wiring integrity is equally critical. Many sites running legacy Velomitor XL sensors use aging armored cable assemblies with Bently Nevada 330130 series extension cables or equivalent field-wiring harnesses. These cables, if not replaced alongside the transducer, can introduce ground loops or signal attenuation that masks the improvement gained from the new sensor. Inspecting and, where necessary, replacing the interconnecting cable during the same maintenance window is strongly recommended.

For facilities operating the Bently Nevada 3500/20 Rack Interface Module (RIM), the migration window is also an appropriate time to verify firmware revision compatibility between the RIM and the updated transducer channel configuration. The 3500/20 manages Modbus RTU and Ethernet communication between the 3500 rack and the plant historian or DCS — typically a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA platform. Confirming that the RIM firmware supports the channel configuration used by the replacement 190501-18-00-CN avoids post-installation communication faults.

In turbine and compressor train applications, the Velomitor CT is frequently installed alongside Bently Nevada 3300 XL 8mm proximity probes and 3300/16 proximitor extension cables for shaft displacement monitoring. When executing a full bearing housing instrumentation upgrade, coordinating the replacement of both velocity and proximity channels in a single outage window minimizes total downtime and reduces the number of machine startups required for commissioning verification.

Power supply reliability within the 3500 rack is another migration consideration. The Bently Nevada 3500/15 Power Supply Module provides regulated DC power to all monitor modules in the rack. Aging power supplies with high operating hours are a common root cause of intermittent monitor faults that are incorrectly attributed to transducer failure. Replacing the power supply module as part of a rack-level refurbishment ensures that the new 190501-18-00-CN operates within its specified supply voltage range from day one.

Finally, for sites that require portable verification of transducer output prior to rack installation, the Bently Nevada 3500/94 System Display and Reset Module or a compatible handheld calibrator provides a convenient bench-test interface. Confirming the sensor’s sensitivity (typically 100 mV/mm/s ± 5%) before installation eliminates the risk of commissioning delays caused by a DOA unit — a particularly important step when the replacement is being executed during a short planned outage window.

Retrofit Guidance FAQ

Q: Can the 190501-18-00-CN be wired directly to the existing field cable without modification?
A: Yes. The Velomitor CT uses the same 2-pin MIL-C-5015 connector and the same polarity convention as the predecessor Velomitor XL models. No wiring modification, adapter, or junction box change is required. Verify cable shield continuity and insulation resistance before reconnecting.

Q: Will the replacement transducer require re-ranging or re-configuration of the 3500/42M monitor module?
A: In most cases, no. The 190501-18-00-CN shares the same nominal sensitivity (100 mV/mm/s) as the models it replaces. If the existing 3500/42M channel is configured for the correct transducer type and sensitivity, no software or hardware re-ranging is required. Confirm the channel configuration in the 3500 Configuration Software before startup.

Q: Is the physical mounting footprint identical to the legacy Velomitor XL?
A: Yes. The 190501-18-00-CN uses the same 1/4–28 UNF mounting thread and the same cylindrical stainless steel housing dimensions as the Velomitor XL series. No bracket modification, spacer, or adapter plate is required. The sensor can be installed in the existing tapped hole or mounting boss without machining.

Q: What communication protocol does this transducer use, and is it compatible with our DCS?
A: The Velomitor CT is an analog output device (4–20 mA or mV/mm/s, depending on the monitor module configuration). It does not use a digital fieldbus protocol. The signal is processed by the 3500/42M or 3500/42E monitor module, which then communicates with the plant DCS via the 3500/20 RIM using Modbus RTU or Ethernet/IP. No DCS configuration change is required for a like-for-like transducer replacement.

Q: How do I verify the replacement unit is functioning correctly before returning the machine to service?
A: After installation, perform a static sensitivity check using a calibrated shaker or the plant’s standard transducer verification procedure. Confirm that the 3500/42M channel reads within the expected OK voltage range (typically 11–14 VDC for a healthy Velomitor CT). Review the channel’s OK status in the 3500 Configuration Software and confirm no latched alarms are present before authorizing machine startup.

Q: What is the lead time and shipping arrangement for urgent replacements?
A: TOPNLMS maintains stock of the 190501-18-00-CN in Xiamen, China. Standard orders ship within 1–3 business days. Expedited air freight to most international destinations is available for urgent unplanned outage situations. Contact our team at [email protected] or +86 18359293191 to confirm availability and arrange priority dispatch.

Warranty Assurance

Every Bently Nevada 190501-18-00-CN Velomitor CT Velocity Transducer supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes electrical continuity verification, sensitivity measurement against the OEM specification (100 mV/mm/s ± 5%), connector integrity check, and housing inspection for mechanical damage. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund at the buyer’s election. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. For critical plant applications where a spare-on-shelf strategy is required, we recommend purchasing a backup unit alongside the primary replacement to eliminate lead-time risk during future unplanned outages.

Procurement documentation including test reports, country of origin certificates, and packing lists is available upon request for all orders. We support standard commercial invoice formats compatible with import clearance requirements in the EU, Southeast Asia, the Middle East, and South America.

For volume orders, framework agreements, or consignment stock arrangements, please contact our industrial sales team directly.
