Bently Nevada 190501-14-00-00 Velomitor CT Replacement

Product Overview

Bently Nevada 190501-14-00-00 Velomitor CT Replacement: Seamless Transition from Legacy Vibration Monitoring Systems

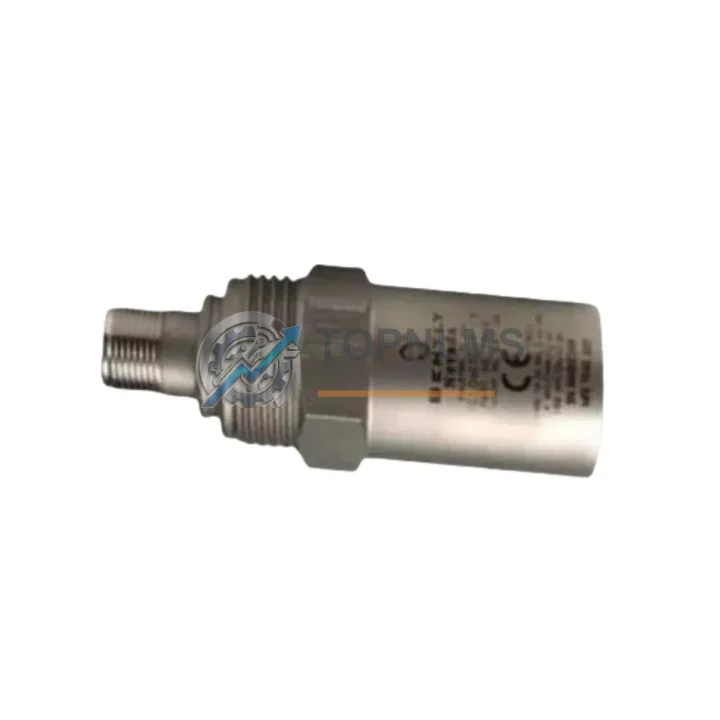

The Bently Nevada 190501-14-00-00 is a Velomitor CT Series piezo-velocity transducer engineered for continuous, high-reliability vibration monitoring on rotating machinery — including steam turbines, gas compressors, pumps, fans, and gearboxes. As legacy condition monitoring systems age and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain signal integrity, wiring compatibility, and system-level interoperability without triggering a full-scale instrumentation overhaul.

TOPNLMS stocks the 190501-14-00-00 as a direct drop-in replacement for facilities running Bently Nevada 3500 Series machinery protection systems, System 1 condition monitoring software, and legacy 7200 Series proximity systems that have been migrated to velocity-based measurement. Whether your existing installation uses the standard 2-pin MIL-C-5015 connector or a hardwired junction box termination, the 190501-14-00-00 maintains the same 100 mV/in/s sensitivity, ±0.5 in/s velocity range, and integrated signal conditioning that your 3500/20 rack-mounted monitors and 3500/42M position and velocity monitors are calibrated to accept.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a degraded or end-of-life vibration monitoring installation to a fully operational 190501-14-00-00 Velomitor CT system typically involves more than a single transducer swap. In practice, field engineers replacing worn or failed velocity transducers on a 3500 Series rack will simultaneously audit the condition of associated 330130-xx-xx armored extension cables, which route the low-level AC velocity signal from the machine casing to the junction box. Damaged cable shielding is a leading cause of noise injection that mimics real vibration events and triggers nuisance trips.

At the rack level, the 3500/42M position and velocity monitor card is the primary signal receiver for the 190501-14-00-00 output. If the monitor card itself shows calibration drift or intermittent channel faults, replacing the transducer alone will not resolve the alarm condition — the 3500/42M module should be bench-tested or swapped in parallel with the transducer replacement. Similarly, the 3500/20 rack power supply module should be verified to deliver stable 24 VDC to the transducer loop; a sagging supply rail will compress the output signal and produce false low-vibration readings.

For facilities transitioning from older electrodynamic (geophone-type) velocity sensors to the Velomitor CT piezo-velocity architecture, the signal conditioning difference is significant: the 190501-14-00-00 is an active, internally amplified device that requires DC excitation, whereas passive geophone sensors are self-generating. This means the 3500/22M monitor card — configured for passive velocity input — must be reconfigured or replaced with a 3500/42M card set to active velocity mode before the 190501-14-00-00 will produce valid readings. TOPNLMS can advise on card-level configuration during the pre-shipment consultation.

In installations where the 190501-14-00-00 is being added to an existing Bently Nevada 3500 rack that previously used 3300 XL 8mm proximity probes for radial vibration measurement, the migration path typically involves installing a new 3500/42M channel alongside the existing 3500/40M proximitor monitor. The two measurement technologies coexist in the same rack without conflict, allowing a phased migration where velocity-based casing measurement is added without removing the existing shaft relative displacement monitoring infrastructure.

Beyond the core transducer and monitor card, a complete retrofit bill of materials for a typical two-bearing turbine train will include: the 190501-14-00-00 Velomitor CT transducer (one per measurement plane), 330130-series armored extension cable cut to field length, a 3500/42M velocity and position monitor card, a 3500/01 rack with 3500/05 system monitor, and — where the plant uses System 1 software for trending and diagnostics — a verified communication path from the 3500 rack’s Ethernet gateway to the System 1 server. Signal isolators such as the Bently Nevada 3500/92 communication gateway or third-party DIN-rail signal conditioners may be required where the 3500 rack feeds a DCS analog input card that expects a 4–20 mA loop signal rather than the native voltage output of the Velomitor CT.

Retrofit Guidance FAQ

Q: Can I replace my existing Velomitor CT with the 190501-14-00-00 without rewiring?
A: Yes. The 190501-14-00-00 uses the same 2-pin MIL-C-5015 connector and the same 100 mV/in/s sensitivity as all standard Velomitor CT variants. Existing 330130 or 330180 extension cables connect directly. No rewiring, re-termination, or sensitivity rescaling is required at the monitor card.

Q: Will the 3500/42M monitor need to be reconfigured after the swap?
A: No, provided the outgoing unit was also a Velomitor CT (active piezo-velocity type). The 3500/42M channel configuration — sensitivity, full-scale range, alert and danger setpoints — remains valid. If you are migrating from a passive geophone sensor, the monitor card input type must be changed from passive to active velocity before commissioning.

Q: What communication protocols does the 3500 rack support when integrated with a DCS or SCADA system?
A: The Bently Nevada 3500 rack supports Modbus RTU/TCP, OPC DA/UA (via System 1 gateway), and 4–20 mA hardwired analog outputs from the monitor cards. The 190501-14-00-00 itself outputs a raw AC voltage signal; protocol conversion to Modbus or 4–20 mA occurs at the 3500/42M card or an external signal conditioner. No changes to the DCS communication configuration are required when replacing a like-for-like Velomitor CT unit.

Q: Is there a physical space concern when installing the 190501-14-00-00 on a machine with limited access?
A: The 190501-14-00-00 has an identical form factor to all standard Velomitor CT transducers. The 1/4-28 UNF stud mount and overall body dimensions are unchanged. No additional clearance or modified mounting bracket is required. For installations in confined bearing housings, the standard 330130 armored cable provides sufficient flexibility for routing.

Q: How do I verify the replacement unit is functioning correctly before returning the machine to service?
A: After installation, apply power to the 3500 rack and confirm the 3500/42M channel shows a valid OK status (green LED). With the machine at rest, the velocity output should read near zero (typically <0.01 in/s RMS). A calibrated shaker or a known-good reference transducer mounted adjacent to the 190501-14-00-00 can be used for functional verification. TOPNLMS ships each unit with a factory test report confirming output sensitivity within ±5% of the 100 mV/in/s nominal value.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen and ship within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority, with typical transit times of 3–7 business days to most destinations. Export documentation, including commercial invoice and packing list, is prepared to comply with customs requirements in the destination country.

Warranty Assurance

Every Bently Nevada 190501-14-00-00 Velomitor CT velocity transducer shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes: visual inspection of the connector, cable entry, and body for mechanical damage; electrical continuity and insulation resistance testing; and output sensitivity verification against the 100 mV/in/s nominal specification using a calibrated reference shaker. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund at the buyer’s election. Warranty claims are processed within 5 business days of receipt of the returned unit and a completed fault description. Return shipping costs for confirmed warranty defects are covered by TOPNLMS. Units damaged by incorrect installation, overvoltage, or mechanical impact are assessed on a case-by-case basis.

For time-critical plant situations where a spare unit is required immediately, TOPNLMS maintains a priority dispatch service. Contact our technical sales team before placing your order to confirm stock availability, export classification, and any destination-specific import requirements.

TOPNLMS serves reliability engineers, maintenance planners, procurement teams, and EPC contractors across the oil and gas, power generation, petrochemical, and heavy manufacturing sectors. Our inventory is sourced from authorized distribution channels and verified against OEM documentation. We do not ship counterfeit, refurbished-as-new, or unverified grey-market product.
