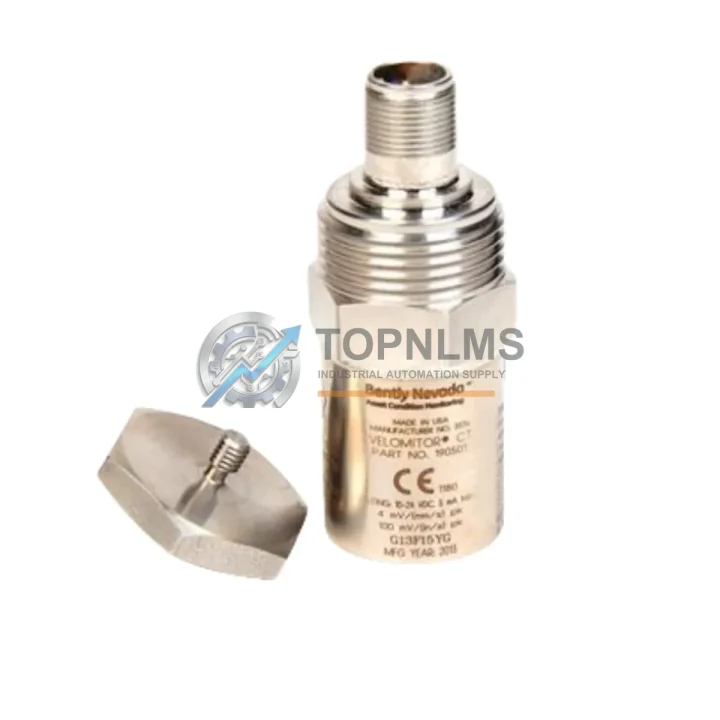

Bently Nevada 190501-13-99-01 Velomitor CT Upgrade Solution

Product Overview

Bently Nevada 190501-13-99-01 Velomitor CT Upgrade Solution: Seamless Transition from Legacy Vibration Monitoring Systems

The Bently Nevada 190501-13-99-01 is a Velomitor CT Series velocity transducer engineered for continuous, high-reliability vibration monitoring in rotating machinery applications — including turbines, compressors, pumps, motors, and gearboxes. As legacy condition monitoring systems age and OEM support windows close, facilities running older Bently Nevada 3300 Series or early 3500 Series monitoring racks increasingly face the challenge of sourcing compatible replacement sensors without triggering a full system overhaul.

This product page is designed to support engineers and procurement teams planning a controlled migration from discontinued or end-of-life velocity transducer configurations to the 190501-13-99-01 — with full attention to wiring compatibility, signal conditioning, mounting geometry, and system-level integration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the Bently Nevada 190501-13-99-01 rarely involves the transducer alone. In most field retrofit scenarios, the velocity transducer replacement is part of a broader condition monitoring system refresh. The following components are commonly addressed during the same maintenance window or upgrade project:

When the existing monitoring rack is a Bently Nevada 3500/42M Vibration Monitor or a 3500/46M Hydro Monitor, the 190501-13-99-01 integrates directly into the existing I/O channel without requiring reconfiguration of the monitor module — provided the channel is already configured for velocity input. If the rack includes a 3500/20 Power Supply module, verify that the DC bus voltage is within specification before commissioning the new transducer, as aging power supplies in long-running installations may exhibit voltage droop under load.

For installations where the legacy system used a Bently Nevada 3300/16 Velocity Monitor or similar 3300 Series rack-mounted module, the migration path typically involves replacing both the transducer and the monitor card. In these cases, the 3500/42M monitor module is the recommended upgrade target, and the 190501-13-99-01 is the corresponding field sensor. The 3500/05 System Rack provides the physical backplane for the new monitor cards and is backward-compatible with most existing cabinet cutouts, reducing panel modification work.

Wiring between the transducer and the monitor rack is routed through Bently Nevada armored extension cables (typically 330130-xx-xx series), which provide shielded, low-capacitance signal paths. If the existing cable runs are being reused, inspect the MIL-C-5015 connector terminations for corrosion and verify cable impedance before energizing the new transducer. In high-EMI environments — common in compressor halls and turbine buildings — replacing the cable simultaneously with the transducer is strongly recommended.

For facilities integrating the 3500 Series rack into a DCS or SCADA platform, the 3500/92 Communication Gateway module supports Modbus RTU, Modbus TCP, and OPC DA/UA protocols, enabling direct data handoff to control systems from vendors such as Emerson DeltaV, Honeywell Experion, or ABB 800xA without additional signal converters. If the existing architecture relies on a 3500/22M Transient Data Interface, confirm that the firmware version supports the velocity channel type used by the 190501-13-99-01 before finalizing the upgrade plan.

In applications where the transducer is mounted on equipment with limited access — such as vertical pump columns or enclosed gearboxes — a Bently Nevada proximity probe extension cable or a right-angle MIL connector adapter may be required to achieve proper cable routing without mechanical stress on the transducer body. These accessories are available as part of the same procurement package and can be specified at the time of order.

Retrofit Guidance FAQ

Q: Can the 190501-13-99-01 replace my existing velocity transducer without rewiring?
A: In most cases, yes. The 190501-13-99-01 uses a standard 2-pin MIL-C-5015 connector and 1/4-28 UNF stud mount, which matches the majority of Bently Nevada Velomitor-family installations. If your existing cable terminates in the correct connector type, the replacement is a direct swap. Verify the cable shield grounding scheme at the monitor rack end before reconnecting.

Q: Is reprogramming the 3500 Series monitor required after transducer replacement?
A: Not typically. If the replacement transducer has the same sensitivity (100 mV/in/s) and the monitor channel is already configured for velocity input, no parameter changes are required in System 1 or the 3500 rack configuration software. If the legacy transducer had a different sensitivity, update the full-scale range setting in the monitor module accordingly.

Q: What communication protocols does the 3500 Series support for integration with my DCS?
A: The 3500 Series supports Modbus RTU (RS-485), Modbus TCP/IP, and OPC DA/UA via the 3500/92 gateway module. For Profibus DP integration, a third-party gateway converter is required. Confirm your DCS vendor’s supported protocol list before specifying the gateway module.

Q: Will the 190501-13-99-01 fit in the same mounting location as my old transducer?
A: The Velomitor CT body dimensions are consistent across the 190501 series. The 1/4-28 UNF stud mount is standard. If the existing mounting pad was machined for a different thread size (e.g., M8), a stainless steel adapter bushing is required. Confirm the available clearance for the cable exit direction before ordering.

Q: Can I use this transducer with a non-Bently Nevada monitoring system?
A: Yes. The 190501-13-99-01 outputs a standard velocity signal (100 mV/in/s) compatible with any vibration monitor that accepts a passive velocity transducer input. Signal conditioning requirements vary by monitor manufacturer — consult the monitor’s input specification sheet to confirm compatibility.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen and ship within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority. Export documentation, including commercial invoice and packing list, is provided with every shipment. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every Bently Nevada 190501-13-99-01 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including output signal level check, connector integrity inspection, and housing seal assessment. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund at the customer’s discretion. Return shipping for confirmed defective units is covered by TOPNLMS. Warranty claims are processed within 5 business days of receipt of the returned unit. Our after-sales team is reachable via email and phone for technical support throughout the warranty period and beyond.

For procurement teams requiring documentation, we provide: commercial invoice, packing list, certificate of conformance (CoC), and — upon request — incoming inspection reports. All units are shipped in anti-static packaging with individual serial number tracking to support your asset management and maintenance records.

Bulk orders (5+ units) qualify for priority allocation, extended payment terms, and dedicated account management. Contact our sales team to discuss framework agreements for ongoing MRO supply.
