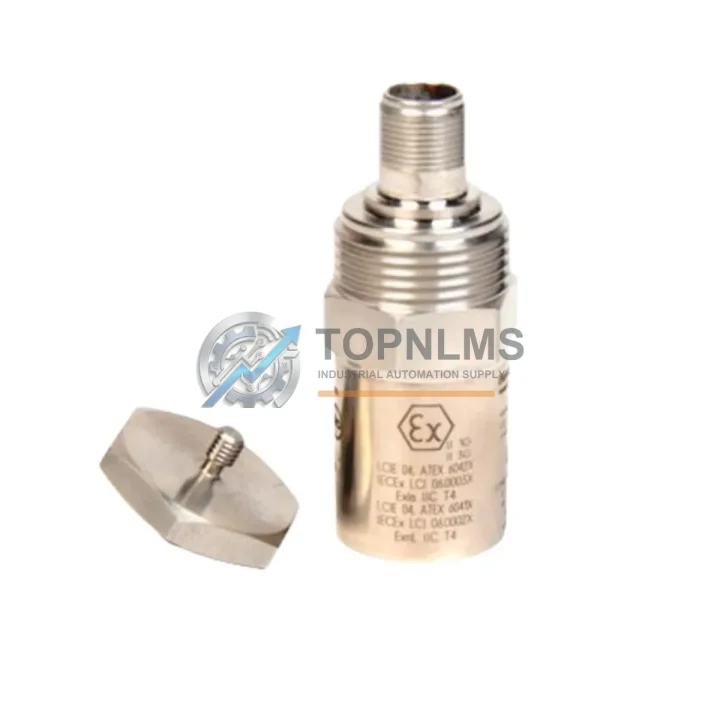

Bently Nevada 190501-02-00-CN Velomitor CT Upgrade Solution

Product Overview

Bently Nevada 190501-02-00-CN Velomitor CT Upgrade Solution: Seamless Transition from Legacy Vibration Monitoring Systems

When your existing Bently Nevada 190501-02-00-CN Velomitor CT Piezoelectric Velocity Transducer reaches end-of-service life or becomes difficult to source through standard channels, the migration path to a verified replacement must be carefully managed to avoid unplanned downtime, signal drift, or system reconfiguration costs. This product page is dedicated to engineers and procurement teams seeking a direct, specification-matched replacement or a validated upgrade solution for the 190501-02-00-CN within Bently Nevada’s Velomitor CT Series — one of the most widely deployed piezoelectric velocity transducers in rotating machinery protection and condition monitoring applications worldwide.

The Bently Nevada 190501-02-00-CN is a self-powered, internally amplified piezoelectric velocity transducer designed for continuous vibration monitoring on turbines, compressors, pumps, motors, and gearboxes. It outputs a velocity signal proportional to casing vibration, making it a critical front-end sensor in machinery protection systems built around the Bently Nevada 3500 Series Machinery Protection System, the 3300 Series, and legacy 7200 Series rack-based monitoring platforms. When this transducer fails or is discontinued, the downstream impact on your protection system’s alarm and trip logic can be immediate and severe.

Our replacement and upgrade solution for the 190501-02-00-CN is sourced from verified supply chains, tested against original factory specifications, and shipped with full documentation to support your site acceptance test (SAT) and commissioning records. Whether you are performing a like-for-like swap on a single measurement point or executing a broader retrofit of your vibration monitoring infrastructure, we provide the technical support and inventory depth to keep your project on schedule.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring setup to a fully operational replacement system rarely involves a single component. In most field scenarios, the 190501-02-00-CN Velomitor CT transducer is one element within a broader Bently Nevada machinery protection architecture. During the replacement or upgrade process, engineers frequently need to address adjacent components to ensure signal integrity, rack compatibility, and system-level performance.

For installations where the 190501-02-00-CN feeds into a Bently Nevada 3500/42M Velocity Monitor or a 3500/40M Proximitor/Seismic Monitor, the transducer swap is typically straightforward — the monitor’s input channel configuration does not require reprogramming when the replacement unit matches the original sensitivity specification. However, if the existing field wiring uses a Bently Nevada 3500/20 Rack Interface Module (RIM) or a 3500/15 Power Supply that is also approaching end-of-life, it is operationally efficient to address those components during the same maintenance window rather than scheduling a second outage.

In plants where the Velomitor CT transducer is mounted on equipment with high ambient temperature or chemical exposure, the interconnecting cable assembly — typically a Bently Nevada 330130 or 330140 Series Extension Cable — should be inspected and replaced if insulation degradation is detected. A compromised cable between the transducer and the monitor rack can introduce noise, signal attenuation, or false alarm conditions that are often misdiagnosed as transducer failure.

For facilities transitioning from older Bently Nevada 7200 Series or 3300 Series monitoring racks to the current 3500 platform, the 190501-02-00-CN replacement is often part of a broader I/O migration. In these projects, the Bently Nevada 3500/22M Transient Data Interface (TDI) and 3500/64M Process Variable Monitor are commonly added to expand the system’s diagnostic capability beyond simple velocity alarming into full waveform capture and process variable correlation. Procurement teams should plan for these modules when budgeting the retrofit.

Where the control cabinet layout requires signal conditioning before the velocity signal reaches a DCS or safety system, a signal isolator or barrier module — such as those from the MTL or P+F series commonly used alongside Bently Nevada front-end sensors — may be part of the bill of materials. Ensuring the replacement 190501-02-00-CN is tested against the barrier’s input impedance specification before installation prevents commissioning delays.

Finally, for sites that use a Bently Nevada System 1 Evolution software platform for online machinery diagnostics, the transducer replacement should be followed by a channel verification step within the System 1 configuration to confirm that the new sensor’s sensitivity coefficient is correctly entered and that alarm setpoints remain valid relative to the machine’s baseline vibration signature.

Retrofit Guidance FAQ

Q: Do I need to rewire the field junction box when replacing the 190501-02-00-CN?
A: No. The Velomitor CT series uses a standardized 2-pin connector and cable interface. A verified OEM-equivalent replacement uses the same connector pinout, so existing field wiring and junction box terminations remain unchanged. Confirm cable continuity and insulation resistance before reconnecting.

Q: Will the replacement transducer require reprogramming of the 3500 monitor?
A: Not if the replacement unit matches the original sensitivity specification (typically 100 mV/in/s or 4 mV/mm/s). The 3500/42M Velocity Monitor stores the transducer sensitivity as a configuration parameter. If the replacement sensitivity differs, update the channel configuration via Bently Nevada’s System 1 or 3500 Rack Configuration Software before returning the system to service.

Q: Is the 190501-02-00-CN compatible with both the 3500 and legacy 3300 Series racks?
A: Yes. The Velomitor CT’s analog output is compatible with the velocity input channels on both the 3500 and 3300 Series monitor racks. No hardware modification is required at the rack level for a like-for-like transducer replacement.

Q: How much physical space does the replacement transducer require?
A: The 190501-02-00-CN has a compact cylindrical body designed for stud-mount installation directly on the machine casing. The replacement unit maintains the same form factor, so no modification to the mounting pad, cable conduit, or control cabinet layout is required.

Q: Can the replacement unit be used in hazardous area (Ex) installations?
A: The standard 190501-02-00-CN is not intrinsically safe rated. If your installation is in a Zone 1 or Zone 2 hazardous area, verify the replacement unit’s certification status and use an appropriate Zener barrier or galvanic isolator in the signal loop. Contact our technical team for Ex-rated variant availability.

Q: What is the lead time and shipping arrangement?
A: In-stock units ship within 1–3 business days from Xiamen, China, via DHL Express or FedEx International Priority. Estimated transit time to most destinations is 3–7 business days. Expedited shipping is available for urgent plant maintenance requirements.

Warranty Assurance

Every 190501-02-00-CN replacement unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test to verify output sensitivity, connector integrity, and physical condition. Test records are available upon request and can be included with the shipment documentation to support your incoming inspection and site acceptance test procedures.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Defective units are eligible for replacement or credit at our discretion, subject to inspection. We do not require the customer to return the unit before initiating a replacement shipment for confirmed warranty cases, minimizing the impact on your plant availability.

Our procurement assurance package includes: pre-shipment functional testing, certificate of conformance (CoC) on request, commercial invoice and packing list for customs clearance, and full traceability documentation. For OEM-sourced units, factory test reports are available where applicable.

TOPNLMS maintains a standing inventory of Bently Nevada Velomitor CT Series components to support emergency replacement requirements. If you are building a spare parts inventory for a critical rotating machinery protection system, contact our team for volume pricing and consignment stock arrangements.
