Bently Nevada 18622-030-01 Replacement for 3300 XL Series

Product Overview

Bently Nevada 18622-030-01 Replacement for 3300 XL Series: Seamless Transition & Legacy System Upgrade

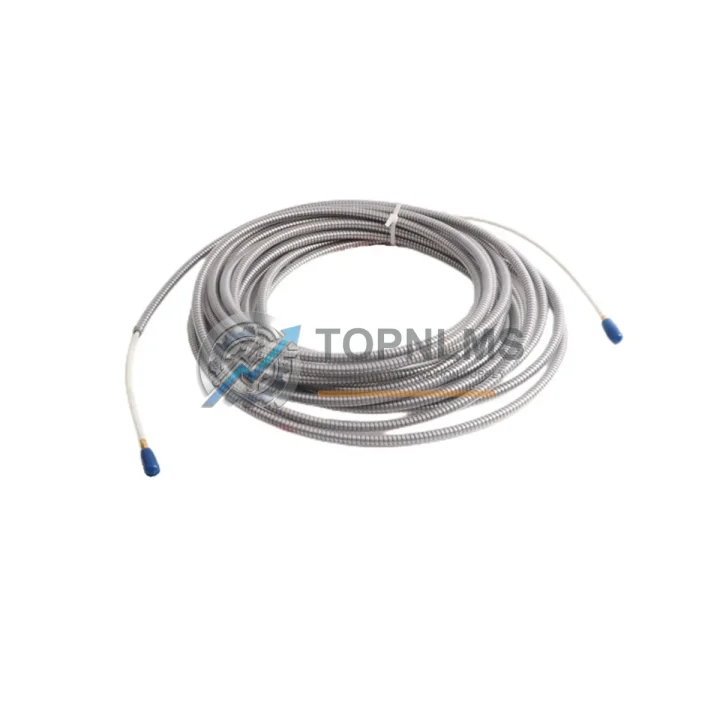

The Bently Nevada 18622-030-01 is a 30-foot (9-metre) proximity probe extension cable engineered for the 3300 XL Series condition monitoring platform. As legacy installations age and original cables reach end-of-service life, plant engineers face a critical decision: source a direct replacement that preserves existing wiring topology, or risk extended downtime by retrofitting incompatible third-party alternatives. This listing addresses that challenge directly — offering a specification-matched replacement that slots into your existing 3300 XL rack architecture without re-engineering the signal chain.

The 18622-030-01 extension cable bridges the proximity probe (typically an 3300 XL 8 mm or 11 mm probe such as the 330780-50-00 or 330730-040-00-00) to the proximitor/oscillator driver module mounted in the 3500 or 3300 rack. Its 30 ft length is the most common field-installed run length for turbine bearing pedestals, compressor trains, and pump skids where the probe is located at a distance from the control cabinet. The cable’s characteristic impedance, capacitance per foot, and connector termination are factory-matched to the Bently Nevada signal conditioning chain, ensuring the eddy-current measurement loop remains within calibrated tolerance without field re-calibration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL or 3500 Series migration rarely involves a single component. In practice, plant maintenance teams replacing the 18622-030-01 extension cable are simultaneously addressing adjacent components that share the same service interval or have reached end-of-life alongside the cable. The following components are commonly replaced or upgraded in the same work order:

The Bently Nevada 330780-50-00 proximity probe (8 mm, 5-metre integral cable) is the most frequent companion replacement. When the extension cable shows signal degradation, the probe tip is typically inspected at the same time — and if the probe has accumulated bearing rub marks or connector corrosion, replacing both in a single outage window eliminates a second planned shutdown. Similarly, the Bently Nevada 330730-040-00-00 (11 mm probe, 1-metre integral cable) is common on larger turbine applications where the bearing clearance demands a wider sensing range.

On the rack side, the Bently Nevada 3500/42M proximitor I/O module and the 3500/44M position monitor module are the primary signal receivers for the extension cable output. If the 3500 rack is being modernised as part of a broader DCS migration — for example, moving from a legacy Honeywell TDC 3000 or Emerson Ovation platform to a current-generation controller — the I/O module firmware and channel configuration must be verified against the new cable’s signal characteristics. In most cases, the 18622-030-01 replacement passes this verification without parameter changes.

Power supply integrity is equally important. The Bently Nevada 3500/15 power supply module provides the regulated −24 VDC bias voltage that drives the eddy-current measurement loop through the extension cable. A failing power supply can mimic cable faults on the DCS historian, leading to misdiagnosis. Replacing the power supply and extension cable together during a planned outage is a recognised best practice in rotating equipment reliability programmes.

For installations where the control cabinet is being relocated or the cable routing is being redesigned, the Bently Nevada 3300 XL junction box and associated 3300 XL barrier isolators may also require replacement to maintain intrinsic safety certification in Zone 1 or Zone 2 hazardous areas. The 18622-030-01 replacement is compatible with standard IS barrier configurations without modification to the barrier’s entity parameters.

Finally, where the plant is transitioning from serial Modbus RTU communication to Ethernet-based Modbus TCP or OPC-UA for integration with a modern SCADA or DCS, the Bently Nevada 3500/92 communication gateway module handles protocol conversion within the existing 3500 rack — allowing the physical sensor chain (probe + extension cable + proximitor) to remain unchanged while the supervisory layer is modernised.

Retrofit Guidance FAQ

Q: Can I replace the 18622-030-01 without re-calibrating the entire measurement loop?
A: Yes. The replacement cable is impedance-matched to the OEM specification. Provided the probe and proximitor module are within their calibrated range, no loop re-calibration is required after cable replacement. A static gap voltage check at the proximitor output is recommended as a post-installation verification step.

Q: Is the connector pinout identical to the original Bently Nevada cable?
A: Yes. The push-pull MIL-spec coaxial connectors at both the probe end and the proximitor end are pin-for-pin compatible with the original 18622-030-01. No adapter, pigtail, or re-termination is required.

Q: Will this cable work with both the 3300 XL and 3500 Series racks?
A: Yes. The 18622-030-01 is designed for use across the 3300 XL and 3500 Series platforms. It is compatible with 3500/42M, 3500/44M, and 3500/46M I/O modules without modification.

Q: What communication protocols are supported downstream of this cable?
A: The cable itself is a passive analogue signal conductor. Downstream protocol support (Modbus RTU, Modbus TCP, PROFIBUS DP, OPC-UA) is determined by the rack’s communication module (e.g., 3500/92). Replacing the extension cable has no effect on the communication protocol configuration.

Q: Does the cable fit standard conduit and cable tray installations?
A: Yes. The outer diameter and minimum bend radius of the replacement cable match the original, so no conduit re-sizing or tray modification is required. The 30 ft length accommodates the most common turbine and compressor pedestal-to-cabinet distances without field splicing.

Q: What if my existing probe is a different integral cable length?
A: The extension cable length (30 ft / 18622-030-01) is independent of the probe’s integral cable length. Bently Nevada’s system calibration accounts for the combined cable length (integral + extension). Verify the total system cable length against the proximitor’s calibrated range before installation.

Q: Can this replacement be used in hazardous area (ATEX / IECEx) installations?
A: The cable is compatible with standard IS barrier configurations used in Zone 1 and Zone 2 installations. Confirm the barrier entity parameters (Ui, Ii, Pi) against the cable’s capacitance and inductance values before installation in certified hazardous areas.

Warranty Assurance

Every 18622-030-01 extension cable shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes continuity testing, connector integrity inspection, and impedance verification to confirm compliance with the 3300 XL system specification. If a defect is identified within the warranty period, TOPNLMS will arrange a replacement shipment or issue a full refund — whichever the customer prefers — with no return freight cost to the buyer.

Stock is held in Xiamen and is available for same-day dispatch on orders confirmed before 15:00 CST. Standard international shipping transit times are 5–10 business days via DHL Express or FedEx International Priority. Expedited options are available on request. A packing list, test report, and commercial invoice are included with every shipment to support customs clearance and plant maintenance records.

For urgent replacement requirements, technical compatibility questions, or volume pricing on multi-unit orders, contact the TOPNLMS procurement team directly:

📧 [email protected] | 📞 +86 18359293191
