Bently Nevada 16925-10 Original Industrial Spare 3300 Compatible

Product Overview

Bently Nevada 16925-10 Original Industrial Spare 3300 Compatible: System Stability and Maintenance Value

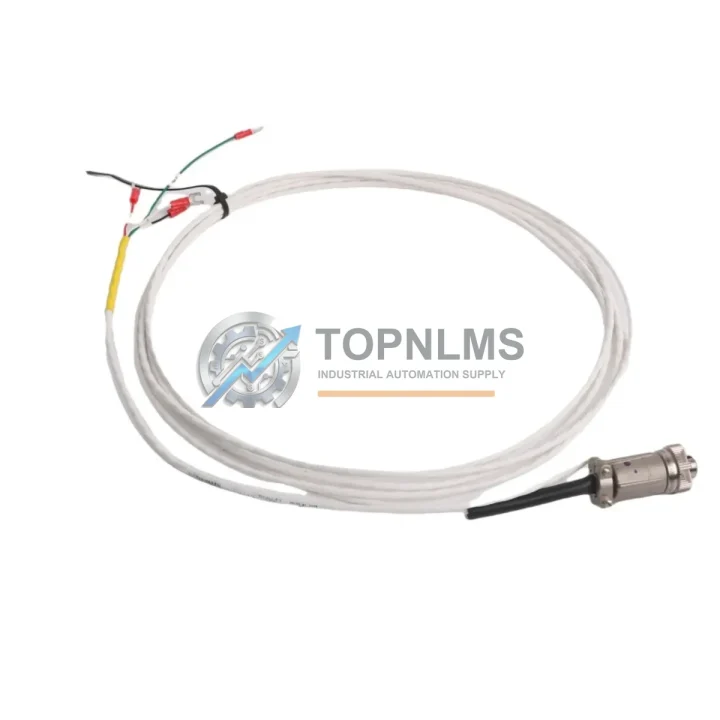

The Bently Nevada 16925-10 is a factory-original coaxial extension cable engineered for use within the 3300 and 7200 Series proximity probe systems — the industry benchmark for continuous shaft vibration and position monitoring in rotating machinery. Whether you are managing a planned turnaround, responding to an unscheduled shutdown, or building a strategic spare-parts inventory for a critical asset, the 16925-10 represents one of the highest-value, lowest-risk replacement components in your condition monitoring cabinet.

Proximity probe systems are the first line of defense against catastrophic bearing failure, rotor instability, and unplanned downtime in turbines, compressors, pumps, and generators. The extension cable is the signal-carrying link between the probe tip and the Proximitor sensor — and its integrity is non-negotiable. A degraded or counterfeit cable introduces signal noise, offset errors, and false alarms that can mask real faults or trigger unnecessary trips. Sourcing an original Bently Nevada 16925-10 eliminates that risk entirely.

Critical Technical Specs

Preventive Maintenance Strategy

When a 16925-10 extension cable is flagged for replacement — whether due to connector wear, jacket cracking from thermal cycling, or signal drift identified during a calibration check — experienced maintenance engineers treat the event as a trigger for a broader system audit. The proximity probe loop is a three-component chain: the probe (such as the 330101-00-06-10-02-00 or 330103 series), the extension cable (16925-10), and the Proximitor sensor (3300 XL 8mm or 3300 NSv). Replacing only the cable without verifying the probe tip gap and Proximitor output voltage is an incomplete repair.

During the same maintenance window, it is best practice to inspect the 3300/16 Rack Monitor or 3500/42M Proximitor I/O Module for any indication of channel faults or calibration drift. If the machine is a steam turbine or centrifugal compressor, the keyphasor probe cable — often a 330130 series — should be checked simultaneously, since keyphasor signal quality directly affects phase-referenced vibration analysis. Technicians should also verify the integrity of the 3300/20 Rack Interface Module connections and confirm that terminal strip wiring within the monitoring cabinet shows no signs of oxidation or loose terminations.

For facilities running extended asset life programs on older 7200 Series installations, it is advisable to stock at minimum one spare 16925-10 per monitored bearing pair, alongside a matched 7200 Series Proximitor sensor and the corresponding probe. Pairing the cable replacement with an inspection of the 3500 Rack power supply module (3500/15 or 3500/05) and the communication gateway (3500/92 or 3500/93) ensures that the monitoring system as a whole is returned to full operational confidence — not just the cable loop.

In high-vibration environments such as reciprocating compressors or large ID fans, the armored conduit protecting the 16925-10 should be inspected for chafing or crush damage. At the same time, review the condition of any signal isolators or barriers installed between the Proximitor output and the DCS input card, as these components are often overlooked during routine cable replacements but are equally subject to drift and degradation over time.

Strategic Replacement Solutions

The 16925-10 is a direct, plug-compatible replacement for any 10-foot coaxial extension cable in the Bently Nevada 3300 and 7200 proximity probe ecosystems. No recalibration of the Proximitor sensor is required when replacing a like-for-like cable of the same length, provided the probe gap is re-verified after installation. This makes the 16925-10 one of the fastest field-replaceable units in the vibration monitoring loop — a critical advantage when a machine is on a timed outage window.

For facilities transitioning from legacy 7200 Series installations to the current 3300 XL platform, the 16925-10 remains compatible across both generations, protecting your existing cable infrastructure investment while you phase in updated Proximitor sensors and rack monitors. This backward compatibility significantly reduces the total cost of a system upgrade and allows maintenance teams to prioritize the highest-risk components first.

All units supplied by TOPNLMS are sourced from authorized channels, individually inspected prior to dispatch, and shipped with full traceability documentation. Each 16925-10 is covered by a 12-month warranty against manufacturing defects, giving procurement teams the confidence to stock forward without risk. Lead times are typically 1–3 business days for in-stock units, with express international shipping available to minimize exposure during unplanned outages.

Support FAQ

Q1: Can the 16925-10 be used with both 3300 and 7200 Series Proximitor sensors?
Yes. The 16925-10 coaxial extension cable is designed to be compatible with both the 3300 and 7200 Series proximity probe systems. Always verify that the total cable system length (probe + extension) matches the Proximitor sensor’s calibrated range for accurate gap voltage readings.

Q2: How do I verify the cable is functioning correctly after installation?
After installation, measure the DC output voltage at the Proximitor sensor with the probe at the correct gap distance (typically –10 VDC at the calibrated gap for most 3300 Series probes). A reading outside the expected range indicates a wiring issue, incorrect gap, or a faulty component in the loop. Compare against the original calibration record for the channel.

Q3: What is your warranty policy and what does it cover?
All 16925-10 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested and inspected before dispatch. Warranty claims are processed promptly with replacement or refund options.

Q4: Do you stock other Bently Nevada 3300 Series components for combined orders?
Yes. TOPNLMS maintains inventory of a wide range of Bently Nevada 3300 and 3500 Series components including Proximitor sensors, rack monitors, power supply modules, keyphasor probes, and I/O modules. Combined orders are welcome and can reduce shipping costs and lead times for planned maintenance events. Contact us for availability and volume pricing.
