Bently Nevada 136634-0010-01 Original Industrial Spare 3300 Compatible: System Stability and Vibration Monitoring Continuity

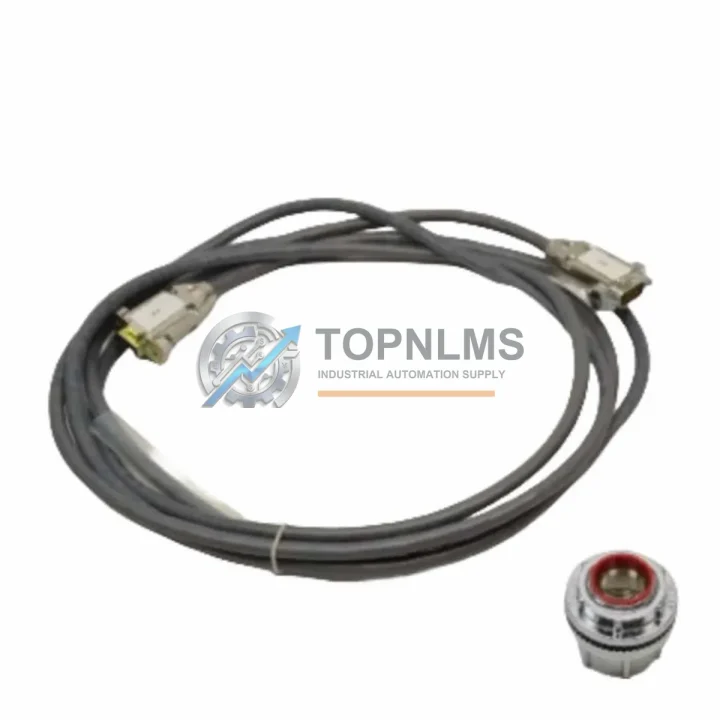

The Bently Nevada 136634-0010-01 is an original 10-foot (3-meter) Proximitor extension cable engineered for use within the Bently Nevada 3300 and 3500 Series machinery protection and condition monitoring systems. In rotating machinery environments — turbines, compressors, pumps, and generators — the integrity of the proximitor signal chain is foundational to accurate vibration and position measurement. A degraded or failed extension cable introduces signal noise, measurement drift, and ultimately false trips or missed fault detection, all of which carry severe operational and safety consequences.

At TOPNLMS, we supply the 136634-0010-01 as a genuine original spare, fully tested prior to shipment and backed by a 12-month warranty. Our inventory is maintained to support both emergency breakdown replacements and planned preventive maintenance programs, ensuring your procurement team can act decisively when a maintenance window opens or an unplanned outage demands immediate response.

Critical Technical Specs

Preventive Maintenance Strategy

The 136634-0010-01 extension cable sits at the heart of the proximitor measurement loop: probe → extension cable → proximitor/driver → monitoring rack. When planning a scheduled outage or a condition-based maintenance intervention, experienced reliability engineers treat the entire signal chain as a single replaceable assembly rather than isolating individual components. This approach minimizes diagnostic time and eliminates the risk of re-introducing a marginal component after a partial repair.

During a turbine or compressor overhaul, while the 136634-0010-01 extension cable is being inspected or replaced, it is best practice to simultaneously verify the condition of the companion Bently Nevada 330130-080-00-00 proximity probe and the 330180-X1-05 proximitor/driver mounted in the field junction box. These three components form an interdependent measurement system; replacing only the cable while leaving an aged probe or a drifting proximitor in service defeats the purpose of the maintenance event.

At the rack level, the Bently Nevada 3500/42M Proximitor I/O Module receives the conditioned signal. If the I/O module’s input channel shows elevated noise or calibration offset after cable replacement, the module itself should be evaluated. Keeping a spare 3500/42M or its predecessor 3300/16-channel monitor card in your on-site critical spares inventory prevents a single card failure from extending a planned outage into an unplanned one.

Power supply integrity is equally critical. The Bently Nevada 3500/15 Power Supply Module feeds the monitoring rack; a marginal power supply can manifest as intermittent proximitor faults that are incorrectly attributed to cable or probe issues. Including the 3500/15 in your annual rack inspection checklist eliminates this diagnostic ambiguity. Similarly, the 3500/20 Rack Interface Module (RIM) governs communication between the monitoring rack and the plant DCS or historian — a failed RIM can mask real vibration events or generate spurious alarms, so its firmware version and hardware health should be confirmed during any rack-level maintenance.

For plants running Bently Nevada systems integrated with a GE Mark VI or Mark VIe turbine control system, the I/O terminal boards — particularly the VCMI, VTUR, or VPRO boards — should be cross-checked during the same maintenance window. Vibration trip logic often spans both the Bently Nevada protection rack and the turbine controller, and a discrepancy between the two systems’ setpoints or signal scaling can produce nuisance trips after a cable replacement if the loop calibration is not re-verified end-to-end.

Field wiring terminations at the junction box terminal strips and the cable tray entry points are common failure sites in high-vibration or high-temperature environments. Inspecting and re-torquing terminal connections, replacing any corroded coaxial BNC adapters, and verifying cable tray grounding continuity are low-cost steps that significantly extend the service life of the newly installed 136634-0010-01. Where cable runs pass through areas with elevated electromagnetic interference — near variable-frequency drives or large motor starters — confirming that the cable shield is grounded at one end only (per Bently Nevada installation guidelines) prevents ground loops that degrade signal quality.

Strategic Replacement Solutions

The Bently Nevada 3300 and 3500 Series platforms have been deployed in critical rotating machinery applications for decades, and many plants continue to operate these systems well beyond their original design life. The 136634-0010-01 extension cable is a direct, drop-in replacement for worn or damaged cables in existing installations, requiring no modification to the probe, proximitor, or monitoring rack. This preserves the original system calibration and avoids the re-engineering cost associated with migrating to a different measurement platform.

For plants managing aging infrastructure, maintaining a buffer stock of 136634-0010-01 cables — typically two to four units per critical machine train — is a cost-effective strategy. The cable’s relatively low unit cost compared to the downtime cost of a single unplanned outage makes it an ideal candidate for consignment or on-site stocking agreements. Our team at TOPNLMS can support blanket purchase orders and staged delivery schedules to align with your annual maintenance budget cycles.

When a legacy 3300 Series system is being upgraded to the 3500 platform, the 136634-0010-01 cable is typically reusable if it passes a continuity and insulation resistance test, reducing upgrade material costs. This compatibility across generations is a deliberate design feature of the Bently Nevada ecosystem and is one of the key reasons plant engineers specify original Bently Nevada cables rather than generic coaxial alternatives, which may not meet the impedance and capacitance specifications required for accurate eddy-current measurement.

Support FAQ

Q1: Is the 136634-0010-01 compatible with both the 3300 and 3500 Series monitoring systems?
Yes. The 136634-0010-01 is designed for use across the Bently Nevada 3300 and 3500 Series platforms. It is part of the standard Bently Nevada proximity measurement system (probe + extension cable + proximitor) and maintains the electrical characteristics required by both rack generations. Always verify the total system cable length (probe + extension) against the proximitor’s specified range before installation.

Q2: What pre-shipment testing does TOPNLMS perform on this cable?
Every 136634-0010-01 unit shipped from TOPNLMS undergoes continuity testing, connector integrity inspection, and visual inspection of the cable jacket and shielding. Units that do not meet our quality criteria are quarantined and not dispatched. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should I validate compatibility before installing a replacement cable in the field?
Confirm the part number on the existing cable label matches 136634-0010-01. Measure the total cable run (probe cable + extension cable) and verify it falls within the proximitor’s specified range (typically 5m or 9m total, depending on the proximitor model). After installation, perform a static calibration check using a Bently Nevada calibration fixture or a precision gap-setting tool before returning the machine to service.

Q4: What is your lead time and can I place a standing order for critical spares?
In-stock units typically ship within 1–3 business days. For critical spares programs, TOPNLMS supports blanket orders and scheduled releases to align with your plant’s annual maintenance calendar. Contact our team at [email protected] or +86 18359293191 to discuss stocking agreements and volume pricing.
