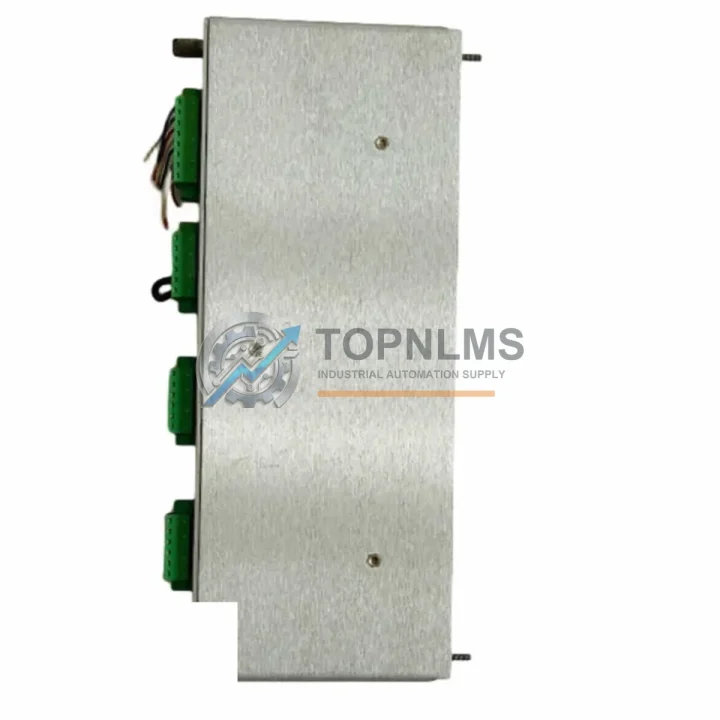

Bently Nevada 133442-01 Ruggedized Keyphasor I/O Module

Product Overview

Bently Nevada 133442-01 Ruggedized Keyphasor I/O Module for Harsh Environments

The Bently Nevada 133442-01 is a precision-engineered Keyphasor I/O Module designed for the 3500 Series Machinery Protection System. Built to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive rotating machinery installations — this module delivers the signal integrity and timing accuracy that mission-critical machinery protection demands. Whether deployed in a petrochemical plant, offshore platform, power generation facility, or heavy metallurgical operation, the 133442-01 provides the phase reference signal conditioning that underpins reliable vibration analysis, speed measurement, and machinery health monitoring across the entire 3500 rack system.

Rugged Specifications Table

Comprehensive Protection Solutions

The 133442-01 Keyphasor I/O Module does not operate in isolation — it is the timing backbone of a complete machinery protection architecture. In a typical 3500 rack deployment, it works in concert with the Bently Nevada 3500/42M Proximitor Seismic Monitor to correlate shaft vibration data with precise rotational phase references, enabling accurate 1X and 2X vector analysis for imbalance and misalignment detection. Alongside the 3500/22M Transient Data Interface, the 133442-01 provides the phase trigger signal essential for capturing startup and coastdown transient data — critical for turbine and compressor health trending.

In control cabinet environments where the 3500 rack is integrated with a Siemens S7-400 PLC or a Honeywell Experion DCS via Modbus or PROFIBUS, the Keyphasor signal from the 133442-01 is used to synchronize process control decisions with real-time machinery state. The 3500/20 Rack Power Supply and 3500/15 Power Supply Module provide the stable DC bus that the 133442-01 and all co-resident monitor cards depend on — making power supply integrity a prerequisite for reliable Keyphasor operation.

For I/O expansion and field wiring, the Bently Nevada 3500/92 Communication Gateway Module and 3500/93 Data Manager aggregate Keyphasor-referenced vibration data for transmission to plant historians and condition monitoring platforms. Terminal modules such as the 3500 I/O Module Terminal Block provide the field-side connection points for eddy-current probes and magnetic pickup sensors feeding the 133442-01 inputs. In safety-instrumented system (SIS) architectures, the Keyphasor signal may also interface with Triconex Safety Controllers or HIMA HIMatrix safety modules to trigger protective shutdown sequences based on overspeed or phase anomaly conditions. Across all these integration points, the 133442-01 remains the authoritative phase reference — its signal quality directly determines the accuracy of every downstream protection and diagnostic function in the system.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the Bently Nevada 133442-01 is routinely installed in compressor trains, gas turbine packages, and centrifugal pump skids operating in ATEX Zone 2 or NEC Class I Division 2 classified areas. The module’s robust signal conditioning tolerates the electromagnetic interference generated by variable frequency drives (VFDs) and high-current motor starters common in these environments, ensuring that Keyphasor phase data remains clean and unambiguous even under heavy electrical loading.

In coal-fired and combined-cycle power generation plants, the 133442-01 is a standard component in steam turbine and gas turbine protection racks, where it provides the once-per-revolution reference signal used by the 3500 system to compute shaft eccentricity, differential expansion, and rotor bow — parameters that directly govern turbine start-up clearance decisions. Unplanned turbine trips caused by corrupted Keyphasor signals can cost operators hundreds of thousands of dollars per hour in lost generation; the 133442-01’s proven signal integrity makes it a non-negotiable reliability component.

In mining and mineral processing, where ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust ingress, mechanical shock, and continuous vibration, the 133442-01’s rack-mount form factor and backplane power architecture isolate it from the worst of the field environment. Its compatibility with both eddy-current and magnetic pickup sensor types gives maintenance engineers flexibility in sensor selection based on shaft material and access constraints. In water and wastewater treatment facilities, the module supports continuous monitoring of large vertical turbine pumps and blower trains, where early detection of bearing wear or impeller imbalance prevents catastrophic failures in infrastructure that cannot tolerate extended downtime.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 133442-01?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to Bently Nevada 3500 Series specifications within the warranty period, we will repair or replace the unit at no charge. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q2: How is the 133442-01 tested before shipment?
Every unit undergoes a multi-point functional verification process prior to dispatch. This includes power-on self-test validation, Keyphasor input channel signal conditioning verification, and backplane communication integrity checks using 3500 Series rack test equipment. Refurbished units additionally undergo a full cleaning, visual inspection, and component-level assessment. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 133442-01 compatible with all 3500 Series rack configurations?
Yes. The 133442-01 is designed for universal compatibility across the Bently Nevada 3500 rack family, including 4-slot, 8-slot, and 14-slot chassis configurations. It is backward compatible with legacy 3500 rack revisions and can coexist with 3500/42M, 3500/22M, 3500/40M, and 3500/50M monitor modules in the same rack. For mixed-generation architectures involving older 3300 Series signal conditioners, consult our technical team for interface compatibility confirmation.

Q4: Can you support long-term supply and emergency replacement requirements?
Yes. We maintain standing inventory of the 133442-01 and key 3500 Series companion modules to support both planned maintenance schedules and emergency breakdown replacements. For facilities with critical spare parts programs, we can provide reserved stock arrangements and priority dispatch commitments. Contact our team at [email protected] or +86 18359293191 to discuss long-term supply agreements.
