Bently Nevada 130539-30 Original Industrial Spare 3300 Compatible

Product Overview

Bently Nevada 130539-30 Original Industrial Spare 3300 Series Compatible: System Stability & Vibration Monitoring Continuity

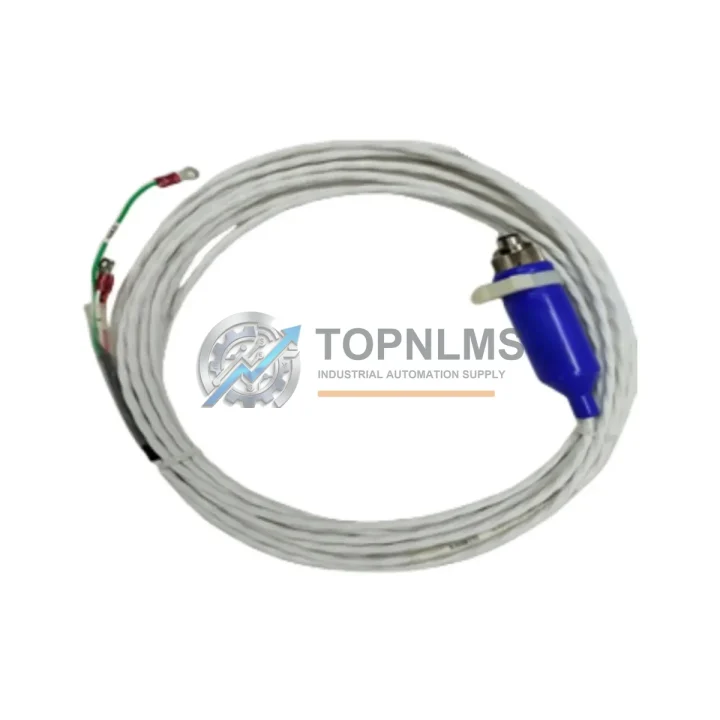

The Bently Nevada 130539-30 is an original proximity transducer interconnect cable engineered specifically for the 3300 Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. This cable forms the critical signal path between the proximity transducer probe and the extension cable or monitor module, carrying the raw eddy-current displacement signal that your machinery protection system depends on for real-time shaft vibration, axial position, and eccentricity measurement. When this cable degrades or fails, the entire measurement chain is compromised — triggering false alarms, masking genuine faults, or causing a protective shutdown that halts production.

For maintenance engineers managing gas turbines, steam turbines, compressors, pumps, and gearboxes instrumented with Bently Nevada 3300 Series hardware, having a verified original 130539-30 interconnect cable on the shelf is not optional — it is a fundamental element of any credible machinery protection spare-parts strategy. The 30-foot (approximately 9-metre) cable length makes it the most commonly specified variant for standard turbine pedestal and compressor skid installations, where the transducer probe is mounted at the bearing housing and the signal must reach a junction box or monitor rack without signal attenuation or impedance mismatch.

Critical Technical Specs

Preventive Maintenance Strategy

The interconnect cable is the most mechanically stressed component in the 3300 Series transducer chain. Unlike the probe tip or the monitor module — which remain largely static once installed — the interconnect cable is routed through cable trays, conduit bends, and vibrating machinery structures. Over time, repeated thermal cycling, mechanical vibration, and exposure to lubricating oil or cleaning solvents cause the cable jacket to harden, the shield braid to develop micro-fractures, and the connector contacts to oxidize. The result is a gradual increase in signal noise floor that is often misattributed to bearing wear or rotor imbalance before the cable is identified as the root cause.

During any scheduled outage or annual machinery inspection, technicians should treat the 130539-30 replacement as part of a complete transducer chain audit. Begin by inspecting the Bently Nevada 3300 XL proximity probe at the bearing housing — check the probe tip for mechanical damage, verify the gap voltage is within the –10 to –18 VDC linear range, and confirm the probe body has not loosened in its mounting bracket. Next, inspect the 3300 Series extension cable (typically a 5-metre or 9-metre armored extension) that connects the probe to the interconnect cable junction: look for jacket cracking at conduit entry points and verify connector seating at both ends.

At the monitor rack, pull the relevant 3500/40M or 3500/42M monitor module and inspect the input connector for corrosion or bent pins. A corroded monitor input can produce the same symptom as a failed interconnect cable — elevated noise or a static gap voltage reading — so both components should be evaluated before condemning either. While the rack is accessible, verify that the 3500/20 rack power supply module is delivering stable –24 VDC to the transducer bias circuit; a sagging bias supply is a known cause of apparent transducer sensitivity drift.

For facilities running multiple measurement points on a single compressor or turbine train, it is cost-effective to stock interconnect cables in matched sets. A typical two-bearing compressor with X-Y vibration and axial position measurement requires six to eight interconnect cables; replacing all of them during a major overhaul eliminates the risk of a cable failure triggering an unplanned shutdown between scheduled maintenance intervals. Pair the cable replacement with a calibration check of the 3500/72M temperature monitor module if thermocouple or RTD inputs share the same rack — thermal measurement drift is frequently discovered during vibration system audits.

If your facility uses a Bently Nevada 3500/22M transient data interface or a System 1 condition monitoring software node, verify that the software is receiving clean waveform data after the cable replacement by reviewing the spectrum and waveform plots for the affected measurement points. A successful cable swap should produce a measurable reduction in the broadband noise floor visible in the direct vibration spectrum. Finally, update your spare-parts register to include one 130539-30 per two installed cables as a minimum cold-spare ratio, and schedule replenishment annually to maintain warranty coverage on the spares inventory.

Strategic Replacement Solutions

The 130539-30 is the standard 30-foot interconnect cable for the Bently Nevada 3300 Series system, which has been in continuous production and field deployment for decades. Many facilities operating legacy turbomachinery installed in the 1990s and 2000s still rely on 3300 Series hardware that is no longer in active production but remains fully supported through original spare parts. For these sites, sourcing a verified original 130539-30 — rather than an uncertified aftermarket substitute — is critical: the eddy-current measurement chain is a precision impedance-matched system, and a cable with incorrect impedance, inadequate shielding, or non-standard connector geometry will introduce measurement errors that can compromise machinery protection integrity.

For maintenance teams managing end-of-life 3300 Series installations where the original cable has been discontinued from the primary distribution channel, TOPNLMS maintains verified original stock with full traceability. Each unit is functionally tested before shipment to confirm connector continuity, shield integrity, and insulation resistance. The 12-month warranty provides procurement confidence for both immediate replacement needs and strategic inventory builds.

Facilities transitioning from 3300 Series to the newer 3500 Series platform should note that the 3500 system uses a different transducer chain architecture; however, during the transition period — when both systems coexist in the same plant — maintaining a stock of 130539-30 cables for the legacy 3300 measurement points is essential to avoid a single-point-of-failure gap in machinery protection coverage. A trained technician can complete a cable swap in under 20 minutes per measurement point, making the 130539-30 one of the highest-value, lowest-MTTR spares in the rotating equipment maintenance toolkit.

Support FAQ

Q1: What warranty does the 130539-30 carry, and what does the pre-shipment test include?
Each 130539-30 carries a 12-month warranty covering manufacturing defects from the date of shipment. Pre-shipment testing includes connector continuity verification, shield-to-conductor insulation resistance measurement, and visual inspection of both factory-terminated connectors. Units that fail any test criterion are quarantined and not dispatched.

Q2: How do I confirm the 130539-30 is compatible with my existing 3300 Series installation?
The 130539-30 is the standard interconnect cable for all Bently Nevada 3300 Series proximity transducer systems using 8 mm, 11 mm, and 14 mm XL probes with standard MIL-spec coaxial connectors. Provide your probe model number and monitor module type when contacting us — our technical team will confirm compatibility and advise on any installation-specific considerations such as conduit routing or connector orientation.

Q3: Can the 130539-30 be installed as a direct drop-in replacement without recalibrating the monitor?
In most cases, yes. Because the 130539-30 is an original Bently Nevada cable with matched impedance characteristics, replacing a failed cable of the same part number does not require recalibration of the monitor module. After installation, verify the gap voltage at the monitor input is within the specified linear range (–10 to –18 VDC) and confirm the direct vibration reading is stable before returning the machine to service.

Q4: What is the recommended spare inventory ratio for the 130539-30?
For facilities with up to 10 installed cables, we recommend maintaining a minimum of two cold spares on-site. For larger installations — multi-train plants with 20 or more measurement points — a ratio of one spare per five installed cables is a practical starting point. Given the 12-month warranty on spares stock and the critical role of the interconnect cable in machinery protection continuity, annual replenishment aligned with your scheduled outage calendar is the most cost-efficient procurement strategy.
