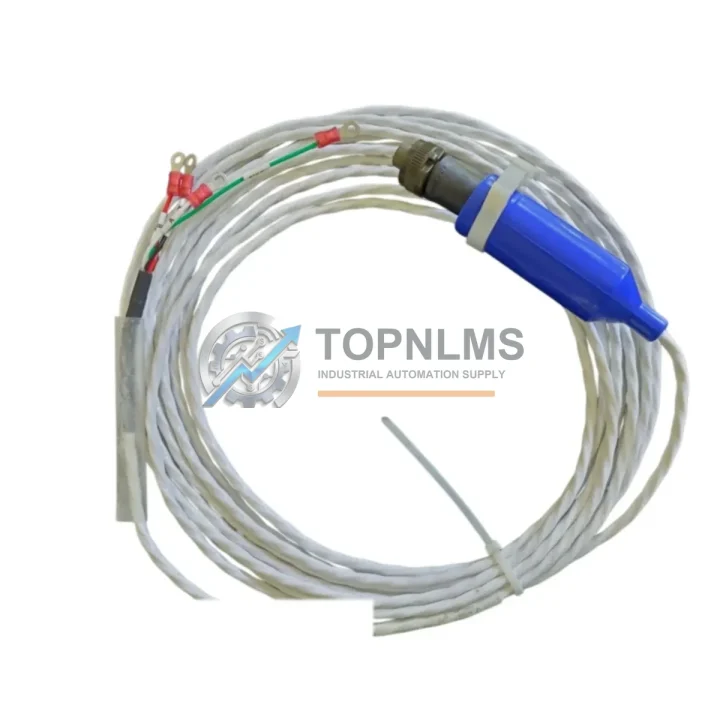

Bently Nevada 130539-17 Replacement for 3300/7200 Series

Product Overview

Bently Nevada 130539-17 Replacement & Upgrade Solution for 3300/7200 Series: Seamless Transition from Legacy Vibration Monitoring Systems

The Bently Nevada 130539-17 is a precision proximity probe interconnect cable engineered for the 3300 and 7200 Series vibration monitoring platforms — two of the most widely deployed condition monitoring systems in rotating machinery applications worldwide. As plant operators face the reality of aging infrastructure, discontinued spare parts, and tightening maintenance windows, sourcing a verified replacement for the 130539-17 has become a critical procurement priority. TOPNLMS maintains ready inventory of this cable to support emergency replacements, planned turnarounds, and full system migration projects with minimal lead time from our Xiamen warehouse.

The 130539-17 interconnect cable serves as the signal conduit between the proximity probe tip and the Bently Nevada proximitor/extension cable assembly. In a standard 3300 Series installation, the probe, extension cable, and proximitor form a matched system — any substitution must preserve the exact electrical characteristics, including the 200 mV/mil (7.87 V/mm) output sensitivity, the –18 VDC supply voltage compatibility, and the shielded coaxial construction that protects against EMI in high-noise industrial environments. Our replacement cables are manufactured to these specifications and are compatible with the full range of 3300 XL 8mm, 3300 XL 11mm, and 3300 5mm probe assemblies, as well as legacy 7200 Series installations still operating in petrochemical, power generation, and turbomachinery facilities.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy 3300 or 7200 Series vibration monitoring installation rarely involves a single component. In practice, field engineers replacing the 130539-17 interconnect cable are often simultaneously addressing adjacent components that have reached end-of-life or are showing signs of signal degradation. The 3300 XL 8mm Proximity Probe (e.g., 330103-00-06-10-02-00) is the most common probe paired with this cable in turbine and compressor applications; if the cable is being replaced due to connector wear or jacket damage, the probe tip should be inspected and replaced as a matched set to maintain system calibration. Similarly, the 3300 XL Proximitor Sensor (330180-X1-CN) — the signal conditioning module that converts the probe’s oscillator output into a DC voltage proportional to gap distance — should be verified for correct bias voltage output before the new cable is commissioned.

For installations migrating from the older 7200 Series to the current 3300 XL platform, the 7200 Series Extension Cable (330130-045-00-CN) may need to be replaced alongside the 130539-17 to ensure impedance matching across the full probe-to-monitor signal chain. The 3300 Rack Monitor (3300/16) and its associated I/O modules, including the 3300/20-02-01-00 4-channel monitor card, are the typical rack-mounted receivers for these signals; any cable replacement project should include a functional check of the monitor card’s input impedance and alarm setpoints. In facilities running the System 1 Optimization and Diagnostic Software platform, the cable replacement can be logged as a maintenance event without interrupting continuous data acquisition from adjacent channels.

Where the control cabinet layout requires routing the interconnect cable through conduit or cable trays shared with power wiring, the addition of a signal isolator — such as a DIN-rail mounted galvanic isolator compatible with the 3300 Series output range — is recommended to prevent ground loop interference. For new installations or full rack rebuilds, the 3500 Series Machinery Protection System offers a modern migration path from the 3300 platform, with backward-compatible probe inputs that accept the same 130539-17 cable geometry during the transition period before full 3500 Series cabling is installed.

Retrofit Guidance FAQ

Q: Can I replace the 130539-17 without recalibrating the entire probe system?
A: Yes, provided the replacement cable maintains the same electrical length and impedance characteristics as the original. The 3300 Series system calibration is stored in the proximitor and monitor, not in the cable itself. A direct cable swap using a verified replacement does not require re-gapping the probe or adjusting monitor setpoints, though a bias voltage check at the proximitor output is always recommended after any cable change.

Q: Is the 130539-17 compatible with both the 3300 XL and the older 3300 5mm probe series?
A: The 130539-17 interconnect cable is designed for the 3300 and 7200 Series probe systems. Compatibility with specific probe diameters (5mm, 8mm, 11mm) depends on the connector type at the probe end. Please confirm your probe model number when ordering to ensure the correct connector configuration is supplied.

Q: What is the maximum cable run length before signal attenuation becomes a concern?
A: Bently Nevada 3300 Series systems are designed for a total system length (probe + extension cable + interconnect) within the specified range for the proximitor model in use. Exceeding the rated total length will shift the linear range and affect sensitivity. Our team can advise on extension cable selection if your installation requires longer runs.

Q: Can this cable be used in hazardous area (ATEX/IECEx) installations?
A: The 130539-17 is used in standard industrial installations. For hazardous area applications, the full probe system — including the proximitor and associated barriers — must carry the appropriate ATEX or IECEx certification. Please specify your area classification when inquiring so we can confirm the correct part configuration.

Q: How do I verify the cable is functioning correctly after installation?
A: After installation, measure the DC bias voltage at the proximitor output with the probe at the nominal gap distance specified for your application (typically 1.0 mm / 40 mil for 8mm probes). The output should read approximately –10 VDC at nominal gap. Any significant deviation indicates a wiring issue, incorrect gap, or component fault.

Warranty Assurance

Every Bently Nevada 130539-17 replacement cable shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes continuity testing, connector integrity inspection, and shield continuity verification to confirm it meets the electrical specifications required for 3300 and 7200 Series system compatibility. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement shipment or issue a refund — whichever resolution best minimizes your operational downtime.

Our inventory is maintained in Xiamen, China, with standard international shipping available to most industrial regions. Express freight options are available for emergency maintenance situations. We provide full documentation support including packing lists, commercial invoices, and certificates of conformance for customs clearance and internal procurement records. Our technical team is available via email and phone to assist with pre-purchase compatibility verification, installation guidance, and post-installation troubleshooting.

For volume procurement, planned turnaround orders, or OEM-equivalent spare parts programs covering multiple 3300/7200 Series components, please contact us directly to discuss pricing, lead times, and consignment stocking arrangements.
