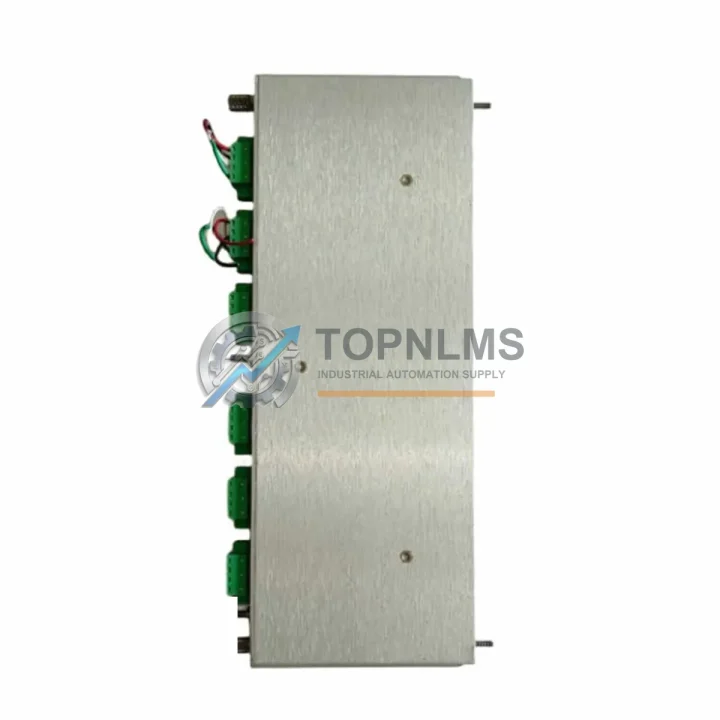

Bently Nevada 125800-01 Original Industrial Spare 3500 Compatible

Product Overview

Bently Nevada 125800-01 Original Industrial Spare 3500 Compatible: System Stability and Machinery Protection Maintenance Value

The Bently Nevada 125800-01 Proximitor I/O Module is a critical original spare part within the 3500 Series Machinery Protection System — one of the most widely deployed vibration monitoring and protection platforms in rotating equipment applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or executing a preventive maintenance cycle on turbines, compressors, pumps, or generators, having a verified original 125800-01 module in your spare parts inventory is a direct investment in system uptime and operational continuity.

The 3500 Series rack-based architecture is designed for continuous, real-time monitoring of shaft vibration, axial position, speed, and process variables. The Proximitor I/O Module serves as the signal conditioning and interface layer between field-mounted proximity probes and the 3500 rack’s processing and relay modules. A failed or degraded 125800-01 can result in false trips, missed alarms, or complete loss of protection coverage on a monitored machine train — all scenarios that carry significant safety and financial consequences in process-critical environments.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a 3500 Series rack is opened for inspection or a 125800-01 replacement is being executed, experienced maintenance engineers treat the intervention as an opportunity to audit the health of the entire monitoring loop and adjacent control infrastructure. A Proximitor I/O Module failure rarely occurs in isolation — it is often preceded or accompanied by degradation in connected components that share the same operating environment, power rail, or signal path.

During the same maintenance window, it is best practice to inspect and, where service life warrants, replace the 3500/05 Power Supply Module, which provides regulated DC power to the entire rack. A marginal power supply can cause intermittent module faults that are difficult to diagnose without substitution testing. Similarly, the 3500/15 Power Supply I/O Module should be checked for connector integrity and output stability.

The proximity probes themselves — typically Bently Nevada 3300 XL 8mm or 11mm probes paired with their extension cables and 3300 XL Proximitor sensors — should be inspected for cable jacket damage, connector corrosion, and gap voltage drift. A probe assembly that is out of calibration will produce erroneous readings even with a perfectly functional 125800-01 module installed. Replacing the I/O module without verifying probe gap and output voltage is an incomplete repair.

For machines where axial position monitoring is critical — such as steam turbines or centrifugal compressors — the 3500/25 Enhanced Keyphasor Module and 3500/40 Proximitor/Seismic Monitor Module should be included in the inspection checklist. These modules work in concert with the Proximitor I/O to deliver complete shaft dynamics data to the control room. A degraded Keyphasor module can corrupt speed and phase reference signals across the entire rack.

Relay output modules such as the 3500/32 Relay Module and 3500/33 16-Channel Relay Module are downstream of the I/O signal chain and should be tested for contact resistance and trip response time during any rack-level maintenance event. Relay contacts that have experienced high cycle counts in high-vibration environments are a common source of nuisance trips and missed shutdowns.

Finally, the 3500/92 Communication Gateway Module — used for Modbus, Ethernet, or OPC integration with DCS and SCADA systems — should be verified for firmware currency and communication health. A communication module that is silently dropping data packets can mask developing machinery faults from the control room historian, undermining the entire value of the protection system.

Stocking the 125800-01 alongside these complementary modules as a coordinated spare parts kit reduces mean time to repair (MTTR) and eliminates the risk of a secondary component failure extending a planned outage into an unplanned one.

Strategic Replacement Solutions

The Bently Nevada 3500 Series has been in continuous service at refineries, power generation facilities, LNG plants, and petrochemical complexes for decades. Many installations are running firmware and hardware revisions that are no longer in active production, making original spare parts — rather than system upgrades — the most cost-effective and operationally safe path forward for maintenance teams managing aging assets.

The 125800-01 is a direct replacement for earlier Proximitor I/O variants used in legacy 3500 rack configurations. Installing an original Bently Nevada module preserves the factory-calibrated signal conditioning characteristics, ensuring that alarm and trip setpoints established during original commissioning remain valid without recalibration. This is a critical consideration in facilities where machinery protection setpoints are governed by API 670 or site-specific engineering standards.

For maintenance planners operating under a reliability-centered maintenance (RCM) or condition-based maintenance (CBM) framework, the 125800-01 represents a low-cost insurance policy against a high-consequence failure mode. The cost of a single unplanned compressor or turbine trip — including lost production, emergency labor, and potential equipment damage — typically exceeds the value of a complete 3500 rack spare parts inventory by an order of magnitude.

Sourcing original Bently Nevada modules through a verified industrial spare parts supplier with documented testing procedures and traceability ensures that replacement modules meet the same performance specifications as factory-new units. Each 125800-01 shipped from TOPNLMS undergoes functional verification prior to dispatch and is covered by a 12-month warranty from the date of shipment.

Support FAQ

Q1: Is the 125800-01 compatible with all 3500 Series rack configurations?
The 125800-01 Proximitor I/O Module is designed for use within the Bently Nevada 3500 Series rack architecture. Compatibility depends on the specific rack model, slot assignment, and firmware revision of your system. We recommend confirming your rack model and existing module configuration before ordering. Our technical team can assist with compatibility verification based on your rack serial number or system drawing.

Q2: What testing is performed before shipment?
Each 125800-01 unit undergoes a functional test protocol prior to shipment, including power-on verification, signal path continuity checks, and output voltage validation. Units are inspected for physical damage, connector integrity, and firmware version. A test report is available upon request for quality-critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside specified environmental limits. Warranty claims are processed with return material authorization (RMA) and include repair or replacement at our discretion.

Q4: How should I manage 3500 Series spare parts inventory for long-term system support?
For facilities with multiple 3500 racks or machines, we recommend maintaining a minimum of one spare 125800-01 per monitored machine train, plus a rack-level spare kit covering the power supply, relay module, and communication gateway. For systems approaching end-of-support lifecycle, a broader buffer stock strategy — covering all populated module types — is advisable to protect against supply chain disruptions. Contact our team for a site-specific spare parts planning consultation.
