Bently Nevada 107540-01A Replacement for 3300/3500 Series: Smooth Transition & Legacy System Compatibility

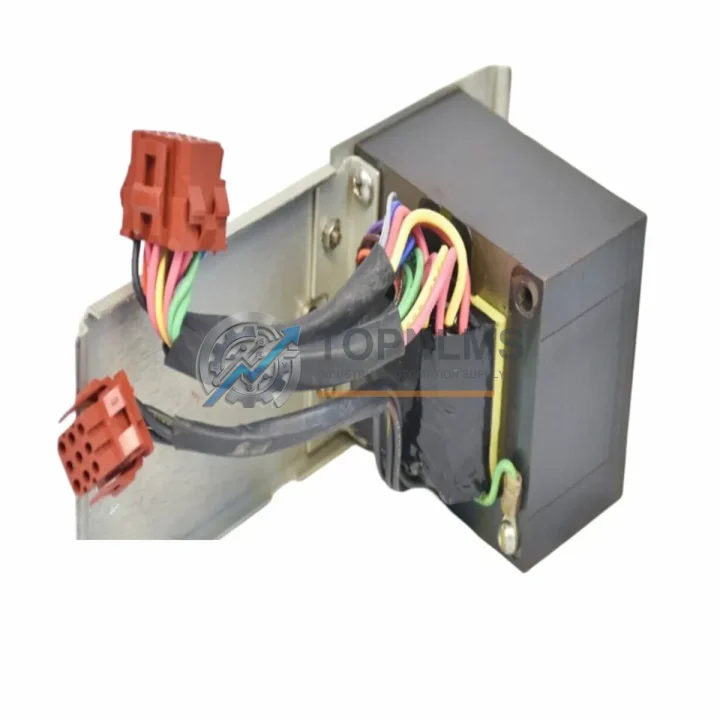

The Bently Nevada 107540-01A Proximity System Transformer is a critical power supply component within the Bently Nevada 3300 and 3500 Series continuous vibration monitoring platforms. As these systems age and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain full electrical and mechanical compatibility with existing rack infrastructure — without triggering a full system overhaul.

TOPNLMS supplies the 107540-01A as a direct drop-in replacement for facilities operating legacy Bently Nevada 3300 Series and 3500 Series monitor racks. Whether your facility is managing a planned upgrade cycle, responding to an unplanned failure, or building a strategic spare-parts inventory, this unit is tested, documented, and ready to ship.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 107540-01A is rarely an isolated action. In most plant environments, this transformer operates as part of a broader Bently Nevada 3300 or 3500 Series monitoring rack that includes multiple interdependent modules. A complete and reliable migration typically involves reviewing the condition and availability of adjacent components within the same chassis.

The Bently Nevada 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor are commonly co-located in the same rack and should be inspected for firmware compatibility when the proximity transformer is replaced. If your facility is also upgrading the signal conditioning chain, the Bently Nevada 3300/16-24-00 Proximitor Sensor and associated 3300 XL 8mm Proximity Probes may need to be evaluated for probe gap recalibration after the transformer swap.

For facilities integrating Bently Nevada 3500 Series outputs into a DCS or safety system, the 3500/20 Rack Interface I/O Module handles the communication bridge between the monitor rack and the plant control network — typically via Modbus RTU or 4–20 mA hardwired loops. If your control room runs a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA platform, the analog I/O cards on the DCS side should be verified for loop impedance compatibility before commissioning the replacement unit.

In cases where the 3300 Series rack itself is approaching end-of-life, some facilities choose to migrate to the Bently Nevada 3500 Series rack entirely. This migration path requires a new 3500/01 Rack Power Supply, updated 3500/05 System Display and Alarm Module, and reconfiguration of the System 1 Evolution software for channel mapping. TOPNLMS can supply the 3500/01-01-00-00-00-00 power supply and 3500/05-01-01-00-00 display module as part of a coordinated rack upgrade package.

Where signal isolation is required between the proximity system output and the DCS analog input — particularly in high-noise environments near variable frequency drives or large motor control centers — a DIN-rail signal isolator/repeater (such as a Phoenix Contact MACX or equivalent) is recommended to protect loop integrity and prevent ground loops from corrupting vibration data.

Retrofit Guidance FAQ

Q: Can I replace the 107540-01A without rewiring the field cables?
A: Yes. The 107540-01A uses the same terminal block pinout as earlier revisions. Existing field wiring from the proximity probe extension cables connects directly to the replacement unit without modification. Verify terminal torque specifications per the Bently Nevada installation manual before energizing.

Q: Will the replacement unit affect my DCS analog input readings?
A: No. The 107540-01A outputs the same 4–20 mA or voltage signal as the original unit. Your DCS loop — whether connected to a Honeywell, Emerson, or Yokogawa I/O card — will see no change in signal range or scaling. Perform a loop check and zero/span verification after installation as standard commissioning practice.

Q: Is there any programming or configuration required after replacement?
A: The 107540-01A is a passive transformer/power supply component and does not contain configurable firmware. No programming changes are required in the Bently Nevada System 1 software or the connected DCS. However, if the rack was previously in alarm due to the failed unit, alarm inhibits should be cleared and channel health verified in System 1 after replacement.

Q: Does this unit fit in both 3300 and 3500 Series racks?
A: The 107540-01A is primarily associated with the 3300 Series rack architecture. For 3500 Series racks, verify the specific slot assignment and power supply compatibility with the 3500/01 rack power supply before installation. Contact TOPNLMS with your rack configuration details for pre-sale compatibility confirmation.

Q: What is the lead time and shipping method?
A: Units are in stock at our Xiamen warehouse. Standard international shipment via DHL Express or FedEx International Priority typically delivers within 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Q: How do I verify the unit is genuine before installation?
A: Each unit shipped by TOPNLMS includes a pre-shipment functional test report. Serial number and revision markings are verified against OEM documentation. We recommend a bench power-on test and output voltage verification before rack installation.

Warranty Assurance

Every Bently Nevada 107540-01A unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our warranty program is designed to meet the procurement standards of industrial facilities, EPC contractors, and MRO purchasing teams.

• Pre-shipment testing: Each unit undergoes functional verification including power-on test, output voltage measurement, and visual inspection for physical damage or counterfeit indicators.
• Replacement support: If a unit fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment at no additional cost. Defective units are subject to return inspection.
• Documentation: Test reports, packing lists, and commercial invoices are provided with every shipment to support customs clearance and internal procurement records.
• After-sales response: Our technical team responds to warranty claims and compatibility inquiries within 24 business hours. Contact us at [email protected] or +86 18359293191.
• Procurement assurance: TOPNLMS maintains stock of critical Bently Nevada 3300/3500 Series components to support emergency procurement scenarios. Purchase orders, proforma invoices, and wire transfer payment terms are supported.

For bulk orders, long-term supply agreements, or project-based procurement of Bently Nevada 3300/3500 Series spares, contact our sales team directly to discuss pricing, lead times, and consignment stock arrangements.
