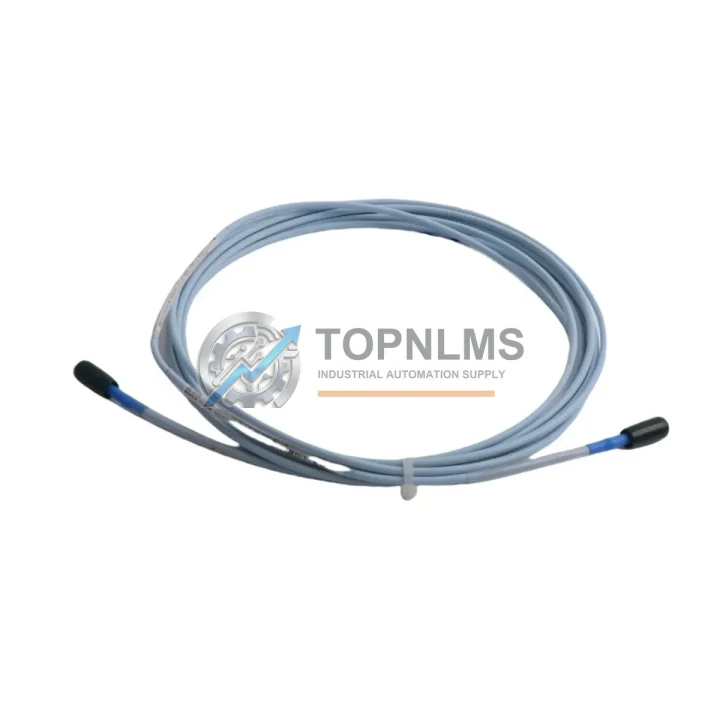

Bently Nevada 102045-040-01 Ruggedized Proximity Probe

Product Overview

Bently Nevada 102045-040-01 Ruggedized Proximity Probe for Harsh Industrial Environments

The Bently Nevada 102045-040-01 is a precision eddy current proximity probe from the renowned 3300 XL Series, engineered to deliver continuous, non-contact vibration and position measurement in the most demanding industrial environments. Designed for rotating machinery protection and condition monitoring, this probe maintains exceptional signal integrity under conditions of extreme temperature, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference — making it the benchmark choice for critical asset protection across heavy industry.

As a core sensing element within Bently Nevada’s 3300 XL monitoring architecture, the 102045-040-01 works in concert with the 3300 XL 8mm Extension Cable, the 3300 XL Proximitor® Sensor (such as the 330180 series), and the 3300/16 Monitor rack-mounted signal processing cards to form a complete, certified vibration monitoring chain. This integrated system approach ensures that every signal from the probe tip to the control room DCS or safety PLC is conditioned, validated, and actionable — with no compromise in measurement accuracy even in the presence of strong variable-frequency drive (VFD) switching noise or high-power motor fields.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable machinery protection is never the result of a single component — it is the outcome of a carefully integrated system. The Bently Nevada 102045-040-01 proximity probe is most effective when deployed as part of a complete monitoring and protection architecture. In a typical turbine or compressor protection panel, this probe connects via a matched Bently Nevada 330130 Extension Cable to a Bently Nevada 330180-X1-05 Proximitor® Sensor, which conditions the raw eddy current signal into a calibrated DC voltage output readable by the Bently Nevada 3500/42M Proximitor®/Seismic Monitor module.

Within the same control cabinet, the monitoring system typically interfaces with a Rockwell Automation ControlLogix PLC or a Siemens S7-400 safety PLC via hardwired relay outputs or FOUNDATION Fieldbus / Modbus RTU communication modules. The 3300 XL probe’s output is also compatible with Emerson DeltaV DCS analog input cards, enabling seamless integration into plant-wide process control and safety instrumented systems (SIS). For power supply integrity within the monitoring rack, a dedicated Bently Nevada 3500/15 Power Supply module ensures stable, isolated 24 VDC delivery — critical for maintaining measurement accuracy in electrically noisy environments.

In applications where the probe monitors shaft position on a high-speed centrifugal compressor, the signal chain may also include a Bently Nevada 3500/25 keyphasor® Module for phase reference, enabling advanced orbit analysis and rotor dynamic diagnostics. Complementary safety layers — such as a Pilz PNOZ safety relay or a Hima HIMax Safety Controller — can act on the monitor’s trip relay outputs to initiate controlled machine shutdown before catastrophic bearing failure occurs. This multi-layer protection philosophy, anchored by the precision sensing of the 102045-040-01, is the foundation of any IEC 61511-compliant safety instrumented function (SIF) for rotating equipment.

Application in Critical Infrastructure

The Bently Nevada 102045-040-01 proximity probe is deployed across the most demanding sectors of global critical infrastructure, where unplanned downtime carries consequences measured not just in lost revenue, but in personnel safety and environmental risk.

In oil and gas upstream and midstream facilities — including offshore platforms, gas compression stations, and LNG liquefaction trains — this probe monitors the radial shaft vibration of high-speed centrifugal compressors and gas turbine-driven generators operating continuously in ATEX Zone 1 classified areas. Its IP67 sealing and ATEX-certified construction ensure it withstands hydrocarbon-laden atmospheres, salt spray, and the mechanical shock of compressor surge events without signal degradation.

In coal-fired and combined-cycle power generation plants, the 102045-040-01 is installed on steam turbine journal bearings and boiler feed pump shafts, providing the real-time vibration data that plant operators rely on to schedule predictive maintenance outages rather than react to catastrophic failures. The probe’s wide operating temperature range makes it suitable for installation in hot sections of the turbine hall where ambient temperatures routinely exceed 80°C.

In mining and mineral processing operations — including copper smelters, iron ore pelletizing plants, and underground ventilation fan installations — the probe’s robust coaxial cable construction resists the abrasive dust, high humidity, and constant vibration that rapidly degrade lesser sensing technologies. Similarly, in water and wastewater treatment facilities, the probe monitors large vertical turbine pumps and blower units that must operate continuously to meet regulatory discharge standards, where any undetected bearing fault could result in a compliance violation or environmental incident.

In metallurgical and steel production environments, the 102045-040-01 is used on rolling mill drive motors and continuous casting machine drives, where electromagnetic interference from high-current DC drives and induction furnaces is severe. The probe’s shielded coaxial design and the Proximitor® sensor’s differential signal processing architecture provide the EMI immunity necessary to maintain measurement integrity in these electrically hostile conditions.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Bently Nevada 102045-040-01?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification including continuity testing, insulation resistance check, and sensitivity calibration verification against Bently Nevada factory specifications. A test report is available upon request.

Q2: How do I confirm compatibility with my existing 3300 or 3500 Series monitoring system?
The 102045-040-01 is a standard 8mm, 1.0m cable proximity probe fully compatible with all Bently Nevada 3300 XL Proximitor® sensors and 3500 Series monitor modules that accept 8mm probe inputs. If you are integrating into a legacy 3300 (non-XL) system, please contact our technical team at [email protected] with your existing Proximitor® model number for a compatibility confirmation before ordering.

Q3: Is this probe suitable for use in hazardous classified areas (ATEX / FM)?
Yes. The 102045-040-01 carries ATEX and FM certifications for use in Zone 1/2 (ATEX) and Division 1/2 (FM) hazardous locations when used with a certified Bently Nevada Proximitor® sensor as the associated apparatus. Always verify the complete system certification (probe + extension cable + Proximitor®) against your site’s area classification documentation before installation.

Q4: What is TOPNLMS’s lead time and long-term supply capability for this part?
TOPNLMS maintains stock of the Bently Nevada 102045-040-01 and common 3300 XL Series accessories to support both emergency replacement and planned maintenance programs. Standard in-stock orders ship within 1–3 business days from our Xiamen, China warehouse. For long-term supply agreements or blanket purchase orders covering multiple SKUs across the Bently Nevada 3300/3500 product family, please contact our sales team to discuss pricing, lead time guarantees, and consignment stocking arrangements.
