Bently Nevada 102045-040-00-05 Ruggedized Extension Cable Module

Product Overview

Bently Nevada 102045-040-00-05 Ruggedized Extension Cable Module: Industrial Resilience for Harsh Environments

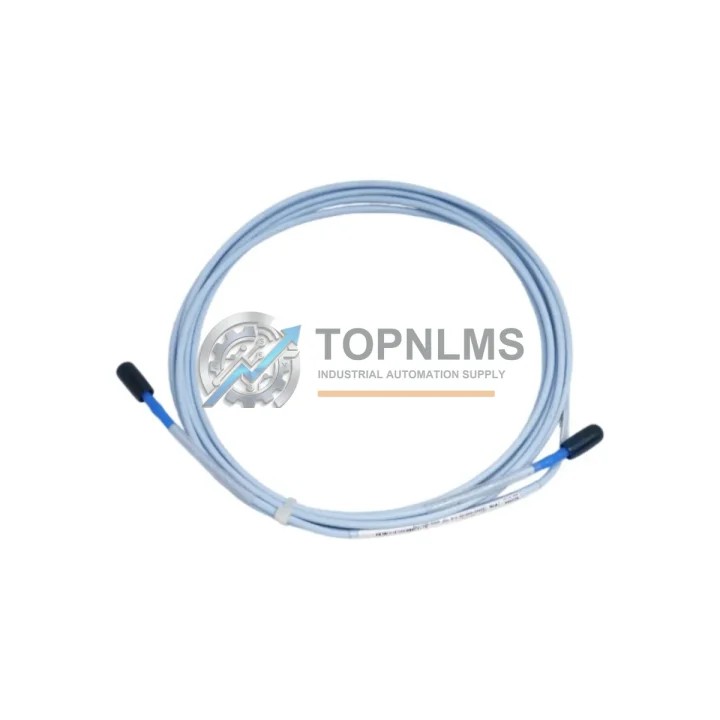

The Bently Nevada 102045-040-00-05 is a precision-engineered extension cable designed for the 3300 XL Proximity Probe System — one of the most trusted vibration and position monitoring platforms in continuous heavy-industry operations. Built to withstand the electromagnetic interference, mechanical vibration, thermal cycling, and chemical exposure common in oil & gas, power generation, mining, and metallurgical facilities, this extension cable is a mission-critical component that ensures uninterrupted signal integrity between the proximity probe and the Bently Nevada 3300 XL Proximitor® sensor.

In rotating machinery protection systems, signal loss or degradation at the cable level can trigger false trips, mask real faults, or — in worst-case scenarios — allow catastrophic equipment failure to go undetected. The 102045-040-00-05 eliminates this risk by providing a shielded, impedance-matched signal path rated for the demanding electrical and mechanical conditions found in turbine halls, compressor trains, pump skids, and motor-driven production lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The 102045-040-00-05 extension cable does not operate in isolation — it is the signal backbone of a complete machinery protection chain. In a typical turbine or compressor monitoring installation, this cable connects the Bently Nevada 3300 XL 8mm Proximity Probe (190500-040-000) to the Bently Nevada 330180 Proximitor® Sensor, which in turn feeds real-time vibration and position data to the Bently Nevada 3500 Series Machinery Protection System rack. The 3500 rack — housing modules such as the 3500/22M Transient Data Interface, 3500/42M Proximitor®/Seismic Monitor, and 3500/92 Communication Gateway — processes these signals and triggers protective shutdowns or alarms when vibration thresholds are exceeded.

In DCS-integrated environments, the 3500 rack communicates via Modbus or FOUNDATION Fieldbus to plant-level controllers such as the Emerson DeltaV M-Series I/O modules or Honeywell Safety Manager, ensuring that vibration events are logged and acted upon within the plant’s overall safety instrumented system (SIS). The integrity of the 102045-040-00-05 cable is therefore directly linked to the reliability of the entire protection loop — from the rotating shaft surface to the control room operator display.

For installations requiring redundant monitoring, the cable is often deployed alongside Bently Nevada 330130 Velomitor® CT Velocity Sensors and 3300 XL Thrust Position Probes, providing a multi-parameter view of shaft behavior. In high-voltage switchgear rooms and motor control centers where EMI is a persistent concern, the double-shielded construction of the 102045-040-00-05 ensures that proximity signals remain clean and uncontaminated by switching transients from nearby ABB ACS880 variable frequency drives or Siemens SINAMICS S120 drive systems. Proper cable routing, combined with grounding discipline at the Proximitor® sensor terminal, eliminates ground loops that would otherwise introduce noise into the 0–24 VDC signal range.

When planning a full probe system replacement or upgrade, procurement teams typically source the probe, extension cable, and Proximitor® sensor as a matched set to guarantee system calibration accuracy. TOPNLMS maintains stock of all three components, enabling single-source procurement and reducing lead time risk for planned maintenance shutdowns.

Application in Critical Infrastructure

The Bently Nevada 102045-040-00-05 extension cable is deployed across the most demanding sectors of global industrial infrastructure:

Oil & Gas: On offshore platforms and onshore gas compression stations, this cable connects proximity probes mounted on high-speed centrifugal compressors and gas turbines. Continuous exposure to hydrocarbon vapors, salt spray, and wide temperature swings demands the oil-resistant, sealed-connector construction that the 102045-040-00-05 provides. A failed or degraded extension cable in this environment can result in unplanned compressor trips, production loss, and — in the worst case — undetected shaft rubs leading to catastrophic seal failure.

Power Generation: Steam turbine generators in coal, gas, and nuclear power plants rely on Bently Nevada 3300 XL systems for continuous shaft vibration monitoring. The extension cable must maintain signal integrity through the thermal gradients present near turbine bearing pedestals, where ambient temperatures can fluctuate by 60°C or more during load cycling. The 102045-040-00-05 is rated for this duty and is a standard replacement part in planned outage kits for power plant maintenance teams.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate intense mechanical vibration and dust. The 102045-040-00-05’s robust jacket and sealed connectors resist ingress of fine mineral dust and moisture, maintaining reliable proximity signal transmission even in the harshest concentrator environments.

Metallurgy & Steel: Rolling mills and continuous casting lines subject instrumentation cables to extreme radiant heat, electromagnetic interference from large induction furnaces, and mechanical shock. The shielded construction of this extension cable ensures that vibration monitoring data from critical drive motors and gearboxes remains accurate and actionable, supporting predictive maintenance programs that reduce unplanned downtime.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities benefit from continuous vibration monitoring to detect bearing wear and imbalance before failure. The 102045-040-00-05 provides a reliable signal path in the high-humidity, chemically aggressive atmosphere of treatment plant pump rooms.

Security & Quality FAQ

Q1: What warranty does the Bently Nevada 102045-040-00-05 carry when purchased from TOPNLMS?
All units sold by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every 102045-040-00-05 extension cable undergoes a full continuity test, insulation resistance check, and connector integrity inspection before dispatch. Units that do not meet Bently Nevada’s original specification are quarantined and not sold. A test report is available upon request for critical-application procurement.

Q3: Is this cable compatible with all 3300 XL proximity probe configurations?
The 102045-040-00-05 is specifically designed for the Bently Nevada 3300 XL 8mm probe system and is impedance-matched to the 330180/330181 Proximitor® sensor series. It is not interchangeable with 3300 NSv or 7200 series probe systems. If you are unsure of your system configuration, contact our technical team with your Proximitor® model number for confirmation before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains a dedicated inventory of Bently Nevada 3300 XL system components, including probes, extension cables, and Proximitor® sensors, to support both emergency replacement and planned maintenance programs. We offer blanket order arrangements for customers with recurring demand, ensuring priority allocation and stable pricing. Contact our team to discuss a supply agreement tailored to your maintenance schedule.
