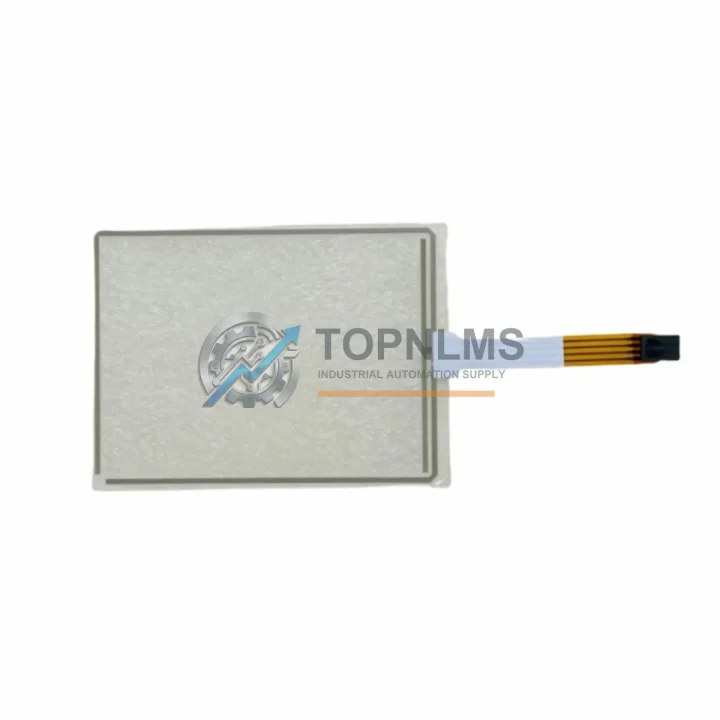

Beijer Electronics 02640E Original Industrial Spare iX Panel Compatible

Product Overview

Beijer Electronics 02640E iX Panel Series: Industrial HMI Spare for System Stability

The Beijer Electronics 02640E is an original spare part from the iX Panel Series — a proven line of industrial Human-Machine Interface (HMI) touch screens widely deployed across manufacturing, process control, water treatment, energy, and discrete automation environments. Maintaining an available stock of the 02640E is a foundational element of any serious preventive maintenance program for facilities running Beijer iX Panel-based control architectures.

Unplanned HMI failures are among the most disruptive events in a production environment. Unlike PLC CPU or I/O module failures that may allow partial operation, a failed HMI panel eliminates operator visibility entirely — making fault diagnosis, parameter adjustment, and manual override impossible without a replacement unit on hand. The 02640E addresses this risk directly: it is a factory-original component, fully compatible with existing iX Panel Series installations, and ready for immediate deployment without software reconfiguration of the underlying control logic.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance approach for any iX Panel Series installation extends well beyond the HMI panel itself. The 02640E operates as the operator interface layer within a broader control cabinet ecosystem, and its reliability is directly dependent on the health of surrounding components. During scheduled maintenance windows or unplanned downtime events, experienced maintenance engineers treat HMI replacement as an opportunity to audit the entire control cabinet.

Begin with the 24VDC power supply module feeding the HMI panel — voltage ripple, output tolerance drift, and capacitor aging are common root causes of intermittent HMI resets and communication dropouts that are frequently misdiagnosed as HMI panel failures. A replacement power supply module should be stocked alongside the 02640E. Next, inspect the communication cables and connectors between the HMI and the PLC or DCS controller: Ethernet patch cables, RS-232/RS-485 serial cables, and DB9 connectors are low-cost consumables that degrade in high-vibration or high-temperature environments and should be replaced on a fixed cycle rather than on failure.

The PLC CPU module — whether a Beijer controller or a third-party PLC communicating with the iX Panel — should be inspected for firmware currency and battery backup status during the same maintenance window. Stocking a spare CPU module or at minimum a spare PLC memory backup battery prevents program loss during unplanned power events. Similarly, the digital I/O modules connected to the same rack or DIN rail should be checked for channel integrity: a failed I/O channel that goes undetected can produce misleading process data on the HMI display, creating operator confusion that compounds downtime.

For facilities running mixed-vendor control architectures, the communication gateway or protocol converter module bridging the iX Panel to legacy fieldbus networks (Profibus, Modbus RTU, DeviceNet) is a critical single point of failure that is frequently overlooked in spare parts inventories. Stocking a spare gateway module eliminates a common multi-day lead-time bottleneck during emergency repairs. Likewise, terminal blocks and DIN rail mounting hardware within the control cabinet should be inspected for loose connections, corrosion, and thermal discoloration — these are leading indicators of impending failures in adjacent modules.

Finally, consider the signal isolator modules and fuse protection modules in the same electrical circuit as the HMI power feed. Fuse modules with blown indicators simplify fault diagnosis; signal isolators protect the HMI’s analog input channels from ground loop interference that can cause erratic display behavior. Maintaining a small buffer stock of these components — alongside the 02640E — transforms a potential multi-day outage into a same-shift recovery.

Strategic Replacement Solutions

The Beijer Electronics 02640E is the correct replacement for aging or failed iX Panel Series HMI units in existing installations. Unlike generic aftermarket alternatives, the original 02640E maintains full compatibility with iX Developer project files, preserving all existing screen layouts, alarm configurations, tag mappings, and communication driver settings without requiring re-engineering. This is a critical advantage in facilities where the original project documentation is incomplete or the original system integrator is no longer available.

For maintenance teams managing aging control systems, the 02640E provides a direct path to extending system life without the cost and risk of a full control system migration. A single-unit replacement restores full operator interface functionality in under an hour for a prepared maintenance team — compared to weeks or months for a full HMI platform migration. Stocking one or two units as cold spares is a standard practice in facilities with multiple iX Panel installations, as it eliminates procurement lead time as a variable in recovery time calculations.

From a total cost of ownership perspective, the 02640E’s 12-month warranty and pre-shipment testing protocol provide procurement teams with a defensible basis for spare parts budget allocation. Each unit is verified functional before dispatch, reducing the risk of receiving a defective spare that fails at the moment of need — a scenario that doubles downtime and undermines confidence in the spare parts program.

Support FAQ

Q1: Is the 02640E a direct drop-in replacement for an existing iX Panel Series HMI without software changes?
Yes. The 02640E is an original Beijer Electronics component. When replacing a failed unit of the same part number, the existing iX Developer project file can be transferred to the replacement unit without modification, preserving all screen configurations, tag definitions, alarm setpoints, and communication driver settings.

Q2: How many units should a facility stock as cold spares?
For facilities with 1–3 iX Panel installations, one cold spare is the standard recommendation. Facilities with 4 or more panels, or those operating in high-criticality environments (continuous process, pharmaceutical, utilities), should maintain a minimum of two units. Spare parts inventory should be reviewed annually against system age and procurement lead times.

Q3: What pre-shipment testing is performed on the 02640E?
Each unit undergoes functional verification prior to dispatch, confirming power-on operation, display integrity, touch screen response, and communication port functionality. Units that do not pass verification are not shipped. The 12-month warranty covers manufacturing defects identified after installation.

Q4: How is compatibility with legacy iX Panel Series installations verified?
Compatibility is confirmed by matching the part number (02640E) to the installed unit’s nameplate. For installations where the original part number is unclear, our technical team can assist with compatibility verification based on the iX Developer project file version and the installed firmware revision. Contact us at [email protected] with your system details before ordering if verification is required.
