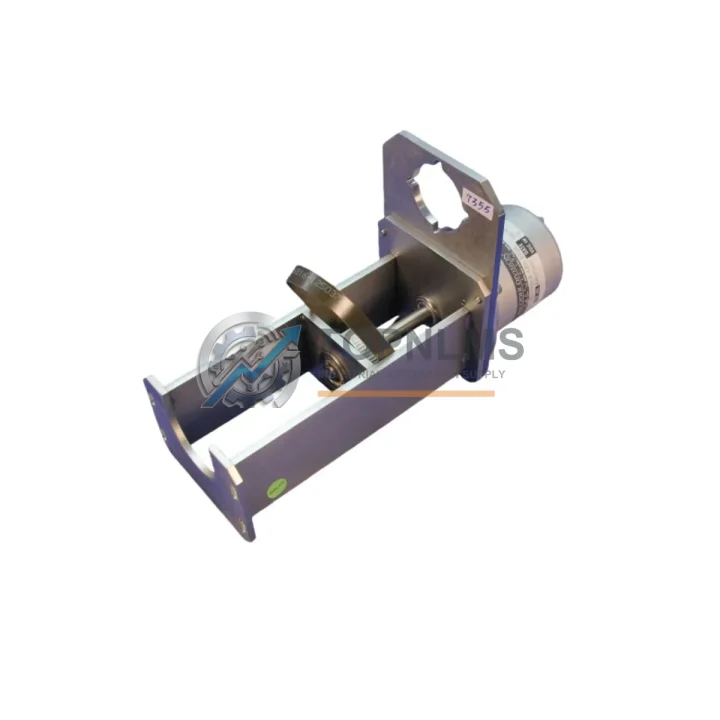

BEI E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 Replacement Solution: Smooth Transition from Legacy Servo Feedback Systems

When your servo drive system relies on a BEI Technologies E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 incremental encoder and that unit reaches end-of-life, unplanned downtime becomes your most expensive risk. The E25BB Series was widely deployed across CNC machining centers, servo press lines, packaging automation, and motion-control platforms throughout the 1990s and 2000s. As original units age, bearing wear, LED emitter degradation, and disc contamination accelerate failure rates — making a qualified replacement or upgrade path essential for any maintenance or modernization project.

TOPNLMS supplies verified replacement units for the E25BB-4R-SB-CCW-8CC-7406R-LED-ED25, sourced from authorized channels and tested against original BEI Technologies specifications. Each unit ships with full dimensional, electrical, and output waveform verification to ensure compatibility with your existing servo amplifier, motion controller, or PLC feedback loop before it leaves our facility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful servo feedback encoder replacement rarely involves the encoder alone. In most retrofit and modernization projects, the E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 operates as part of a tightly integrated motion control architecture. During the replacement process, engineers frequently audit and upgrade adjacent components to eliminate future single points of failure.

On the servo drive side, systems running legacy Fanuc α-series or βi-series servo amplifiers often pair the E25BB encoder with a dedicated feedback cable assembly — typically a shielded, twisted-pair cable terminated with a Fanuc JY0 or MS3106 connector. Replacing the encoder is the ideal moment to inspect and renew this cable, particularly if the original harness shows insulation cracking or connector corrosion from years of machine vibration and coolant exposure.

For installations on Siemens SINUMERIK 840D or 828D platforms, the E25BB encoder feeds into a Siemens SIMODRIVE 611 or SINAMICS S120 drive module via an SMC (Sensor Module Cabinet-Mounted) interface. When migrating from the original E25BB unit, technicians should verify the SMC firmware version supports the 7406 PPR resolution without requiring a parameter change in the drive’s encoder configuration screen (MD31020). In many cases, the SMC30 or SMC20 module can be retained without modification.

On Allen-Bradley platforms — particularly those running Kinetix 6000 or Kinetix 6500 servo drives — the encoder feedback connects through a 2090-series feedback cable. The complementary line driver output (8CC) of the E25BB is fully compatible with the single-ended or differential feedback input on these drives, and no additional signal converter or interpolation module is required. However, if the machine is being upgraded from an older 1394 GMC system, a feedback signal conditioner may be needed to bridge the legacy interface.

In Mitsubishi MR-J2S or MR-J4 servo systems, the E25BB encoder’s A/B/Z differential outputs connect directly to the CN2 encoder connector on the servo amplifier. The 7406 PPR resolution must be entered into parameter PA15 (encoder resolution) during commissioning. If the machine previously used a Mitsubishi OSE105 or OSA105 absolute encoder, note that migrating to the incremental E25BB requires the servo drive to perform a home-return cycle on each power-up — a procedural change that must be reflected in the machine’s PLC program, typically a Mitsubishi MELSEC Q-series or iQ-R series controller managing the axis homing sequence.

For control cabinet integration, the encoder’s power supply is typically derived from a dedicated 5 VDC rail on a Phoenix Contact or Weidmüller DIN-rail power supply module. If the cabinet’s 5 V supply is shared with other feedback devices, verify the total current budget before installation. A dedicated 5 V / 2 A supply for the encoder circuit is recommended best practice in high-vibration environments. Terminal blocks — such as Weidmüller WDU 2.5 or Phoenix Contact UK 2.5 — should be inspected and re-torqued during the encoder swap to ensure signal integrity on the A, B, Z, and complementary channels.

Where the machine architecture includes a Beckhoff EtherCAT I/O system or a Siemens ET 200SP distributed I/O station, the encoder signal may pass through a digital input module or a dedicated encoder interface module (such as the Beckhoff EL5101 incremental encoder interface) before reaching the motion controller. These interface modules are generally transparent to the encoder replacement, provided the PPR setting is updated in the TwinCAT or TIA Portal project configuration to reflect 7406 PPR.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness after replacing the encoder?
A: In most cases, yes. The E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 uses a standard radial cable exit (ED25) with a complementary line driver output. If the original connector and cable are undamaged and the pinout matches your drive’s feedback input, the harness can be reused directly. Inspect the cable for insulation damage, especially near the strain relief, before reconnecting.

Q: Do I need to change any drive parameters after installing the replacement encoder?
A: The replacement unit matches the original 7406 PPR specification, so no resolution parameter changes are required on drives that were already configured for this encoder. If the drive was previously set to a different PPR value (e.g., due to a temporary substitute encoder), update the encoder resolution parameter to 7406 before running the axis.

Q: Is the CCW shaft direction critical for my servo system?
A: Yes. The CCW designation defines the positive count direction relative to shaft rotation. If your servo drive’s position loop was tuned with CCW as the positive direction, installing a CW encoder would invert the feedback polarity and cause runaway or fault conditions. The replacement unit preserves the CCW direction, so no wiring phase swap or drive parameter inversion is needed.

Q: What is the physical installation clearance required?
A: The E25BB Series uses a 2.5-inch (63.5 mm) diameter housing with a synchro/servo flange mount. Ensure the rear of the encoder has at least 15 mm of axial clearance from any cabinet panel or bracket. The radial cable exit (ED25) requires a minimum bend radius of 50 mm for the cable to avoid signal degradation.

Q: Can this encoder replace units from other brands with the same specifications?
A: The E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 can functionally replace any incremental encoder with matching PPR (7406), shaft size (3/8″), flange type (synchro), output circuit (RS-422 differential), and cable exit direction, regardless of brand. Dimensional verification against the mounting interface is always recommended before installation.

Q: How do I verify the encoder is functioning correctly after installation?
A: Power the encoder from a regulated 5 VDC supply and use an oscilloscope or encoder tester to verify clean A, B, and Z channel waveforms at the expected frequency for a given shaft speed. Most servo drives also provide a diagnostic screen showing encoder feedback counts — rotate the shaft one full revolution and confirm the count equals 7406 increments.

Warranty Assurance

Every E25BB-4R-SB-CCW-8CC-7406R-LED-ED25 replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes electrical output verification (A, B, Z channel waveform integrity), resolution confirmation at 7406 PPR, mechanical shaft and flange dimensional check, and LED emitter power output measurement. Units that do not meet original BEI Technologies specifications are rejected before packaging.

In the event of a verified defect within the warranty period, TOPNLMS provides a full unit replacement at no additional cost, including return shipping coordination. Our technical support team responds to warranty claims and installation queries within 24 business hours. For urgent production-down situations, expedited replacement dispatch is available from our Xiamen warehouse, with DHL Express and FedEx International Priority options covering most global destinations within 3–5 business days.

Procurement teams can request a Certificate of Conformance (CoC) and test report for each unit at the time of order. Batch traceability records are maintained for a minimum of 5 years to support quality audits and regulatory compliance requirements in automotive, aerospace, and process industries.
