Beckhoff ZK4000-2111-2050 Replacement Cable for AX5000

Product Overview

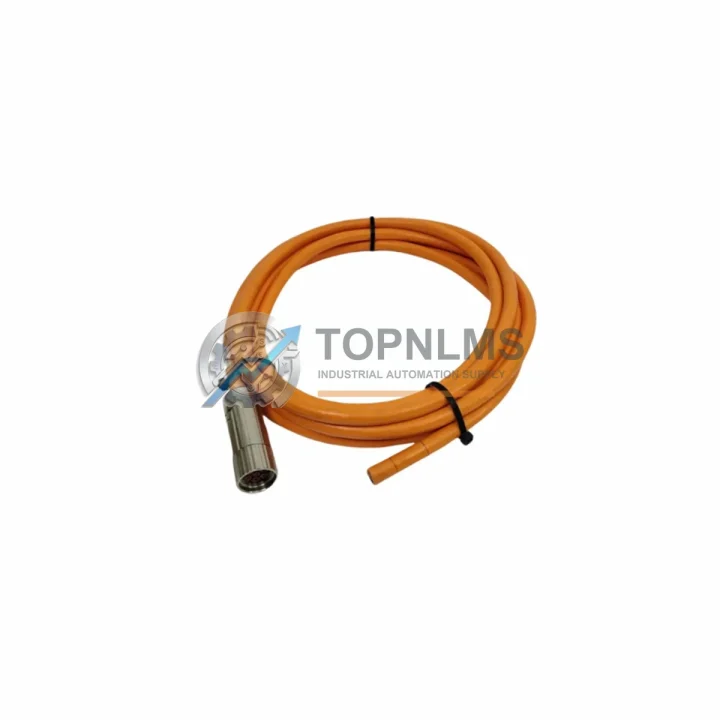

Beckhoff ZK4000-2111-2050 Replacement Cable for AX5000: Seamless Transition from Legacy Wiring Systems

When your existing servo drive wiring infrastructure reaches end-of-life or a legacy cable assembly fails in the field, unplanned downtime becomes the most costly outcome in any industrial automation environment. The Beckhoff ZK4000-2111-2050 is a 5-metre servo motor power cable engineered specifically for the Beckhoff AX5000 series EtherCAT Servo Drive platform, providing a direct, plug-and-play replacement path for aging or damaged cable assemblies without requiring re-engineering of the drive cabinet or motor terminal box.

This cable is designed to interface the AX5000 servo drive’s motor power output connector directly with compatible Beckhoff servo motors, including the AM8000 and AM8500 series synchronous servomotors. The ZK4000 family uses a standardised connector system that eliminates the need for field-crimped terminations, dramatically reducing installation time during a retrofit or emergency replacement. The 2111 designation identifies the connector configuration on the drive side, while the 2050 suffix confirms the 5-metre cable length — a common run distance in mid-size control cabinet-to-motor installations.

For facilities currently operating older Beckhoff AX2000 or AX2500 servo drives with proprietary cable assemblies, migrating to the AX5000 platform requires a full cable replacement. The ZK4000-2111-2050 is the correct motor power cable for this transition. When combined with the ZK4500 series feedback cable (resolver or encoder depending on motor variant), the AX5000 drive system achieves full closed-loop servo control. Engineers planning this migration should also account for the AX5000 power supply module and the CX5140 or CX2040 embedded PC running TwinCAT 3, which replaces older TwinCAT 2 controller hardware in modernised machine architectures.

In multi-axis machine configurations, the ZK4000-2111-2050 is typically deployed alongside the AX5206 dual-axis servo drive or the AX5112 single-axis drive, both of which share the same motor connector standard. This means a single cable part number can be standardised across multiple axes in a machine, simplifying spare parts inventory management and reducing procurement complexity. The EtherCAT communication backbone — handled separately by the EK1100 EtherCAT Coupler and associated EL7201 or EL7211 servo terminal modules — remains unaffected by the motor cable replacement, preserving existing network topology and fieldbus configuration.

From a physical installation standpoint, the ZK4000-2111-2050 is rated for continuous flexing applications and routed through cable carriers (energy chains) in dynamic axis applications. Its outer jacket is resistant to oils, coolants, and mechanical abrasion — critical properties in machine tool, packaging, and material handling environments. The cable cross-section is sized to handle the continuous and peak current demands of the AX5000 drive’s motor output stage, ensuring thermal compliance without derating under full-load servo cycles.

For control cabinet integrators replacing a failed cable on an operational machine, the ZK4000-2111-2050 requires no firmware changes, no parameter re-configuration in TwinCAT, and no modification to the motor terminal box. The replacement procedure involves disconnecting the existing cable at both the drive connector and the motor connector, routing the new cable through the existing cable management system, and reconnecting. In most cases, the machine can be returned to production within a single maintenance window, minimising production loss.

Procurement teams sourcing this cable as a critical spare should note that Beckhoff’s standard lead times for ZK4000 series cables can extend to several weeks through distribution channels during peak demand periods. TOPNLMS maintains stock of the ZK4000-2111-2050 to support urgent replacement requirements, with same-day dispatch available for confirmed orders placed before the daily cut-off. All cables are shipped with original manufacturer packaging and documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete AX5000 servo system migration typically involves more than the motor power cable alone. During the upgrade process, engineers commonly source the ZK4500 series encoder feedback cable to complete the closed-loop signal path between the AM8000 motor and the AX5000 drive. The AX5000 DC link connector set and AX5000 mains filter module are frequently replaced at the same time to bring the entire drive section up to current specification. On the controller side, the CX5140 embedded PC with TwinCAT 3 runtime replaces older CX1020 or CX1030 hardware, and the EK1100 EtherCAT Coupler with EL1008 digital input terminals and EL2008 digital output terminals handles the I/O layer. For applications requiring analogue signal conditioning during the transition period, the EL3062 analogue input terminal provides 0–10 V or 4–20 mA compatibility with legacy sensors already installed in the machine. Cabinet integrators also frequently replace the ZB8610 programming cable during a full system refresh to ensure TwinCAT connectivity is reliable throughout commissioning.

Retrofit Guidance FAQ

Q: Can the ZK4000-2111-2050 be used with motors other than the AM8000 series?
A: The ZK4000 connector system is standardised for Beckhoff AM8000 and AM8500 series motors. Use with other motor families requires verification of connector compatibility at the motor terminal box. Contact TOPNLMS for application-specific guidance.

Q: Does replacing the motor cable require any TwinCAT parameter changes?
A: No. The ZK4000-2111-2050 is a passive power cable. Replacing it does not affect drive parameters, axis configuration, or TwinCAT project files. The drive will resume normal operation after reconnection without any software intervention.

Q: Is the cable suitable for use in energy chains (cable carriers)?
A: Yes. The ZK4000 series is rated for continuous flexing applications and is compatible with standard energy chain routing. Minimum bend radius and flex cycle ratings should be confirmed against the specific energy chain geometry in your installation.

Q: What is the maximum cable length available in the ZK4000-2111 series?
A: The ZK4000-2111 series is available in multiple standard lengths. The 2050 suffix denotes 5 metres. Other lengths (e.g., 2030 for 3 m, 2100 for 10 m) are available — contact TOPNLMS to confirm stock availability for your required length.

Q: Can this cable be used during a phased migration where the AX5000 drive is installed but the motor has not yet been upgraded?
A: The ZK4000-2111-2050 is designed for use with AX5000 drives and AM8000/AM8500 motors. A phased migration that retains legacy motors would require a different cable assembly. Full system compatibility should be confirmed before ordering.

Warranty Assurance

Every Beckhoff ZK4000-2111-2050 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each cable undergoes visual inspection and packaging integrity verification to ensure it arrives in full working condition. In the event of a confirmed manufacturing defect or transit damage, TOPNLMS will arrange a replacement unit with priority handling to minimise impact on your production schedule. Our technical team is available to support pre-purchase compatibility checks, installation queries, and post-installation commissioning questions. Orders are processed and dispatched from our Xiamen warehouse, with international express freight options available for urgent requirements. We accept purchase orders from registered industrial buyers and can provide commercial invoices, packing lists, and certificates of origin for customs clearance purposes.
