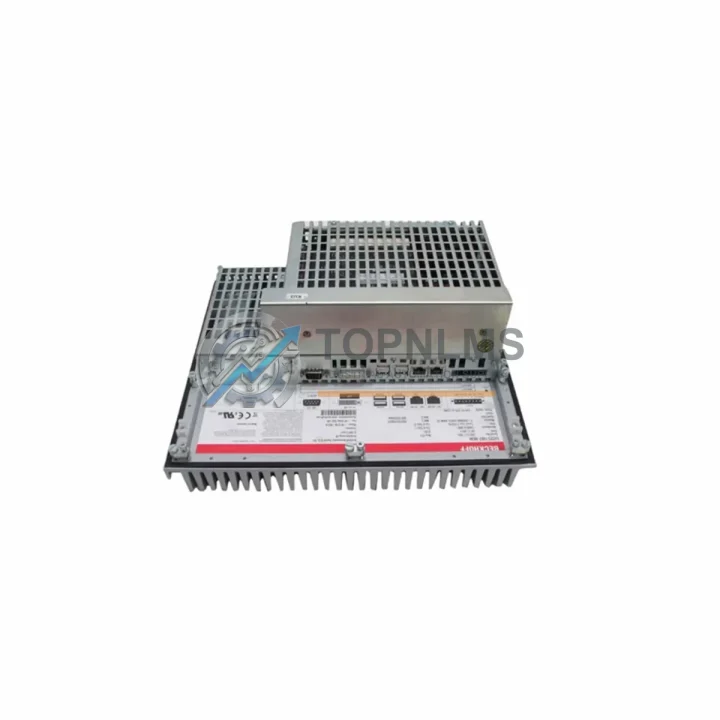

BECKHOFF C6525-1007-0030 Replacement for C6525 Series

Product Overview

BECKHOFF C6525-1007-0030 Replacement & Upgrade Solution for C6525 Series: Smooth Migration from Legacy Embedded Industrial PCs

The BECKHOFF C6525-1007-0030 is a high-performance embedded industrial PC from the C6525 series, engineered for demanding automation environments where processing power, compact form factor, and long-term reliability are non-negotiable. As legacy control systems age and original equipment manufacturers discontinue older IPC models, plant engineers and system integrators increasingly turn to the C6525-1007-0030 as a direct replacement or upgrade path for obsolete embedded controllers in existing control cabinets.

Whether you are migrating from an earlier C6525 variant, retiring a C6920 or C6930 panel PC, or replacing a third-party embedded controller that no longer meets your processing or communication requirements, the C6525-1007-0030 offers a well-documented, field-proven upgrade route that minimizes engineering rework and production downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the C6525-1007-0030 rarely involves the IPC alone. In practice, the upgrade touches multiple layers of the control architecture. During the retrofit process, engineers commonly address the EtherCAT I/O tier first. BECKHOFF EK1100 EtherCAT couplers and EL1008 / EL2008 digital I/O terminals are typically retained without modification, as the C6525-1007-0030 maintains full backward compatibility with the EtherCAT protocol stack. This means existing field wiring to terminal blocks and I/O modules can remain in place, dramatically reducing rewiring labor and commissioning time.

For sites running PROFIBUS or PROFINET alongside EtherCAT, the EL6731 PROFIBUS master terminal or EL6631 PROFINET IO device terminal can be integrated directly into the EtherCAT segment connected to the C6525-1007-0030, preserving communication with legacy field devices such as SIEMENS ET 200 distributed I/O or third-party variable frequency drives without requiring additional gateway hardware.

Power distribution within the control cabinet is another key consideration. The C6525-1007-0030 operates on 24 V DC, and in most retrofit scenarios the existing CX2100-0004 power supply unit or a compatible 24 V DIN-rail PSU can continue to serve the IPC and the EtherCAT bus coupler without modification. Where cabinet space is being reorganized as part of the upgrade, engineers often take the opportunity to install a CX2100-0014 UPS module to protect the new IPC against unplanned power interruptions and ensure a clean shutdown sequence.

Programming and commissioning the replacement unit requires a TwinCAT 3 engineering environment. The TwinCAT 3 XAE (eXtended Automation Engineering) software, installed on a standard engineering laptop connected via Ethernet or USB, allows the technician to activate the runtime on the C6525-1007-0030, import the migrated PLC project, and perform online variable mapping verification before switching to run mode. For sites still operating TwinCAT 2 projects, BECKHOFF’s migration documentation provides a structured path to convert POU libraries and task configurations with minimal manual rework.

HMI continuity is equally important during a control system modernization. Existing BECKHOFF CP6606 or CP2219 Control Panel units connected via DVI or DisplayPort remain compatible with the C6525-1007-0030’s video output, allowing the operator interface to be preserved while the controller is replaced. Where the HMI is hosted on a separate panel PC such as a CP3916 or CP6916, the TwinCAT ADS communication layer ensures seamless data exchange with the new IPC over standard Ethernet without changes to the SCADA or visualization project.

Signal integrity and isolation are frequently reviewed during a retrofit. Where legacy wiring introduces ground loops or noise on analog input channels, EL3174 analog input terminals with galvanic isolation or EL3314 thermocouple input terminals can be added to the existing EtherCAT segment to resolve measurement accuracy issues that may have been tolerated on the older system but are unacceptable in a modernized architecture.

Retrofit Guidance FAQ

Q: Can I reuse the existing field wiring when replacing with the C6525-1007-0030?
A: In the vast majority of cases, yes. The C6525-1007-0030 connects to field I/O through EtherCAT terminals (EK/EL series), and the terminal wiring is independent of the IPC itself. As long as the EtherCAT coupler and terminal configuration remain unchanged, all field wiring is preserved. Only the Ethernet cable between the IPC and the first EK1100 coupler needs to be reconnected.

Q: Do I need to rewrite my PLC program?
A: Not necessarily. If your existing project runs on TwinCAT 3, it can typically be reactivated on the C6525-1007-0030 with minimal changes — primarily adjusting the target system AMS Net ID and verifying task cycle times against the new CPU performance. TwinCAT 2 projects require migration to TwinCAT 3 using BECKHOFF’s migration wizard, which automates most of the conversion but requires validation of function block behavior and timing.

Q: Is the communication protocol compatible with my existing SCADA system?
A: The C6525-1007-0030 supports OPC UA, ADS over TCP/IP, PROFINET (via EL6631), PROFIBUS (via EL6731), and Modbus TCP natively through TwinCAT 3. Most SCADA systems communicating with the legacy IPC via ADS or OPC DA can be reconfigured to connect to the new IPC by updating the server endpoint address, without changes to tag mappings or historian configurations.

Q: Will the C6525-1007-0030 fit in my existing control cabinet?
A: The C6525 series has a compact embedded form factor designed for cabinet mounting. In most standard 19″ or custom steel enclosures previously housing a C6920 or C6930, the C6525-1007-0030 fits with space to spare. Confirm the available depth and the position of the existing cable entry points. DIN-rail mounting accessories are available for flexible positioning within the enclosure.

Q: What happens to my existing I/O configuration during the upgrade?
A: The EtherCAT I/O configuration — EK/EL terminal layout, process image, and variable mapping — is stored in the TwinCAT project file, not in the IPC hardware. When the project is activated on the C6525-1007-0030, TwinCAT scans the EtherCAT segment and matches the detected terminals against the project configuration. If the physical terminal layout is unchanged, the I/O mapping is restored automatically without manual re-assignment.

Q: How do I handle the OS migration from Windows Embedded Standard 7?
A: The C6525-1007-0030 ships with Windows 10 IoT Enterprise or Windows 11 IoT. A fresh OS installation is standard practice. The TwinCAT 3 runtime is installed on the new OS, and the PLC project is transferred via the TwinCAT XAE engineering environment. Application-layer software — SCADA clients, OPC servers, custom HMI applications — must be reinstalled and validated on the new OS before go-live.

Warranty Assurance

Every BECKHOFF C6525-1007-0030 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment inspection that verifies power-on behavior, interface integrity, and basic TwinCAT runtime activation. Units that do not pass inspection are not shipped.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund, subject to return inspection. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance throughout the warranty period and beyond.

We maintain stock of the C6525-1007-0030 and related C6525 series components to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment from Xiamen, China, with express options available for critical downtime situations. All units are shipped with appropriate ESD-protective packaging and full export documentation.

For procurement inquiries, compatibility verification, or bulk order pricing, contact our industrial automation team directly.
