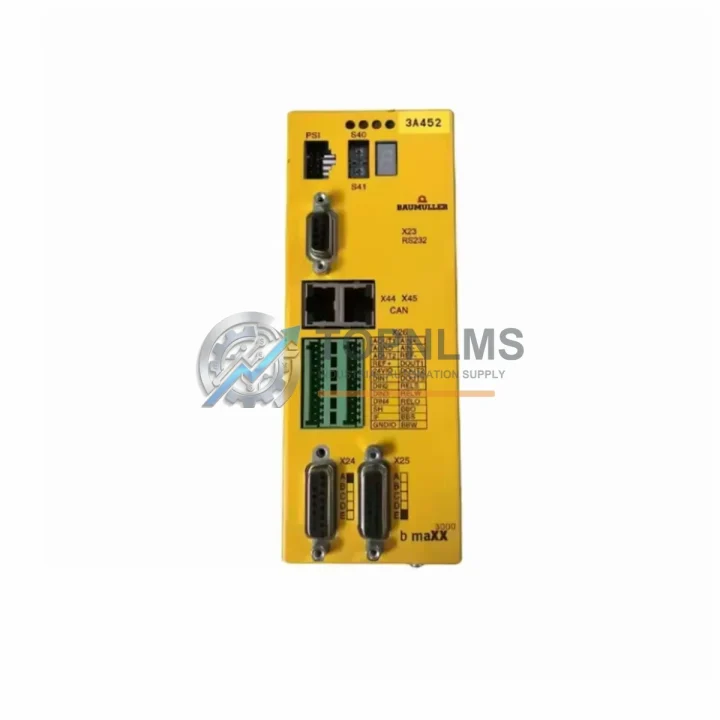

BAUMULLER BM3401-L1OOO-AEO00CB Replacement for BM3400

Product Overview

BAUMULLER BM3401-L1OOO-AEO00CB Replacement for BM3400: Seamless Transition & Legacy System Compatibility

When your existing BAUMULLER BM3400 series AC servo drive reaches end-of-life or suffers an unexpected failure, production downtime becomes your most critical cost. The BM3401-L1OOO-AEO00CB-O-00-O-0172-000 is a direct-fit replacement and upgrade solution engineered for smooth migration from legacy BM3400 platform installations — preserving your existing wiring topology, motor feedback interface, and communication architecture without requiring a full system redesign.

This unit is purpose-built for industrial environments where continuity matters: existing cabinet footprints, 24 VDC control supply rails, and established PROFIBUS DP or CANopen network segments are all retained. Engineers migrating from earlier BM3400 variants such as the BM3401-L1OOO-AEO00CA or BM3401-L0OOO-AEO00CB will find that the X1 motor power connector pinout, X2 resolver/encoder feedback port, and X3 control terminal block remain dimensionally and electrically compatible, significantly reducing re-wiring labour on the shop floor.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful BM3400 drive replacement rarely involves the servo drive in isolation. During commissioning, engineers typically audit the surrounding system components to ensure the entire motion control chain is migration-ready. The following components are commonly evaluated alongside the BM3401-L1OOO-AEO00CB-O-00-O-0172-000 during a retrofit project:

The BAUMULLER BM4400 servo controller (master axis controller) communicates with the BM3401 via the internal BAUMULLER system bus; verifying firmware compatibility between the controller and the replacement drive is a mandatory pre-commissioning step. Where the existing BM3401 braking resistor module is mounted externally on the cabinet backplate, its thermal rating and connection terminals should be inspected before energising the replacement unit.

On the feedback side, the BAUMULLER DST4 resolver-based servo motor paired with the original drive uses a 12-pin Sub-D feedback cable; this cable assembly is reusable with the replacement unit without modification. If the site has migrated to absolute encoders, the BAUMULLER BM3401 EnDat 2.2 feedback option card can be fitted to the replacement drive to support Heidenhain or Sick absolute encoder protocols.

For PROFIBUS DP network segments, the existing PROFIBUS DP termination resistor plug and bus cable shielding arrangement remain valid. Sites running CANopen topologies should confirm the node address DIP switch settings on the replacement unit match the original drive’s network configuration before going live. Where a BAUMULLER BM3200 power supply module feeds the DC bus, its output voltage and current capacity should be verified against the replacement drive’s rated input requirements.

Cabinet-level integration often involves a BAUMULLER BM3401 I/O expansion terminal block for digital enable signals, fault relay outputs, and analogue speed references. These terminal assignments are preserved in the replacement unit’s X3 connector, allowing the existing PLC output card — whether a Siemens S7-300 DO module or a Beckhoff EL2008 — to interface without rewiring. Where signal isolation is required between the PLC and the drive’s analogue input, a Phoenix Contact MCR-SL signal isolator or equivalent DIN-rail isolator is commonly inserted in the signal chain.

Finally, for programming and parameter cloning, the BAUMULLER ProDrive commissioning software (PC-based, USB or RS232 interface) is used to upload the parameter set from the outgoing drive — if still operational — and download it to the replacement unit. This eliminates manual parameter re-entry and reduces commissioning time from hours to minutes.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor power cable?
Yes. The X1 motor power connector pinout (U, V, W, PE) is identical to earlier BM3400 variants. No rewiring is required provided the cable insulation and terminations are in good condition.

Q: Will my PROFIBUS DP address settings carry over?
The node address is set via DIP switches on the drive front panel. Record the existing address before removing the old unit and replicate the setting on the replacement drive prior to network reconnection.

Q: Is the physical cabinet space the same?
Yes. The BM3401-L1OOO-AEO00CB-O-00-O-0172-000 shares the same panel-mount footprint and mounting hole pattern as the outgoing BM3400 series unit, eliminating the need for cabinet modification.

Q: How do I clone parameters from the failed drive?
If the original drive is still partially functional, use BAUMULLER ProDrive software to export the parameter file via USB. If the drive is completely failed, parameters must be re-entered manually from the original commissioning sheet or reconstructed from the machine’s electrical documentation.

Q: What communication protocols are supported?
PROFIBUS DP and CANopen are natively supported. EnDat 2.2 and SSI absolute encoder protocols are available via optional feedback cards. Confirm the option card part number matches your encoder type before ordering.

Warranty Assurance

Every BM3401-L1OOO-AEO00CB-O-00-O-0172-000 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional power-on test and visual inspection to verify connector integrity, firmware version, and absence of physical damage. Units are packed in anti-static foam with moisture-barrier outer packaging to ensure safe transit.

In the event of a warranty claim, TOPNLMS provides a replacement-first policy: a replacement unit is dispatched upon receipt and inspection of the returned item, minimising your production downtime. Our after-sales response target is within 24 hours on business days. For urgent breakdown situations, expedited shipping options are available from our Xiamen warehouse.
