BANNER QS18VN6LP Ruggedized Diffuse Photoelectric Sensor

Product Overview

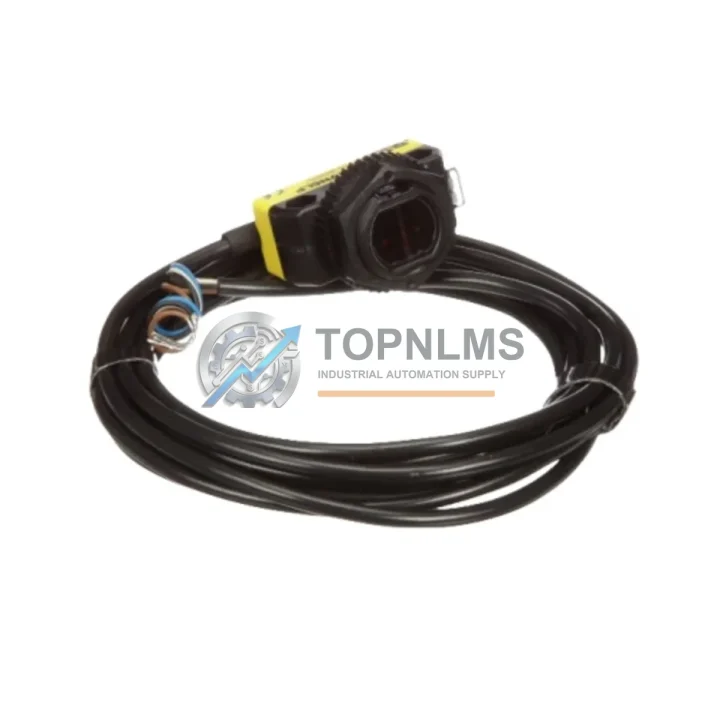

BANNER QS18VN6LP Ruggedized Diffuse Photoelectric Sensor for Harsh Industrial Environments

The BANNER QS18VN6LP is a compact, high-performance diffuse photoelectric sensor from BANNER Engineering’s renowned QS18 MiniSight Series. Engineered for continuous operation in demanding industrial environments, this sensor delivers exceptional detection reliability in the presence of high ambient temperatures, mechanical vibration, airborne particulates, and electromagnetic interference — conditions routinely encountered across oil & gas facilities, mining operations, metal processing plants, water treatment stations, and heavy manufacturing lines.

With its rugged thermoplastic housing rated to IP67, the QS18VN6LP withstands direct water ingress, heavy dust accumulation, and chemical splash without compromising sensing accuracy. Its visible red LED emitter provides a stable, focused sensing beam ideal for detecting opaque and diffusely reflective targets at distances up to 200 mm, making it a dependable choice for part-presence detection, conveyor positioning, and machine guarding on high-speed production lines.

The sensor operates across a wide supply voltage range of 10–30 V DC, ensuring seamless integration with standard 24 V DC industrial control architectures. Its NPN/PNP selectable output and push-pull configuration allow direct wiring to virtually any PLC digital input module — including Siemens S7-300/S7-400 SM321 I/O modules, Allen-Bradley 1756 ControlLogix digital input cards, and Mitsubishi MELSEC QX series input modules — without the need for additional signal conditioning hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the QS18VN6LP rarely operates in isolation. On a typical automated production line, it works in concert with a full suite of protection, control, and communication components to ensure system-wide reliability. The sensor’s digital output feeds directly into Siemens S7-300 SM321 digital input modules or Allen-Bradley 1756-IB16 ControlLogix input cards, where the PLC logic interprets object-presence signals and triggers downstream actuators or conveyor drives.

In high-vibration environments such as stamping presses or mining conveyors, the QS18VN6LP is typically mounted alongside BANNER K50 series indicator lights and BANNER DX80 wireless I/O nodes, enabling remote status monitoring without additional cabling runs through hazardous zones. For installations requiring intrinsic safety or ATEX compliance in Zone 2 classified areas, the sensor is paired with Pepperl+Fuchs KFD2 series Zener barriers or MTL5000 series galvanic isolators to protect both the field device and the control cabinet from fault currents.

Power integrity is maintained through PHOENIX CONTACT QUINT-PS 24 V DC power supplies, which provide regulated, filtered DC power with built-in SFB (Selective Fuse Breaking) technology — critical when multiple sensors and I/O modules share a common rail. On the communication side, the sensor’s status can be aggregated through Siemens ET 200SP distributed I/O stations or Beckhoff EK1100 EtherCAT couplers, transmitting real-time field data to the central DCS or SCADA system over PROFINET or EtherCAT protocols.

For safety-rated applications, the QS18VN6LP is deployed upstream of Pilz PNOZ X series safety relays or Siemens SIRIUS 3SK1 safety relay modules, where its output serves as a machine-guarding input to enforce SIL 2 / PLd safety functions. Terminal connections within the control cabinet are managed through Phoenix Contact CLIPLINE complete terminal blocks, ensuring clean, vibration-proof wiring that meets IEC 60947-7-1 standards.

Application in Critical Infrastructure

The BANNER QS18VN6LP has established a strong track record across the most demanding sectors of critical infrastructure. In oil & gas upstream and midstream facilities, it monitors pig launcher/receiver positions and valve actuator feedback on wellhead control panels, where ambient temperatures can swing from -30°C in winter shutdowns to +60°C during summer operations. Its IP67 sealing and wide thermal range make it a preferred choice over standard industrial sensors in these environments.

In underground coal and metal mining operations, the sensor is deployed on belt conveyor systems to detect material spillage, belt misalignment, and chute blockages. Its resistance to coal dust ingress and its immunity to the high-frequency electrical noise generated by variable frequency drives (VFDs) — such as the ABB ACS880 series or Siemens SINAMICS G120 — ensures consistent detection performance without nuisance trips.

At municipal water treatment and wastewater facilities, the QS18VN6LP monitors float levels, screen positions, and pump seal integrity in environments characterized by high humidity, chlorine vapors, and continuous wash-down cycles. Its IP67 rating and corrosion-resistant housing allow it to be mounted directly in wet zones without additional enclosure protection.

In steel mills and aluminum smelters, where radiant heat, metal splash, and intense electromagnetic fields from arc furnaces challenge conventional sensors, the QS18VN6LP’s robust EMI immunity and high-temperature tolerance enable reliable billet detection, ladle positioning, and rolling mill part-presence verification — functions where sensor failure can result in costly production stoppages or safety incidents.

For power generation and electrical substation applications, the sensor provides position feedback on circuit breaker mechanisms and transformer tap-changer assemblies, where long-term reliability and minimal maintenance are non-negotiable requirements for grid stability.
