BALZERS BGG26000 FL-9496 Original Industrial Spare PVD Compatible: System Stability for High-Vacuum & PVD Environments

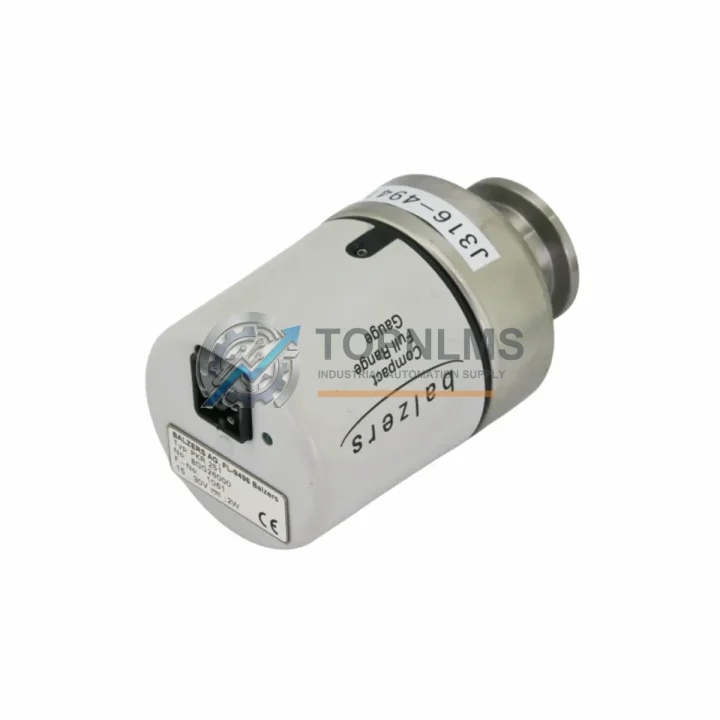

The BALZERS BGG26000 (cross-references: FL-9496 / E-E15004080 / PVD300 / 16-144558-00) is a compact full-range vacuum gauge engineered for precision pressure measurement across the entire vacuum spectrum — from atmospheric pressure down to ultra-high vacuum. In PVD coating systems, semiconductor process chambers, and industrial thin-film deposition lines, this gauge serves as the primary pressure reference for process control, interlock logic, and pump sequencing. Maintaining a verified spare on the shelf is not optional — it is a core element of any responsible maintenance strategy for facilities where unplanned downtime carries significant production and financial consequences.

This listing supplies an original BALZERS BGG26000 unit, sourced through verified industrial channels, inspected prior to dispatch, and backed by a 12-month warranty. Each unit ships with full functional verification documentation. Lead time is typically 2–5 business days for in-stock units, with express options available for critical breakdown situations.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Vacuum System Beyond the Gauge

When a BGG26000 gauge fails or drifts out of calibration, the root cause is rarely the gauge alone. In most PVD and high-vacuum installations, the gauge is part of an interconnected measurement and control chain. A thorough maintenance inspection should extend to the full vacuum circuit and control architecture.

Begin with the vacuum pump set: the turbomolecular pump (such as a BALZERS TPH or Pfeiffer HiPace series) and its backing rotary vane pump should be inspected for oil condition, bearing noise, and ultimate pressure performance. A degraded pump will cause the BGG26000 to read anomalous pressures even when the gauge itself is functional. Simultaneously, inspect the high-vacuum gate valve and its pneumatic actuator — a leaking valve seat is a common source of false pressure readings that are often misattributed to gauge failure.

The gauge controller or vacuum gauge display unit — such as the BALZERS TPG256 or TPG262 multi-gauge controller — should be verified for firmware integrity and calibration offset. If the BGG26000 is being replaced, recalibrate the controller channel to factory defaults before commissioning the new gauge. While the controller is open, inspect the gauge cable assembly (typically a 15-pin D-sub or proprietary BALZERS connector) for pin corrosion, insulation damage, and secure seating — cable faults account for a disproportionate share of apparent gauge failures in field service.

In PVD300 and similar coating systems, the vacuum interlock logic is typically managed by a PLC analog I/O module that reads the analog output of the BGG26000 and triggers pump sequencing, process start/stop, and alarm outputs. During a gauge replacement, verify the analog input channel scaling on the PLC — incorrect scaling will cause the system to misinterpret the new gauge’s output. If your facility uses a Siemens S7-300 or S7-400 series PLC with SM331 or SM332 analog I/O modules, confirm the 0–10V input range is correctly configured in the hardware configuration. This is also an appropriate time to inspect the 24VDC power supply module feeding the gauge and its associated I/O rack — power supply degradation is a silent contributor to measurement instability.

For facilities managing multiple vacuum chambers, a signal isolator or signal conditioner between the gauge output and the PLC analog input is strongly recommended to eliminate ground loop interference, particularly in environments with high-power RF or arc sources. Inspect existing isolators for drift and replace on a 3–5 year cycle. Additionally, review the terminal block and wiring duct condition inside the control cabinet — loose terminations on the gauge signal circuit are a frequent cause of intermittent pressure reading faults that are difficult to diagnose without systematic inspection.

Finally, if your system includes a residual gas analyzer (RGA) or mass spectrometer for process gas monitoring, cross-reference its baseline spectrum against the BGG26000 reading during commissioning of the replacement gauge. Discrepancies between the two instruments can reveal virtual leaks, outgassing sources, or contamination that would otherwise go undetected until they affect product yield.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The BGG26000 has been a standard component in BALZERS PVD and high-vacuum systems for over two decades. Many facilities operating PVD300, BAK series, and early Leybold-Heraeus derived platforms continue to rely on this gauge as the primary process pressure reference. As OEM production of legacy vacuum components becomes increasingly constrained, sourcing verified original spares through specialist industrial channels is the most reliable strategy for maintaining system uptime without costly platform upgrades.

Replacing a BGG26000 with a non-original or incompatible gauge introduces calibration offset risk, connector incompatibility, and potential interlock logic errors — all of which can result in process failures, product scrap, or equipment damage. An original replacement unit, correctly installed and calibrated, restores full system functionality with zero software or hardware modification. For facilities managing aging vacuum systems under a lifecycle extension program, maintaining a buffer stock of 1–2 BGG26000 units eliminates the risk of extended lead times during critical production periods.

TOPNLMS supplies BGG26000 units with pre-shipment functional verification, ESD-safe packaging, and a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Orders placed before 14:00 CST on business days are processed same day. Express courier options (DHL Express, FedEx International Priority) are available for breakdown emergencies.
