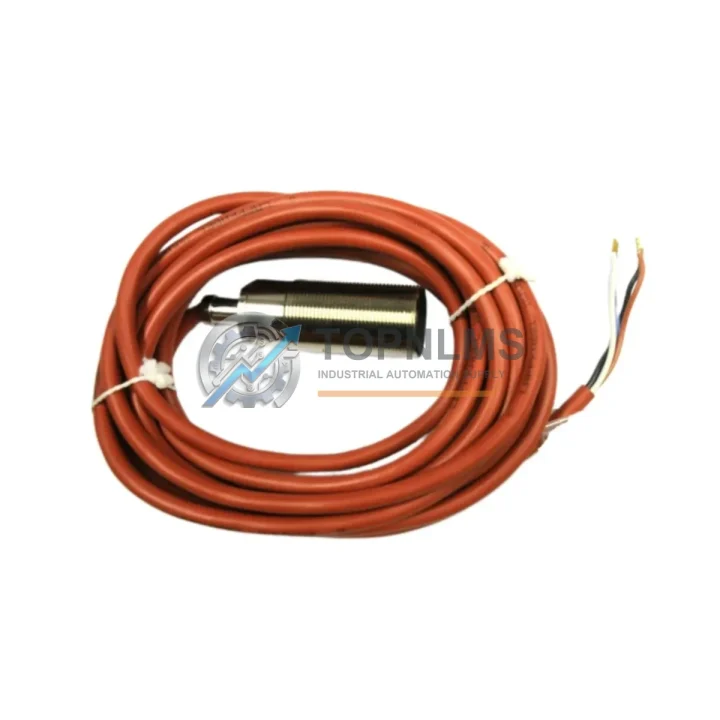

Balluff BES 516-114-SA1-05 Original Industrial Spare BES 516 Compatible

Product Overview

Balluff BES 516-114-SA1-05: System Stability and Industrial Spare Parts Maintenance Value

The Balluff BES 516-114-SA1-05 is a high-precision inductive proximity sensor from Balluff’s proven BES 516 series, engineered for demanding industrial automation environments. Whether you are managing a scheduled shutdown, responding to an unplanned line stoppage, or building a strategic spare parts inventory, this sensor delivers the detection reliability and installation compatibility that maintenance engineers depend on. Sourced directly from authorized supply channels, each unit is tested prior to dispatch and backed by a 12-month warranty, giving procurement teams and plant engineers the confidence to act decisively.

In modern manufacturing facilities — from automotive body shops and metal stamping lines to food processing conveyors and packaging machinery — inductive proximity sensors are among the highest-turnover components in any control cabinet. The BES 516-114-SA1-05 is a flush-mount, cylindrical M12 sensor with a standard 4-pin M12 connector, making it a direct drop-in replacement for aging or failed units without requiring rewiring or mechanical modification. Its German-engineered construction ensures consistent switching behavior across temperature extremes, vibration, and exposure to cutting fluids or machine oils — conditions that accelerate wear on lower-grade alternatives.

Critical Technical Specs

Preventive Maintenance Strategy

Proximity sensors like the BES 516-114-SA1-05 rarely fail in isolation. In most industrial maintenance scenarios, a failed or degraded sensor is a symptom of broader wear across the sensing circuit and the control system it feeds. A disciplined preventive maintenance approach treats sensor replacement as an opportunity to audit the surrounding components and pre-empt the next failure.

When replacing a BES 516-114-SA1-05 on a conveyor or press line, maintenance teams should simultaneously inspect the M12 sensor cables and cordsets connecting the sensor to the junction box or I/O terminal. Balluff’s BCC series M12 connection cables are the standard mating cordset for this sensor family; damaged or oil-soaked cable jackets are a leading cause of intermittent signal faults that are often misdiagnosed as sensor failure. Replacing the sensor without inspecting the cable leaves the root cause unresolved.

At the control cabinet level, the digital input module receiving the sensor signal — typically a 24 V DC PNP input channel on a Siemens ET 200SP, Allen-Bradley 1734 POINT I/O, or equivalent distributed I/O module — should be verified for correct input voltage and response time. A degraded input channel can mask a healthy sensor’s output or cause false triggering. If the cabinet also houses a Balluff BNI fieldbus node or IO-Link master module, firmware and configuration should be confirmed against the current machine program.

Power supply stability is equally critical. The BES 516-114-SA1-05 operates on 10–30 V DC, but sustained voltage sag below 18 V in a loaded cabinet can cause marginal switching behavior. A PULS, Phoenix Contact, or WAGO 24 V DC power supply module serving the sensor circuit should be load-tested during the maintenance window. Aging power supplies with high output ripple are a common hidden cause of sensor instability in older control panels.

For machines using Balluff’s BIS RFID identification systems or BVS vision sensors in the same production cell, the maintenance visit is an efficient time to clean sensor faces, verify mounting torque on M12 locknuts, and confirm that no mechanical interference has shifted sensing distances out of tolerance. Similarly, if the machine uses Balluff BAM mounting brackets or BES mounting sleeves, thread condition and bracket rigidity should be checked — a loose bracket causes positional drift that no sensor replacement can correct.

Finally, terminal blocks and relay modules in the sensor signal circuit — particularly Phoenix Contact or Weidmüller screw-clamp terminal strips — should be inspected for loose connections and corrosion. A single high-resistance terminal connection in a 24 V sensor circuit can produce voltage drop sufficient to cause output instability, and this fault is invisible to standard PLC diagnostics.

Strategic Replacement Solutions

The BES 516-114-SA1-05 is a well-established part number within Balluff’s BES 516 cylindrical sensor family, a series that has been in continuous production for over two decades. This longevity means it is present in a large installed base of machines — many of which are now operating beyond their original design life. For maintenance engineers managing aging lines, the availability of original BES 516-114-SA1-05 units is a direct enabler of system life extension without the cost and risk of a full machine retrofit.

Unlike generic or aftermarket proximity sensors, the original Balluff BES 516-114-SA1-05 maintains the exact switching hysteresis, temperature coefficient, and EMC characteristics specified in the original machine design. This matters in high-speed applications where switching repeatability directly affects product quality or cycle time. Substituting a non-original sensor — even one with nominally identical specifications — introduces uncertainty that is difficult to validate without full machine re-commissioning.

For facilities managing multiple lines with BES 516 series sensors, a strategic buffer stock of 2–5 units per sensor variant significantly reduces mean time to repair (MTTR) during unplanned stoppages. Given the sensor’s compact M12 form factor and stable shelf life when stored in original packaging at controlled temperature, buffer stocking carries minimal carrying cost relative to the downtime risk it mitigates. Procurement teams sourcing BES 516-114-SA1-05 in quantities of 5 or more are encouraged to contact us for volume pricing.

For older machines where the original BES 516-114-SA1-05 mounting thread or connector type has been superseded, Balluff’s current BES M12 series offers backward-compatible alternatives with identical mechanical footprint and electrical interface, allowing seamless substitution without panel rewiring or PLC program changes.

Support FAQ

Q1: Is this an original Balluff BES 516-114-SA1-05 or an aftermarket replacement?
This is an original Balluff BES 516-114-SA1-05 sourced through authorized industrial supply channels. Each unit carries Balluff’s original part markings and is supplied in original or equivalent protective packaging. A 12-month warranty is included from the date of shipment.

Q2: How is the unit tested before shipment?
Each BES 516-114-SA1-05 is functionally tested prior to dispatch, verifying output switching, supply voltage response, and connector integrity. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q3: Can this sensor replace other BES 516 variants, and how do I verify compatibility?
The BES 516-114-SA1-05 is a specific variant within the BES 516 family defined by its sensing range, output type (PNP NO), and connector configuration (M12 4-pin, 0.5 m cable). Compatibility with other BES 516 variants depends on matching these parameters to your machine’s wiring and PLC input configuration. If you are unsure, share your existing sensor label or machine documentation and our technical team will confirm compatibility before shipment.

Q4: What is the lead time, and do you support urgent maintenance orders?
In-stock units ship within 1–2 business days. For urgent maintenance situations involving line stoppages, contact us directly at [email protected] or +86 18359293191 to confirm stock availability and arrange priority dispatch. We support customers across Asia, Europe, and the Americas with DHL Express and TNT international shipping options.
