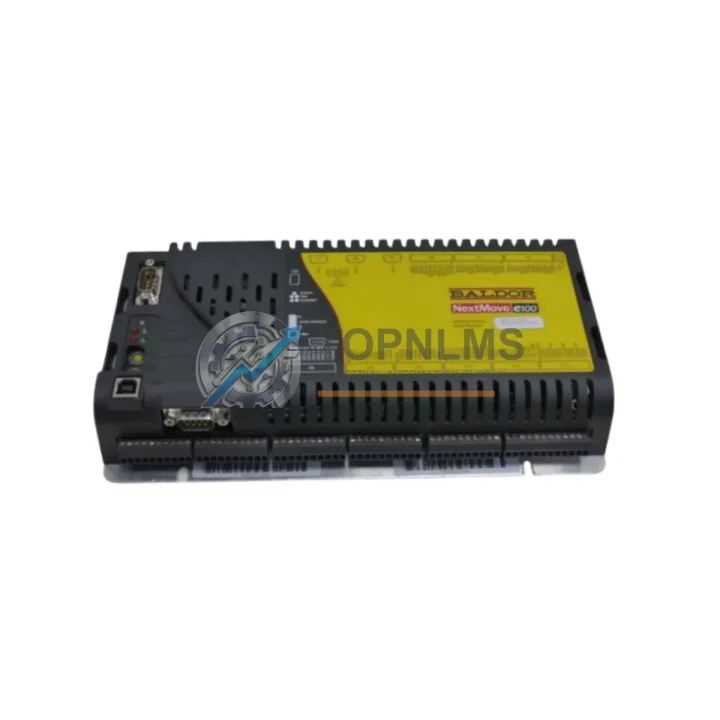

Baldor NXE100-1616S Ruggedized 16-Axis Servo Motion Controller

Product Overview

Baldor NXE100-1616S Ruggedized 16-Axis Servo Motion Controller: Industrial Resilience for the Most Demanding Environments

The Baldor NXE100-1616S is a high-performance, 16-axis servo motion controller from the renowned NextMove e100 series, engineered to deliver precise, synchronized multi-axis motion control in environments where reliability is non-negotiable. Designed for continuous operation in high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically hostile industrial settings, the NXE100-1616S represents the gold standard for ruggedized motion control in heavy industry.

Whether deployed on a high-speed packaging line, a precision CNC machining center, a steel rolling mill, or a petrochemical process train, the NXE100-1616S maintains deterministic control performance without compromise. Its robust hardware architecture and advanced firmware make it a trusted backbone for coordinating servo drives, spindle drives, and auxiliary axes in mission-critical applications where unplanned downtime carries severe operational and financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The NXE100-1616S does not operate in isolation — it is the nerve center of a broader motion and control architecture. In a typical high-availability control cabinet, it works in close coordination with Baldor MintDrive II servo drives, which handle the power stage for each individual axis, translating the controller’s position and velocity commands into precise torque output. The servo drives connect back to the NXE100-1616S via EtherCAT, ensuring sub-millisecond cycle times even across all 16 axes simultaneously.

For safe and reliable power delivery to the controller and its associated drives, a Baldor 24 VDC industrial power supply or equivalent DIN-rail-mounted SMPS unit is recommended within the same cabinet. Stable, clean DC power is essential in environments with heavy motor loads, where voltage transients and harmonic disturbances are common. Pairing the NXE100-1616S with a line filter or EMC choke on the incoming AC supply further suppresses conducted interference that could otherwise corrupt encoder feedback signals or communication bus integrity.

On the I/O side, the controller interfaces with digital I/O expansion modules and terminal block assemblies to aggregate field signals from proximity sensors, limit switches, safety light curtains, and emergency stop circuits. In safety-rated installations, a dedicated safety relay module — such as a Pilz PNOZ or equivalent — is typically wired in series with the drive enable chain, ensuring that any safety event immediately de-energizes the servo amplifiers without relying on the motion controller’s software response time.

Communication integrity across the plant floor is maintained through industrial Ethernet switches with managed QoS settings, ensuring that EtherCAT traffic from the NXE100-1616S is not disrupted by other network loads. In facilities where legacy fieldbus infrastructure is still in use, the controller’s CANopen interface allows seamless integration with older Baldor BSM servo motors, encoder feedback units, and third-party variable frequency drives (VFDs) operating on the same bus segment.

For applications requiring coordinated motion between the NXE100-1616S and a supervisory PLC or DCS — such as a Siemens S7-300/400 or an Allen-Bradley ControlLogix — the controller’s Ethernet port supports standard industrial protocols, enabling seamless handshaking for start/stop commands, fault acknowledgment, and production recipe management. This makes the NXE100-1616S an ideal motion coprocessor within larger distributed control architectures.

Application in Critical Infrastructure

In oil and gas processing facilities, the NXE100-1616S is deployed to control multi-axis valve actuator test rigs, compressor skid positioning systems, and pipeline inspection equipment. Its deterministic EtherCAT communication ensures that position feedback from each axis is processed within a fixed scan cycle, a requirement for safety-instrumented systems operating under IEC 61511 guidelines.

In mining and mineral processing operations, the controller manages conveyor drive synchronization, crusher feed rate control, and flotation cell agitator positioning. The ability to coordinate 16 axes simultaneously allows a single NXE100-1616S to replace multiple standalone motion controllers, reducing cabinet footprint and simplifying maintenance in remote, access-restricted sites.

In power generation and electrical utilities, the NXE100-1616S is used in turbine blade inspection robots, transformer winding machines, and switchgear assembly lines. Its high-resolution encoder interface supports the sub-micron positioning accuracy required for precision electrical component manufacturing.

In water and wastewater treatment plants, the controller manages multi-pump sequencing, filter press automation, and UV disinfection system positioning. Its wide operating temperature range and humidity tolerance make it suitable for installation in outdoor equipment enclosures and wet-area control rooms.

In metallurgy and steel production, the NXE100-1616S coordinates rolling mill pass schedules, coiler tension control, and slab transfer positioning. The controller’s ability to handle high-inertia load profiles and rapid velocity reversals — common in heavy metal forming — makes it a preferred choice for modernization projects replacing obsolete motion control hardware.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Baldor NXE100-1616S?
All NXE100-1616S units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers hardware defects, functional failures under normal operating conditions, and firmware-related issues attributable to the unit itself. Warranty claims are processed promptly, with replacement or repair options available depending on fault diagnosis.

Q2: How is each unit tested before shipment?
Every NXE100-1616S undergoes a pre-shipment functional verification process that includes power-on self-test, communication interface checks (EtherCAT, CANopen, Ethernet), I/O continuity verification, and encoder interface validation. Units that do not pass all test criteria are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: Is the NXE100-1616S compatible with existing Baldor NextMove e100 system architectures?
Yes. The NXE100-1616S is fully compatible with the Baldor NextMove e100 platform, including existing MintDrive II servo drives, Mint Motion Language programs, and BSM series servo motors. It can be integrated as a direct replacement for earlier NextMove e100 variants without requiring changes to the servo drive configuration or motion program structure, minimizing commissioning time during spare-part replacement.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
TOPNLMS maintains strategic stock of Baldor NXE100-1616S units to support both planned maintenance schedules and emergency breakdown scenarios. For facilities operating continuous production lines where a motion controller failure results in immediate line stoppage, we offer priority dispatch with same-day or next-day shipping for in-stock units. Long-term supply agreements and consignment stock arrangements are available for high-volume or critical-infrastructure customers.
