BACHMANN SCT202 Original Industrial Spare M1 Compatible: System Stability Through Certified Safety Counter Technology

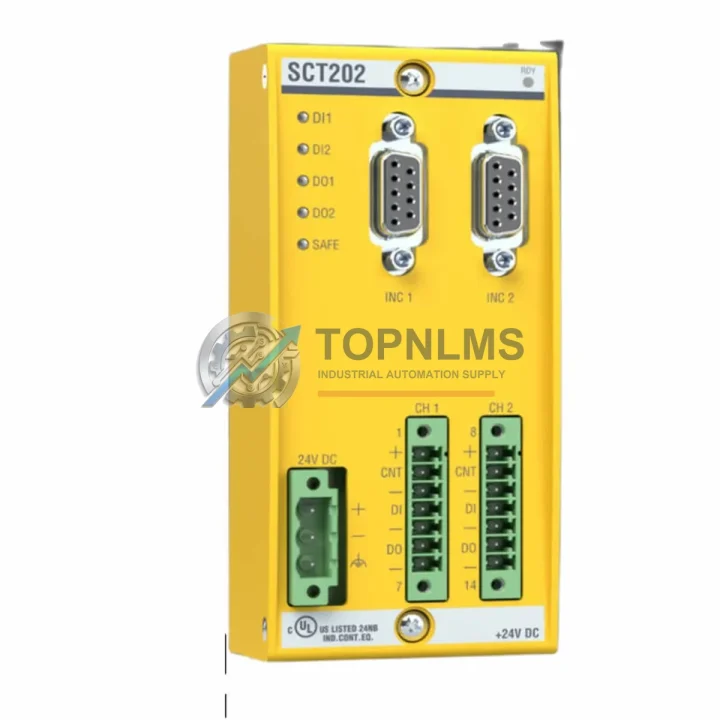

The BACHMANN SCT202 is a SIL 2 / PLd-certified safety counter input module engineered for the BACHMANN M1 automation platform. In industrial environments where encoder feedback, speed monitoring, and position counting are mission-critical, the SCT202 delivers the functional safety performance required to maintain continuous, reliable operation. Whether you are managing a scheduled maintenance window, responding to an unplanned shutdown, or building a strategic spare parts inventory, the SCT202 represents a direct, drop-in replacement that preserves your existing system architecture without requiring re-engineering or re-certification of the broader safety loop.

Sourced directly from authorized supply channels, every SCT202 unit offered by TOPNLMS is tested prior to dispatch, ships with full documentation, and is backed by a 12-month warranty. Our logistics infrastructure supports rapid worldwide fulfillment, minimizing the downtime exposure that comes with waiting for hard-to-source safety-rated components.

Critical Technical Specs

Preventive Maintenance Strategy

A safety counter input module like the SCT202 sits at the intersection of motion feedback and functional safety logic. Its health directly affects the integrity of speed monitoring, overspeed protection, and position-based safety functions across the M1 system. A disciplined preventive maintenance approach should treat the SCT202 not in isolation, but as part of a broader safety-rated subsystem inspection.

During scheduled maintenance cycles, technicians inspecting the SCT202 should simultaneously verify the condition of the encoder cables and shielded signal wiring connected to its inputs — degraded cable insulation or loose terminal connections are a leading cause of spurious counter faults that can trigger unnecessary safety shutdowns. The M1 backplane power supply module (such as the BACHMANN MPC240 or equivalent M1 CPU/power unit) should be checked for stable 24 V DC output, as voltage ripple can corrupt high-frequency counter signals. If the installation includes a BACHMANN DIO216 or similar digital I/O module handling safety-rated discrete signals in the same control cabinet, its terminal blocks and field wiring should be inspected at the same interval.

For systems using BACHMANN M1 communication modules — such as PROFIBUS, PROFINET, or EtherCAT interface cards — firmware version alignment with the SCT202’s safety library version should be confirmed during any module replacement. Mismatched firmware between the safety counter module and the M1 CPU module can cause diagnostic errors that are difficult to trace without a spare module on hand for substitution testing.

In control cabinets housing the M1 rack, it is good practice to inspect the 24 V DC fuse modules and circuit breakers protecting the encoder power supply lines. A blown fuse on the encoder supply will disable the SCT202 inputs without triggering an obvious fault on the HMI, making a spare fuse module an inexpensive but critical stock item. Similarly, signal isolators or surge protection devices installed between field encoders and the SCT202 inputs should be tested for proper attenuation and continuity — these components degrade silently over time in electrically noisy industrial environments.

For facilities running BACHMANN M1-based wind turbine controllers, press safety systems, or conveyor drive applications, maintaining at least one SCT202 as a cold spare is strongly recommended. The module’s SIL 2 certification means that replacement units must be sourced from verified supply chains — substituting with uncertified alternatives invalidates the safety function and creates compliance liability. Pairing your SCT202 spare with a spare M1 CPU module and a set of pre-terminated encoder cables ensures that a complete safety counter subsystem can be restored within a single maintenance shift.

Strategic Replacement Solutions

The SCT202 is a direct replacement for earlier BACHMANN M1 counter input modules that lack SIL 2 certification. Facilities operating legacy M1 racks with older, non-safety-rated counter modules can upgrade to the SCT202 to bring their safety architecture into compliance with IEC 62061 and ISO 13849-1 without replacing the M1 rack, CPU, or communication infrastructure. This makes the SCT202 a cost-effective path to safety system modernization in plants where a full control system replacement is not yet budgeted.

Because the SCT202 mounts directly into the standard M1 backplane slot and communicates over the M1 internal bus, the replacement procedure requires no additional wiring adapters or software re-engineering beyond updating the safety application project in the BACHMANN SolutionCenter engineering environment. Downtime for a trained technician performing a like-for-like SCT202 swap is typically under two hours, including functional safety validation testing.

For aging M1 installations approaching end-of-support lifecycle, stocking two SCT202 units provides insurance against both immediate failure and future supply chain disruption. BACHMANN Electronic’s M1 platform has a long installed base in European and Asian industrial markets, and genuine spare parts availability from authorized distributors like TOPNLMS ensures that your system can remain operational well beyond the original equipment manufacturer’s standard support window.

Support FAQ

Q1: Is the SCT202 a genuine BACHMANN original part, and how is it tested before shipment?
Yes. Every SCT202 supplied by TOPNLMS is sourced from authorized channels and is a genuine BACHMANN Electronic original component. Prior to dispatch, each unit undergoes functional verification testing to confirm counter input response, backplane communication integrity, and safety diagnostic output. A 12-month warranty is included with every unit.

Q2: Can the SCT202 replace an older BACHMANN counter module that is not SIL-rated?
Yes, the SCT202 is physically and electrically compatible with the M1 backplane and can replace earlier non-safety-rated counter input modules. However, integrating the SCT202 into a safety function requires updating the safety application in BACHMANN SolutionCenter and performing a safety validation test. Consult your functional safety engineer before commissioning the replacement in a live safety loop.

Q3: What is the recommended inventory strategy for the SCT202 in a multi-machine facility?
For facilities with three or more M1 racks using safety counter functions, we recommend maintaining a minimum of one SCT202 cold spare per five installed units. Given the module’s role in safety-critical applications, sourcing delays of even a few days can result in extended production shutdowns. Consolidating your spare parts order to include related M1 modules — CPU units, power supplies, and I/O modules — reduces per-unit logistics costs and ensures a complete recovery kit is available on-site.

Q4: How long does shipping take, and what documentation is provided?
TOPNLMS ships globally with standard lead times of 3–7 business days for stocked items, with expedited options available. Each SCT202 ships with a packing list, test confirmation record, and 12-month warranty certificate. Export documentation including commercial invoice and country-of-origin declaration (Austria) is provided for international shipments to support customs clearance.
