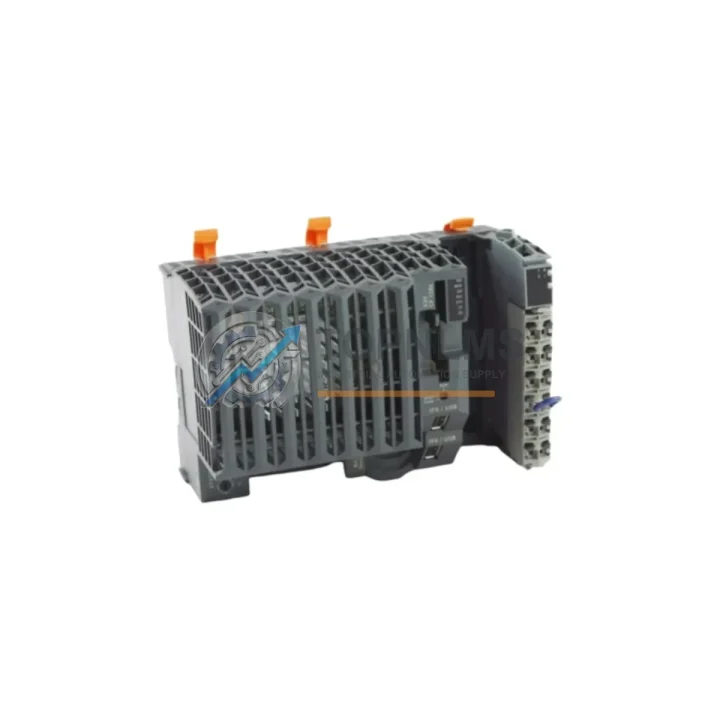

B&R X20CP1586 Replacement/Upgrade Solution for X20

Product Overview

B&R X20CP1586 Replacement/Upgrade Solution for X20: Smooth Transition from Legacy PLC Systems

When your existing B&R X20 Series control architecture reaches end-of-life or your X20CP1586 CPU module fails unexpectedly, every hour of unplanned downtime translates directly into production loss. The X20CP1586 is a high-performance CPU module within B&R’s X20 PLC platform, widely deployed in machine automation, process control, and motion-coordinated manufacturing lines across Europe and Asia. Whether you are managing a scheduled modernization project or responding to an emergency replacement, TOPNLMS maintains verified stock of the X20CP1586 to support your continuity requirements.

The X20CP1586 integrates seamlessly into existing X20 backplane racks and X20 bus controller configurations. Its compact DIN-rail form factor and standardized X2X Link communication interface mean that field engineers can swap the module without redesigning the control cabinet layout. The module retains compatibility with the B&R Automation Studio programming environment, allowing existing IEC 61131-3 application programs — whether written in Structured Text, Ladder Diagram, or Function Block Diagram — to be transferred and validated with minimal rework. For sites running older X20CP1484 or X20CP1585 CPU generations, the X20CP1586 represents a direct performance upgrade path: faster cycle times, expanded memory, and enhanced Ethernet connectivity, all within the same physical footprint.

In retrofit scenarios, the X20CP1586 pairs naturally with the X20PS9400 power supply module, which provides the 24 VDC bus power required by the X20 backplane. Engineers replacing aging control cabinets will find that the X20 system’s modular architecture accommodates mixed I/O expansion: digital input modules such as the X20DI9371, digital output modules such as the X20DO9322, and analog signal modules can all be retained from the original installation, reducing the scope and cost of the migration. Where fieldbus communication is involved — particularly POWERLINK, Modbus TCP, or PROFINET — the X20BC0083 bus controller or X20IF10D1-1 interface module can be incorporated to bridge legacy network segments without requiring a full protocol migration.

For machine builders and OEMs managing installed bases across multiple customer sites, the X20CP1586 also supports remote programming and diagnostics via standard Ethernet, reducing the need for on-site service visits during commissioning and post-migration validation. When combined with a B&R Power Panel or an external HMI running Automation Studio’s visualization runtime, operators can maintain familiar screen layouts and alarm structures throughout the upgrade, minimizing retraining requirements on the shop floor.

TOPNLMS ships the X20CP1586 with full pre-shipment functional testing. Each unit is verified against B&R’s published electrical and communication specifications before dispatch. Standard lead time from our Xiamen warehouse is 3–7 business days for most destinations, with expedited options available for urgent breakdown situations. All units are covered by a 12-month warranty from the date of shipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful X20CP1586 migration rarely involves the CPU module alone. In practice, field engineers working through a full control system modernization will also evaluate the surrounding X20 ecosystem components. The X20PS9400 power supply module is the standard choice for maintaining stable 24 VDC bus power across the X20 backplane during and after the CPU swap. Where the legacy system relied on older X20BC0073 bus controllers for X2X Link segment management, upgrading to the X20BC0083 provides improved diagnostics and broader POWERLINK cycle time support compatible with the X20CP1586’s enhanced communication stack.

On the I/O side, existing X20DI9371 digital input modules and X20DO9322 digital output modules can be retained without rewiring, as the X20CP1586 maintains full backward compatibility with the X20 I/O module family. For analog signal chains — particularly in process applications involving temperature, pressure, or flow measurement — X20 analog input modules already installed in the rack continue to operate without configuration changes beyond a firmware-level re-scan in Automation Studio.

Where the migration also involves updating the operator interface, a B&R Power Panel or a third-party HMI connected via Ethernet can be reconfigured to communicate with the X20CP1586 using the same IP addressing scheme as the replaced CPU, minimizing changes to SCADA or MES integration layers. For sites that require fieldbus bridging — for example, connecting legacy PROFIBUS DP devices to the modernized X20 network — the X20IF10D1-1 interface module provides a clean integration path without requiring replacement of existing field instrumentation.

Engineers managing spare parts inventory for multi-site installations will find that standardizing on the X20CP1586 across their installed base simplifies procurement, reduces the number of unique SKUs held in the maintenance store, and ensures that a single replacement unit can serve multiple machine types within the same X20 platform generation.

Retrofit Guidance FAQ

Q: Can the X20CP1586 replace an X20CP1484 or X20CP1585 without modifying the existing wiring?
A: Yes. The X20CP1586 uses the same X20 backplane connector and X2X Link interface as earlier X20 CPU generations. No wiring changes are required in the control cabinet. The module slots directly into the existing backplane position.

Q: Will my existing Automation Studio project run on the X20CP1586 without reprogramming?
A: In most cases, yes. IEC 61131-3 programs developed in Automation Studio 4.x can be transferred to the X20CP1586 with a hardware configuration update in the project. Full recompilation and a functional test cycle are recommended before returning the machine to production.

Q: Does the X20CP1586 support POWERLINK and Modbus TCP simultaneously?
A: The X20CP1586 supports multiple Ethernet-based protocols. POWERLINK for motion and I/O synchronization and Modbus TCP for supervisory communication can be configured concurrently through Automation Studio’s network configuration interface.

Q: Is the X20CP1586 physically compatible with the existing control cabinet layout?
A: Yes. The module conforms to the standard X20 module width and DIN rail mounting specification. No cabinet modifications, additional mounting hardware, or changes to cable management are required.

Q: How should spare parts be managed during the transition period?
A: TOPNLMS recommends holding at least one X20CP1586 unit as a cold spare for critical production lines. Our standard stock availability and 3–7 business day shipping timeline support both planned maintenance windows and emergency breakdown scenarios.

Q: What commissioning support is available after delivery?
A: TOPNLMS provides pre-shipment functional test documentation for each unit. Our technical team is available via email at [email protected] to assist with configuration questions during the commissioning phase.

Warranty Assurance

Every X20CP1586 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a structured pre-shipment inspection that verifies power-on behavior, communication interface integrity, and physical condition against B&R’s published module specifications. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS will assess the reported fault and, where confirmed, arrange a replacement unit dispatch. Our standard warranty response target is acknowledgment within 1 business day and replacement shipment within 3–5 business days, subject to stock availability. Warranty coverage applies to manufacturing defects and verified functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

For procurement teams requiring documentation, TOPNLMS can provide a test report and shipment certificate upon request. All transactions are supported by standard commercial invoice and packing list documentation suitable for customs clearance in major import markets.

To place an order, request a quotation, or discuss technical compatibility for your specific application, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
