B&R X20BC8084 Replacement Solution for X20 Series

Product Overview

B&R X20BC8084 Replacement Solution for X20 Series: Seamless Transition from Legacy Bus Controllers

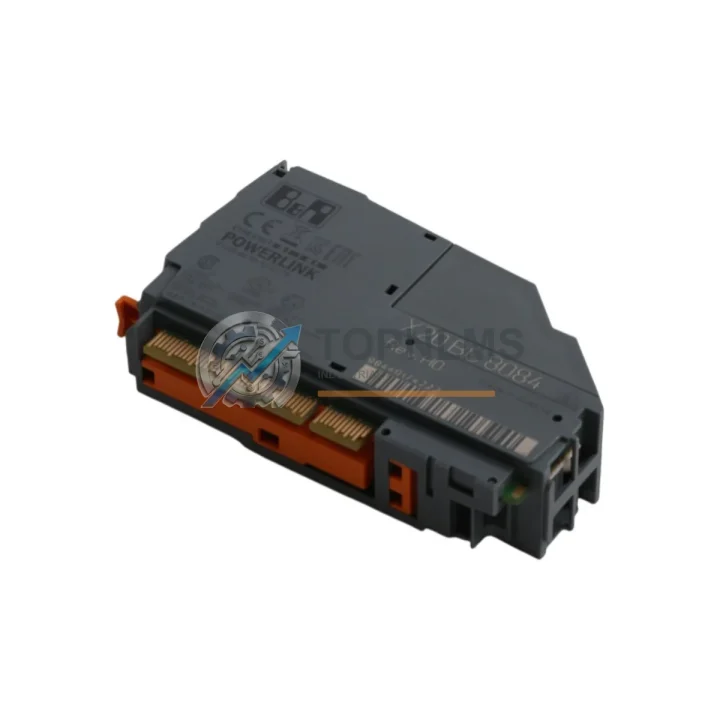

The B&R X20BC8084 is a redundant power supply bus controller designed for the X20 modular I/O system. For facilities running aging X20 backplane architectures — or migrating from earlier B&R 2003, 2005, or X67 field bus nodes — the X20BC8084 provides a validated, drop-in upgrade path that preserves existing wiring infrastructure, retains POWERLINK or X2X Link communication topology, and eliminates the need for full control cabinet redesign.

Industrial sites operating legacy B&R Automation Runtime projects on older CP340, CP360, or CP476 controllers frequently encounter discontinued bus controller variants that can no longer be sourced through standard distribution channels. The X20BC8084 addresses this gap directly: it integrates into existing X20 station assemblies without requiring new DIN rail mounting profiles, and its dual-channel power feed architecture supports redundant 24 VDC supply configurations already present in most safety-rated control cabinets.

When replacing a failed or end-of-life bus controller in a running X20 station, engineers must verify that the replacement module’s firmware revision is compatible with the installed Automation Studio project version. The X20BC8084 supports Automation Studio 4.x and later, and its X2X Link interface is backward-compatible with X20 I/O modules including digital input modules such as the X20DI9371, digital output modules such as the X20DO9322, and analog signal modules such as the X20AI4622. This means the physical I/O wiring — terminal blocks, cable looms, and field device connections — can remain entirely undisturbed during the bus controller swap.

For sites migrating from a single-supply bus controller to a redundant architecture, the X20BC8084’s dual power input design eliminates single points of failure at the station level. This is particularly relevant in process industries where an unplanned PLC station outage triggers a full line shutdown. The module’s integrated status LEDs and diagnostic registers are readable via standard POWERLINK cycle monitoring, allowing the existing HMI — whether a B&R Power Panel T50, T80, or a third-party SCADA system — to surface bus health data without additional programming effort.

Communication protocol continuity is a critical factor in any bus controller migration. The X20BC8084 maintains full POWERLINK V2 and X2X Link compatibility, meaning that existing network topology — including managed switches, fiber media converters, and ring redundancy configurations — does not require reconfiguration. Sites using B&R’s integrated motion and logic architecture with ACOPOS servo drives or ACOPOSmulti drive systems connected via POWERLINK will find that the X20BC8084 integrates without disrupting the drive network’s cycle time or synchronization parameters.

Physical installation follows the standard X20 module insertion procedure: the module clips onto the X20 bus base (X20BM11 or X20BM01) without tools, and the keying mechanism prevents incorrect module placement. For control cabinets with tight horizontal space budgets, the X20BC8084’s standard X20 form factor — 12.5 mm width — ensures it fits within existing station footprints. No additional mounting hardware, cable extensions, or terminal adapter plates are required.

From a procurement standpoint, sourcing a verified X20BC8084 replacement is time-sensitive. Production lines cannot afford extended lead times on critical bus infrastructure. TOPNLMS maintains ready stock of the X20BC8084 with pre-shipment functional testing, ensuring that each unit shipped has been verified for power supply switching, X2X Link enumeration, and diagnostic register accessibility before dispatch. Units are shipped from Xiamen with full export documentation, and delivery to most industrial regions is achievable within 3–7 business days via DHL Express or FedEx International Priority.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete X20 station migration typically involves more than the bus controller itself. When upgrading to the X20BC8084, engineers commonly address the following adjacent components in the same maintenance window. The X20BM11 bus module serves as the mechanical and electrical backbone connecting the X20BC8084 to downstream I/O modules; if the existing bus base shows signs of contact wear or corrosion, replacement during the bus controller swap prevents future intermittent faults. The X20PS9400 power supply module, which feeds the X20 station’s internal bus voltage, should be inspected for capacitor aging — particularly in stations that have been in continuous service for more than five years.

For stations where the X20BC8084 is being introduced to replace a non-redundant controller in a safety-relevant application, the X20SI9100 safety input module and X20SO9100 safety output module may be added to the station to bring the architecture in line with current IEC 62061 or ISO 13849 requirements without replacing the entire control cabinet. Communication continuity between the X20BC8084 and the upstream controller is maintained via the X20IF1091-1 POWERLINK interface module if the host controller does not natively support POWERLINK.

In retrofit projects where the legacy system used a B&R 2003 or 2005 series remote I/O node, the migration path typically involves replacing the remote node with an X20 station headed by the X20BC8084, retaining the existing field wiring at the terminal level. The X20TB12 terminal block set simplifies this transition by providing pre-wired terminal adapters that match legacy wiring color codes. For sites requiring signal isolation between legacy 4–20 mA field instruments and the new X20 analog input modules, the X20AI4622 with its integrated channel-level diagnostics eliminates the need for external signal isolators in most cases.

Programming cable access during commissioning is handled via the standard B&R USB programming interface or Ethernet-based Automation Studio connection — no proprietary dongle or adapter is required for the X20BC8084, which simplifies on-site firmware verification and project download during the cutover window.

Retrofit Guidance FAQ

Q: Can I replace my existing X20BC0083 with the X20BC8084 without modifying the Automation Studio project?
A: In most cases, yes. The X20BC8084 uses the same X2X Link interface and is recognized by Automation Studio 4.x as a compatible bus controller. You may need to update the hardware configuration in your AS project to reference the new module ID, but the I/O channel mapping and variable assignments remain unchanged.

Q: Does the X20BC8084 require any changes to the existing 24 VDC wiring in the control cabinet?
A: The X20BC8084 accepts two independent 24 VDC supply inputs for redundancy. If your existing cabinet has only a single supply feed to the bus controller, the module will operate normally on one input. The second input can be connected to a redundant supply at any time without taking the station offline.

Q: Is the X20BC8084 compatible with POWERLINK V1 networks?
A: The X20BC8084 supports POWERLINK V2. POWERLINK V2 is backward-compatible with V1 managing nodes in most network configurations, but you should verify your managing node firmware version supports mixed V1/V2 environments before cutover.

Q: How much physical space does the X20BC8084 require compared to the module it replaces?
A: The X20BC8084 occupies the standard X20 module footprint of 12.5 mm width on the DIN rail. If you are replacing a module of the same X20 form factor, no additional cabinet space is required.

Q: What is the recommended procedure for replacing the bus controller in a live X20 station?
A: The recommended procedure is a planned shutdown of the affected X20 station, module extraction, replacement insertion, firmware verification via Automation Studio, and controlled restart. Hot-swap capability depends on the specific station configuration and should be confirmed against the X20BC8084 user manual before attempting live replacement.

Q: Can the X20BC8084 be used in a new X20 station build alongside legacy X20 I/O modules?
A: Yes. The X20BC8084 is fully compatible with the existing X20 I/O module range, including older generation digital and analog modules. No I/O module replacement is required when upgrading the bus controller.

Warranty Assurance

Every X20BC8084 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Pre-shipment testing includes power supply switching verification, X2X Link bus enumeration, POWERLINK communication initialization, and visual inspection for physical damage. Units that fail any test criterion are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation. Customers are not required to return the defective unit before the replacement is shipped for orders with documented installation evidence. Warranty coverage includes manufacturing defects, premature component failure, and communication interface faults under normal operating conditions. Physical damage caused by incorrect installation voltage, reverse polarity, or mechanical impact is excluded from warranty coverage.

For urgent production-critical replacements, TOPNLMS offers priority dispatch with same-day shipment for orders confirmed before 14:00 CST. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every international shipment to facilitate customs clearance without delay.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact the TOPNLMS technical sales team directly.
