B&R X20AO4622 Replacement/Upgrade Solution for X20 System

Product Overview

B&R X20AO4622 Replacement/Upgrade Solution for X20 System: Seamless Transition & Legacy Compatibility

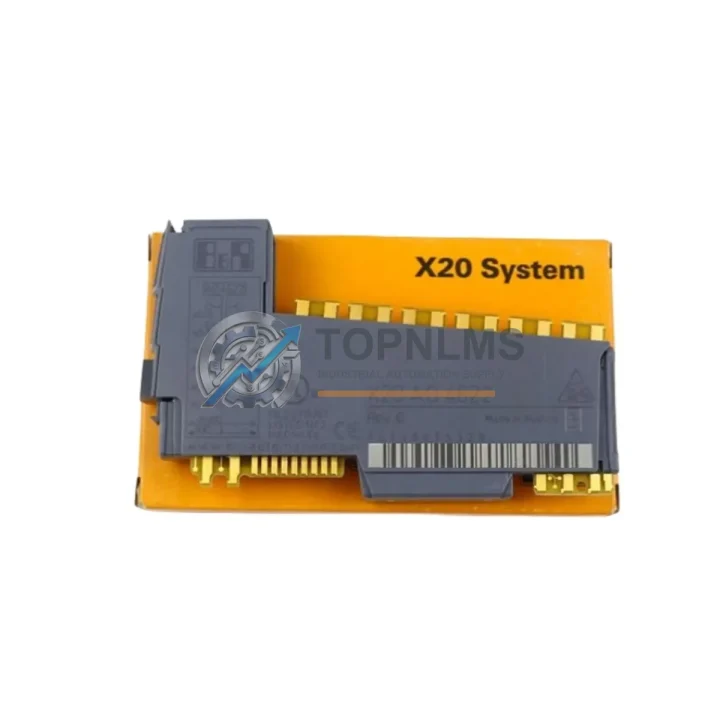

The B&R X20AO4622 is a 4-channel analog output module designed for the B&R X20 System platform — one of the most widely deployed modular PLC architectures in process automation, machine building, and factory control applications. As legacy X20 installations age and original modules approach end-of-life or become increasingly difficult to source, engineers and procurement teams face mounting pressure to maintain uptime without committing to a full system overhaul. TOPNLMS supplies verified X20AO4622 units specifically to support controlled migration, partial retrofit, and like-for-like replacement strategies that protect your existing investment while restoring full system functionality.

The X20AO4622 outputs four independent analog channels, each configurable for ±10 V voltage or 0–20 mA / 4–20 mA current signals, with 12-bit resolution. It mounts directly onto the X20 system bus via the standard X20 bus module interface, requiring no additional wiring adapters when replacing a failed or obsolete unit of the same type. The module draws power from the X20 internal bus supply, eliminating the need for a dedicated external power feed at the module level — a key advantage when working within a constrained control cabinet where the X20 power supply module (such as the X20PS9400 or X20PS9402) is already sized for the existing rack configuration.

For sites running B&R Automation Studio as the programming environment, the X20AO4622 is natively recognized within the hardware configuration tree. Replacing a failed module requires only a physical swap and a hardware configuration download — no re-engineering of the analog output function blocks or channel scaling parameters is necessary, provided the replacement unit carries the same order number. This dramatically reduces commissioning time compared to cross-brand substitution and eliminates the risk of introducing software incompatibilities into a validated control program.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful X20AO4622 replacement rarely involves the output module in isolation. In practice, the migration or repair scope typically extends to adjacent components within the same rack or control cabinet. When the X20AO4622 is being replaced as part of a broader I/O refresh, engineers commonly address the X20 bus module (X20BM01) that physically connects the module to the backplane, as bus module contacts can degrade over years of thermal cycling. If the analog signals feed into a process loop — for example, controlling a variable-frequency drive or a proportional valve — the associated X20AI4622 analog input module on the feedback side should be inspected simultaneously to ensure signal integrity across the full control loop.

Sites upgrading from older X20 CPU generations, such as those running an X20CP1484 or X20CP3484 controller, will find that the X20AO4622 is fully compatible with current CPU firmware without requiring module-level firmware updates. Where the control cabinet also houses communication modules — for instance, an X20BC0083 POWERLINK interface or an X20BC0073 PROFIBUS DP slave — these remain unaffected by an analog output module swap, preserving the fieldbus topology and eliminating any need to reconfigure network node addresses or baud rate settings.

Power distribution within the X20 rack is managed by the X20 power supply module. If the replacement is being performed during a planned maintenance window, it is good practice to verify that the X20PS9400 or equivalent supply module is delivering stable 24 VDC within specification, as a marginal power supply is a common root cause of intermittent analog output faults that are initially misdiagnosed as module failures. For installations where the X20 rack is mounted alongside an HMI — such as a B&R Power Panel or a third-party operator panel connected via OPC UA — the analog output channel configuration in Automation Studio should be verified against the HMI tag database after the swap to confirm that engineering unit scaling remains consistent.

In multi-rack or distributed I/O architectures, the X20AO4622 may be located in a remote I/O station connected to the main CPU via an X20 IF1091 or similar interface module. In these configurations, the replacement procedure is identical to a local rack swap, as the X2X Link protocol handles module identification automatically upon power-up, and the CPU re-establishes communication with the new module without manual intervention beyond the hardware configuration download.

Retrofit Guidance FAQ

Q: Can I replace the X20AO4622 without modifying my Automation Studio project?
A: Yes, provided the replacement unit carries the same order number (X20AO4622). The hardware configuration in Automation Studio identifies the module by order number; a like-for-like swap requires only a configuration download, not a project re-engineering.

Q: Is re-wiring required?
A: No. The X20AO4622 uses the standard X20 terminal block, which is field-removable. The existing wiring harness transfers directly to the replacement module without modification.

Q: What communication protocol does the X20AO4622 use?
A: The module communicates via the X2X Link protocol over the X20 internal system bus. It does not require a separate fieldbus connection (PROFIBUS, EtherNet/IP, etc.) and is not independently addressable on external networks.

Q: Will the replacement module fit in the same physical slot?
A: Yes. All X20 series modules share a standardized form factor and DIN-rail mounting footprint. No control cabinet modifications are required.

Q: How do I verify the module is functioning correctly after installation?
A: After the hardware configuration download, use the Automation Studio I/O Mapping monitor or the online diagnostic view to confirm that all four analog output channels are reporting expected values. Apply a known reference load to each channel and verify the output signal with a calibrated multimeter.

Q: Can this module replace an X20AO4632 or X20AO4611?
A: The X20AO4622 is not a direct drop-in for models with different channel counts or signal range configurations. Cross-model substitution requires a hardware configuration change in Automation Studio and verification of wiring compatibility. Contact TOPNLMS for cross-reference guidance.

Warranty Assurance

Every X20AO4622 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including bus communication check, analog output channel calibration confirmation, and visual inspection for connector and housing integrity. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial acknowledgment. We support customers through the diagnostic process remotely and, where required, coordinate with freight carriers for return logistics. Expedited shipping options are available for urgent production-line recovery scenarios.

Stock is maintained in Xiamen, China, with global shipping capability via DHL, FedEx, and UPS Express. Lead time for in-stock units is typically 1–3 business days from order confirmation. For large-quantity procurement or standing orders, contact our sales team to discuss pricing, lead time commitments, and quality documentation packages including test reports and certificates of conformity.
