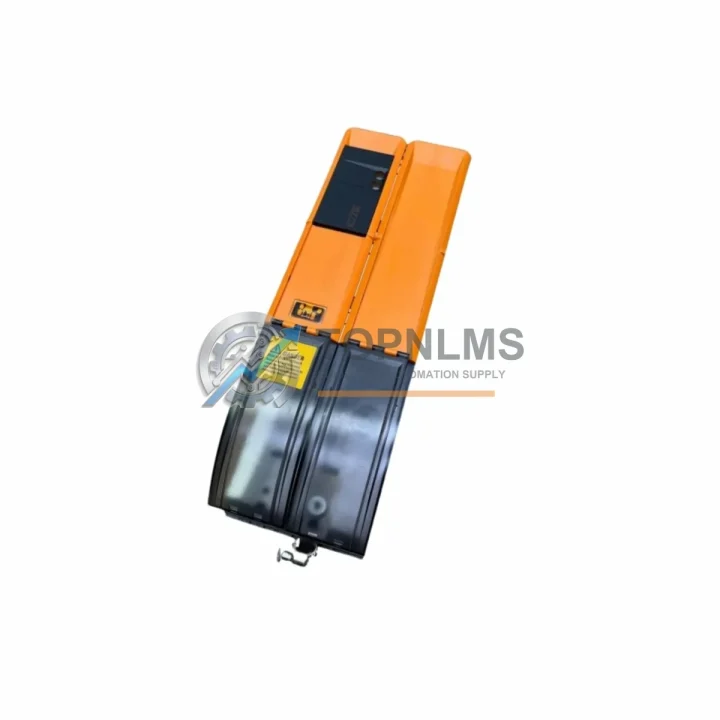

B&R 8BVI0220HCD8.000-1 ACOPOSmulti Ruggedized Axis Inverter Module

Product Overview

B&R 8BVI0220HCD8.000-1 ACOPOSmulti Ruggedized Axis Inverter Module: Industrial Resilience for Harsh Environments

The B&R 8BVI0220HCD8.000-1 is a high-performance axis inverter module from B&R Automation’s ACOPOSmulti servo drive platform, engineered to deliver precise, continuous motion control in the most demanding industrial environments. Rated at 22A continuous output current and designed for 400V AC bus systems, this module is purpose-built for applications where uptime, accuracy, and environmental resilience are non-negotiable.

Whether deployed in high-temperature foundry lines, dust-laden mining conveyors, high-humidity food processing facilities, or vibration-intensive heavy press operations, the 8BVI0220HCD8.000-1 maintains stable closed-loop servo control without compromise. Its robust thermal management, EMI-shielded housing, and compliance with IEC 61800-series safety standards make it a trusted backbone for safety-critical motion systems worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The 8BVI0220HCD8.000-1 is designed to operate as part of a fully integrated ACOPOSmulti drive system. In a typical control cabinet deployment, it slots into the ACOPOSmulti node alongside the 8B0C0160HCD0.000-1 supply module, which conditions the DC bus and provides regenerative braking capability. The axis inverter communicates with the B&R X20CP1586 PLC or X20CP3586 controller via the high-speed POWERLINK real-time Ethernet protocol, ensuring deterministic cycle times as low as 400µs — critical for synchronized multi-axis motion.

For applications requiring functional safety, the 8BVI0220HCD8.000-1 integrates natively with the B&R SafeLOGIC X20SL8100 safety controller and the X20SI9100 safety input module, enabling STO (Safe Torque Off) and SS1 (Safe Stop 1) functions without external safety relays. This dramatically simplifies cabinet wiring and reduces the risk of wiring errors in hazardous area installations.

On the I/O side, the module pairs with X20AI4622 analog input modules for process feedback and X20DI9371 digital input modules for limit switch and proximity sensor integration. In high-vibration environments such as mining crushers or heavy stamping presses, the X20BB80 bus base and vibration-damped terminal blocks ensure that signal integrity is maintained even under continuous mechanical stress.

For distributed architectures, the 8BVI0220HCD8.000-1 can be coordinated with remote I/O nodes via the X20BC0083 POWERLINK bus controller, extending the motion network across large plant floors without sacrificing synchronization accuracy. Industrial power supplies such as the B&R PS3100 24VDC panel supply provide stable auxiliary power to the logic and encoder circuits, protecting the axis module from voltage transients common in heavy industrial environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 8BVI0220HCD8.000-1 drives pump jack servo systems and compressor valve actuators where continuous, uninterrupted operation is mandatory. Its STO safety function satisfies IEC 61511 process safety requirements, enabling emergency shutdown without mechanical brake wear.

In mining and mineral processing, the module controls conveyor drive axes, crusher feed systems, and flotation cell agitators. Its IEC 60068-2-6 vibration compliance and wide operating temperature range allow it to function reliably in underground environments where ambient temperatures fluctuate and dust ingress is constant.

In power generation and utilities — including hydroelectric turbine governors and thermal plant auxiliary drives — the module’s POWERLINK communication ensures microsecond-level synchronization with SCADA and DCS systems, including integration with ABB System 800xA and Siemens PCS 7 via OPC UA gateways.

In metallurgy and steel production, the 8BVI0220HCD8.000-1 manages rolling mill positioning axes and ladle transfer car drives. Its high peak current capability (up to 44A) handles the inertial loads of heavy steel coils without triggering overcurrent faults, while its EMI shielding resists interference from large arc furnaces and induction heaters operating nearby.

In water and wastewater treatment, the module drives dosing pump servo axes and sluice gate actuators in facilities where humidity levels are consistently high and chemical vapors are present. Its non-condensing humidity rating and sealed connector interfaces protect internal electronics from corrosive atmospheric conditions.
