B&R 5C5001.03 IPC5000C Replacement/Upgrade Solution

Product Overview

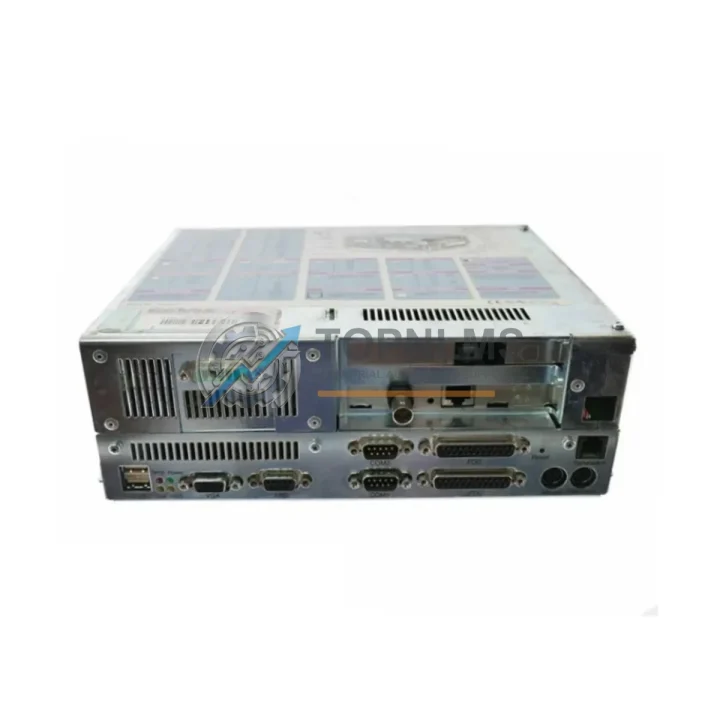

B&R 5C5001.03 IPC5000C Replacement/Upgrade Solution: Seamless Transition from Legacy Modular IPC Systems

The B&R 5C5001.03 is a 2-slot modular Industrial PC from the IPC5000C series, designed for demanding automation environments where processing reliability, compact footprint, and tight integration with B&R’s Automation Studio ecosystem are non-negotiable. As the IPC5000C platform matures and legacy units reach end-of-service, many facilities running B&R Automation Runtime on older 5C5000.00 or 5C5001.00 chassis are now facing urgent decisions: repair, replace, or migrate.

TOPNLMS stocks the 5C5001.03 as a direct replacement and upgrade path for facilities currently operating earlier IPC5000C revisions or adjacent B&R modular IPC platforms. Whether your existing unit has suffered a CPU fault, power failure, or simply reached its operational lifecycle, the 5C5001.03 offers a physically and electrically compatible drop-in solution that minimizes re-engineering effort and keeps your line running.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IPC5000C migration rarely involves the CPU module alone. In practice, upgrading from a failed or obsolete 5C5001.00 or 5C5001.02 to the 5C5001.03 typically proceeds alongside a review of the surrounding system architecture. Facilities running B&R X20 I/O modules — such as the X20AI4622 analog input module or X20DO9322 digital output module — will find that the X2X Link bus topology remains unchanged, meaning existing I/O wiring and channel assignments carry over without modification.

Power distribution within the control cabinet is equally straightforward. The 5C5001.03 operates on 24 VDC, compatible with standard B&R PS3100 or PS4000 series power supply modules already installed in most IPC5000C cabinets. No power rail reconfiguration is required.

For sites using POWERLINK as the real-time Ethernet backbone — connecting servo drives such as the B&R ACOPOS P3 or ACOPOSmulti drive systems — the 5C5001.03 maintains full POWERLINK V2 compatibility. Existing network topology, node addresses, and cycle time settings are preserved, eliminating the need for drive re-commissioning.

Communication with upstream SCADA or MES systems via OPC UA or Modbus TCP is handled through the onboard Ethernet port, which retains the same IP configuration and protocol stack as predecessor revisions. Sites using B&R’s Automation Net (ANSL) or third-party HMI panels connected via Ethernet will experience no communication disruption during the swap.

Where the existing cabinet includes a B&R X20BB80 or X20BB28 bus base for X20 module mounting, the 5C5001.03 connects via the standard X2X Link connector without any mechanical or electrical adapter. Similarly, if the system includes an X20CP1586 or X20CP3586 controller in a multi-CPU architecture, the IPC5000C slot assignment and task class configuration in Automation Studio remain valid.

For sites requiring signal isolation between legacy field devices and the new IPC — particularly in environments with high electrical noise or mixed voltage levels — adding a signal isolator module such as a Weidmüller or Phoenix Contact DIN-rail isolator between the field terminal strip and the X20 I/O bus is a recommended best practice that does not affect the 5C5001.03 installation itself.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness from my 5C5001.00?
A: Yes. The 5C5001.03 uses the same 24 VDC power connector pinout and X2X Link interface. Existing wiring to the power supply and I/O bus can be reused without modification.

Q: Do I need to re-upload my Automation Studio project?
A: In most cases, no. If your project was compiled for the IPC5000C hardware configuration in AS 4.x, the same binary can be transferred to the 5C5001.03 via USB or Ethernet. A hardware upgrade wizard in Automation Studio may prompt a recompile if the revision number differs — this is a standard, low-risk step.

Q: Is POWERLINK node configuration preserved?
A: Yes. POWERLINK node IDs are stored in the network configuration, not in the IPC hardware. Replacing the CPU module does not alter node assignments on connected drives or I/O stations.

Q: Will the 5C5001.03 fit in the same cabinet space?
A: Yes. The IPC5000C 2-slot form factor is identical across all .0x revisions. DIN rail mounting dimensions and connector positions are unchanged.

Q: What if my system uses an older X20 firmware version?
A: The 5C5001.03 supports backward-compatible firmware loading via Automation Studio. TOPNLMS recommends verifying the AS version compatibility matrix before deployment, and our technical team can assist with pre-shipment configuration if required.

Warranty Assurance

Every B&R 5C5001.03 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including power-on testing, communication interface checks, and visual inspection for physical integrity. Units are shipped in anti-static packaging with full traceability documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement dispatch within 3 business days. Our after-sales response team is reachable via email and phone for technical pre-sales consultation, installation guidance, and post-delivery support. We maintain bonded stock of IPC5000C series units to support emergency replacement scenarios with minimal lead time.

For volume procurement, OEM integrators, and MRO buyers, TOPNLMS offers consolidated purchasing of IPC5000C modules alongside compatible X20 I/O, ACOPOS drive components, and communication accessories — reducing vendor complexity and consolidating warranty management under a single supplier relationship.
