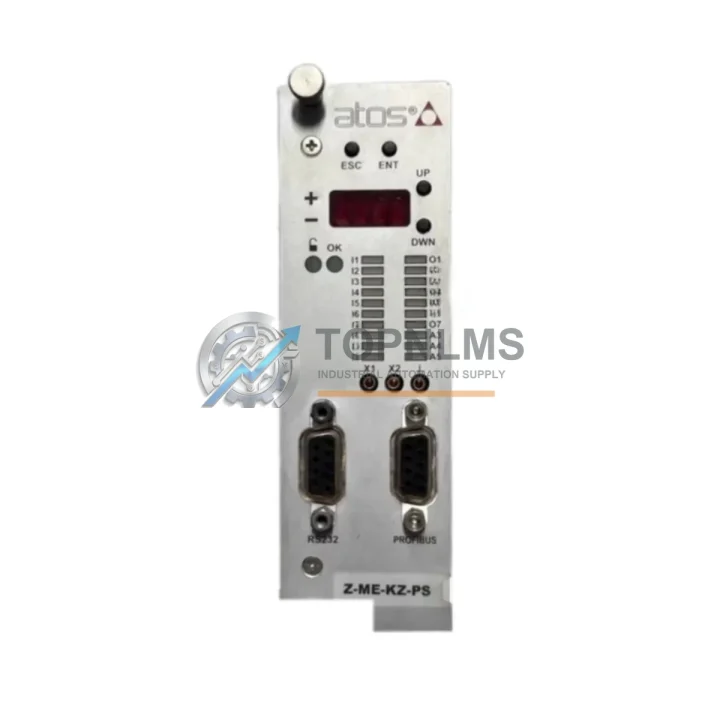

Atos Z-ME-KZ-PS Replacement for Z-ME Series

Product Overview

Atos Z-ME-KZ-PS Replacement for Z-ME Series: Seamless Transition & Legacy System Compatibility

The Atos Z-ME-KZ-PS is a high-precision electrohydraulic axis position controller card engineered for demanding industrial motion control applications. As legacy hydraulic control systems age and original Z-ME Series cards reach end-of-life or become increasingly difficult to source, the Z-ME-KZ-PS serves as the authoritative drop-in replacement and upgrade solution — preserving existing wiring infrastructure, communication architecture, and control cabinet layouts while delivering modern performance and reliability.

Industrial facilities operating Atos proportional valve amplifier systems, servo-hydraulic press lines, injection molding machines, and heavy-duty positioning rigs frequently encounter the challenge of sourcing a verified replacement for discontinued or worn Z-ME Series controller cards. The Z-ME-KZ-PS addresses this directly: it is designed to slot into the same card rack or DIN-rail mounting position as its predecessors, accept the same analog reference signals (±10 V or 4–20 mA depending on configuration), and interface with the same proportional valve coil drivers without requiring rewiring of the hydraulic actuator feedback loop.

For plants running legacy Atos DLHZO, DLKZOR, or DKZOR proportional directional valves, the Z-ME-KZ-PS controller card maintains full electrical compatibility with the valve amplifier’s enable, ramp, and dither signal chains. Engineers performing a card swap can retain existing shielded cable runs to the LVDT or encoder position transducer, avoiding costly re-cabling during a planned maintenance window or emergency breakdown repair.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging electrohydraulic control platform to the Z-ME-KZ-PS rarely involves a single component. In practice, field engineers and procurement teams find that a coordinated upgrade of several interdependent components delivers the most reliable outcome and the lowest total downtime.

When replacing the Z-ME-KZ-PS controller card, it is common to simultaneously evaluate the condition of the Atos E-ME-AC power supply module, which provides the regulated 24 V DC rail that the controller card depends on. A degraded power supply is a frequent root cause of erratic axis positioning behavior that is often misdiagnosed as a controller card fault. Replacing both components together during a planned shutdown eliminates this ambiguity.

The position feedback chain is equally critical. If the existing Atos LVDT position transducer or incremental encoder has accumulated mechanical wear, the new Z-ME-KZ-PS card will faithfully report inaccurate position data. Inspecting and, where necessary, replacing the transducer alongside the controller card ensures the upgraded axis achieves its specified positioning repeatability from day one.

For systems where the proportional valve itself — such as an Atos DLHZO-TE proportional directional valve or an Atos DKZOR-A servo valve — has also reached its service interval, a combined valve-and-card replacement is strongly recommended. The Z-ME-KZ-PS is factory-calibrated to work within the Atos proportional valve ecosystem, and a fresh valve paired with a new controller card eliminates the diagnostic uncertainty of mixing new and worn hydraulic components.

In multi-axis systems, the Atos Z-ME-KZ-PS cards are typically housed in a shared card rack alongside Atos E-BM-AS axis interface modules and Atos E-ME-AC-01F power conditioner cards. If the rack backplane shows signs of connector oxidation or intermittent contact, replacing the backplane or the affected rack slot during the same maintenance window prevents recurrence of the fault after the new controller card is installed.

For facilities that have upgraded their supervisory control layer to a modern PLC — such as a Siemens S7-1500 or Allen-Bradley ControlLogix — the analog output module driving the Z-ME-KZ-PS reference input may also require attention. Verifying that the PLC analog output module’s ±10 V range and resolution are correctly matched to the controller card’s input specification is a prerequisite for achieving the axis positioning accuracy the system was designed for. An Atos E-MI-AC fieldbus interface module can bridge digital fieldbus protocols (PROFIBUS, CANopen, EtherCAT) to the analog reference input of the Z-ME-KZ-PS in modernized control architectures, eliminating the need to retain legacy analog wiring from the PLC to the controller card.

Signal isolation is another consideration in retrofit projects. Where long cable runs between the control cabinet and the hydraulic actuator introduce ground loop noise, inserting a signal isolator / repeater module between the PLC analog output and the Z-ME-KZ-PS reference input resolves interference issues without requiring shielded cable replacement.

Retrofit Guidance FAQ

Q: Can I replace my existing Z-ME Series card with the Z-ME-KZ-PS without rewiring?
A: Yes. The Z-ME-KZ-PS is designed as a direct replacement for earlier Z-ME Series controller cards. The connector pinout, supply voltage, and signal interface are compatible, allowing a card swap without modifying existing wiring harnesses or terminal blocks.

Q: Do I need to reprogram my PLC after installing the Z-ME-KZ-PS?
A: In most cases, no. The Z-ME-KZ-PS accepts the same analog reference signal (±10 V or 4–20 mA) as its predecessor. PLC programs that generate axis position setpoints via analog output modules do not require modification. Only the on-card gain, ramp, and dither parameters may need re-tuning via the card’s trimmer potentiometers or, on digital variants, via the Atos E-SW programming software.

Q: Is the Z-ME-KZ-PS compatible with PROFIBUS or EtherCAT?
A: The base Z-ME-KZ-PS uses an analog signal interface. For integration with PROFIBUS DP, CANopen, or EtherCAT networks, the Atos E-MI-AC fieldbus interface module can be added to convert digital setpoints to the analog reference signal required by the controller card.

Q: Will the Z-ME-KZ-PS fit in my existing control cabinet without modification?
A: The Z-ME-KZ-PS shares the same card rack form factor as the Z-ME Series it replaces. No additional cabinet space or new DIN rail sections are required for a like-for-like replacement. If you are upgrading from a different card format, please confirm the rack slot dimensions before ordering.

Q: What commissioning steps are required after installation?
A: After physical installation, verify the 24 V DC supply voltage at the card connector, confirm LVDT or encoder feedback signal continuity, and perform a zero-offset and gain calibration using the card’s adjustment interface. A slow-speed axis movement test under no-load conditions should be completed before returning the machine to production.

Q: How do I handle a Z-ME-KZ-PS replacement during an unplanned breakdown?
A: TOPNLMS maintains ready stock of the Z-ME-KZ-PS for emergency dispatch. Orders placed before the daily cut-off are processed for same-day shipment from Xiamen. Express international freight options are available to minimize machine downtime.

Warranty Assurance

Every Atos Z-ME-KZ-PS supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional outgoing inspection that verifies supply voltage acceptance, analog reference signal response, and output driver integrity. Units that do not meet Atos factory performance specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned item. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units for warranty claims are dispatched with priority freight at no additional cost to the buyer.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Letter of Credit (L/C) and T/T payment terms are supported for qualified buyers.

Stock availability is updated in real time. If the Z-ME-KZ-PS is shown as available, it is physically in our Xiamen warehouse and ready for immediate shipment. Lead times for non-stock orders are confirmed at the time of inquiry.
