ASML 4022.437.0126 Original Industrial Spare — System Stability for TWINSCAN Lithography Platforms

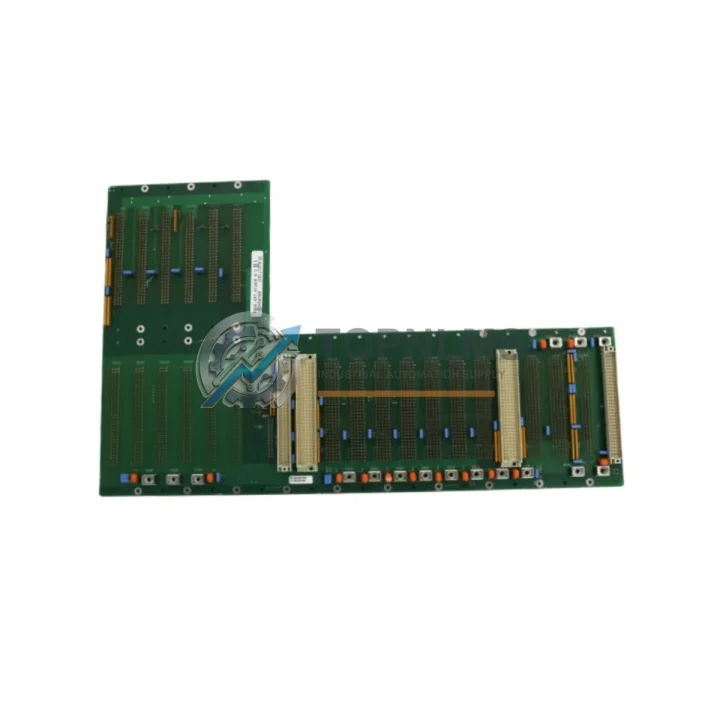

The ASML 4022.437.0126 is an original PCB assembly designed for use in ASML TWINSCAN and PAS-series semiconductor lithography systems. In high-throughput wafer fabrication environments, the integrity of every control and signal board directly determines system uptime, overlay accuracy, and yield consistency. This board — cross-referenced as 245799, 0190-25307, 650PM-24CG-ADI1, and 0140-80495 — serves as a critical interface component within the lithography tool’s electronic control architecture, managing signal routing, power distribution, or motion control functions depending on its installation position.

Sourced from verified original ASML supply channels and inspected prior to dispatch, this PCB assembly is a direct fit replacement that preserves full system compatibility without requiring firmware reconfiguration or mechanical adaptation. For semiconductor fabs, research institutions, and equipment refurbishers operating ASML platforms, maintaining a stocked spare of this board is a fundamental risk-mitigation measure against unplanned downtime events that can cost tens of thousands of dollars per hour.

Critical Technical Specs

Preventive Maintenance Strategy

In a semiconductor fab environment, the ASML 4022.437.0126 PCB assembly does not operate in isolation. It is embedded within a tightly integrated electronic architecture where the failure of one board can cascade into system-wide faults, triggering unscheduled maintenance windows and impacting wafer throughput. A disciplined preventive maintenance program should treat this board as part of a broader inspection and replacement cycle.

During scheduled tool qualification (TQ) or preventive maintenance (PM) intervals, engineers should simultaneously inspect the ASML power distribution modules that supply regulated voltage to the PCB stack — voltage ripple or transient spikes are a leading cause of premature board failure. The ASML motion controller boards (wafer stage and reticle stage) share the same backplane bus in many TWINSCAN configurations, and a degraded 4022.437.0126 can produce erratic stage positioning errors that are misdiagnosed as mechanical issues. Verifying the health of the ASML I/O interface modules and signal conditioning boards in the same control cabinet during the same PM window reduces total labor cost and minimizes the number of tool-down events per quarter.

Connector integrity is another critical checkpoint. The ASML ribbon cable assemblies and board-to-board interconnects that mate with the 4022.437.0126 should be inspected for pin corrosion, micro-fractures, and seating integrity — particularly in tools with high thermal cycling histories. Simultaneously, the ASML backplane or motherboard assembly that hosts this PCB should be checked for trace oxidation and connector wear. In older PAS 5500 platforms being extended beyond their original design life, the ASML CPU or system controller module is often the next component to require attention after a PCB assembly replacement, as aging control electronics tend to fail in clusters.

For fabs managing multiple ASML tools, a consolidated spare parts inventory that includes the ASML 4022-series PCB assemblies, power supply units, laser control boards, and alignment sensor interface modules provides the fastest mean-time-to-repair (MTTR) when an unplanned fault occurs. Stocking a minimum of one spare 4022.437.0126 per tool cluster is a widely adopted best practice among high-volume fabs operating 24/7 production schedules.

Strategic Replacement Solutions

The ASML 4022.437.0126 addresses one of the most persistent challenges in semiconductor equipment maintenance: sourcing verified original spare parts for aging lithography tools that are no longer covered by OEM service contracts. As ASML’s product roadmap advances toward EUV platforms, legacy DUV TWINSCAN and PAS 5500 tools remain in active production at fabs worldwide — particularly for mature node processes (90nm–350nm) where the economics of upgrading to newer tools do not justify the capital expenditure.

This PCB assembly enables equipment engineers to extend the productive life of existing ASML tools by replacing failed or degraded boards with original-specification components, rather than accepting the performance compromises associated with non-OEM alternatives. The direct cross-reference compatibility with part numbers 245799, 0190-25307, 650PM-24CG-ADI1, and 0140-80495 ensures that procurement teams can source this board regardless of which part numbering system their CMMS or ERP system uses.

By maintaining a stocked spare, fabs eliminate the 4–12 week lead time typically associated with emergency OEM procurement, reducing unplanned downtime from weeks to hours. Each unit shipped by TOPNLMS is tested, documented, and dispatched with full traceability records to support your internal quality management system (QMS) and equipment qualification requirements.

Support FAQ

Q1: Is the ASML 4022.437.0126 compatible with both TWINSCAN and PAS 5500 series tools?
A: This PCB assembly is primarily designed for ASML TWINSCAN-series lithography systems and is cross-referenced across multiple ASML part numbering revisions (245799, 0190-25307, 650PM-24CG-ADI1, 0140-80495). Compatibility with specific PAS 5500 configurations should be verified against your tool’s BOM or service manual. Contact us with your tool serial number for confirmation before ordering.

Q2: What testing and inspection does each unit undergo before shipment?
A: Every ASML 4022.437.0126 unit is visually inspected for physical damage, component integrity, and connector condition. Functional testing is performed where applicable. Units are packed in ESD-safe anti-static bags with foam cushioning and shipped with a test report. A 12-month warranty from the date of shipment covers defects in materials and workmanship.

Q3: How should I manage spare inventory for this board across multiple ASML tools?
A: Industry best practice for high-utilization fabs is to maintain one spare per tool cluster (2–4 tools) for critical PCB assemblies. Given the 4–12 week OEM lead time for legacy ASML parts, holding a pre-stocked spare eliminates the risk of extended downtime during peak production periods. For fabs with 10+ ASML tools, a centralized spare parts pool with a minimum stock level of 2–3 units is recommended.

Q4: Can this board be used as a direct drop-in replacement without recalibration?
A: In most TWINSCAN configurations, the 4022.437.0126 is a direct replacement that does not require firmware flashing or system recalibration beyond the standard board swap procedure defined in the ASML field service manual. However, post-installation qualification (overlay measurement, system diagnostic scan) is always recommended to confirm full system performance restoration before resuming production.
