ASKPCB ASSY 100-05258/E239218 K-3 94V-0: Seamless Ovation DCS Upgrade & Replacement Solution

When your Emerson Ovation Distributed Control System relies on the ASKPCB ASSY 100-05258/E239218 K-3 94V-0 PCB assembly, any unplanned failure or end-of-life notice can threaten continuous plant operations. TOPNLMS supplies this board as a direct replacement and modernization solution for facilities running legacy Ovation DCS architectures — including power generation, water treatment, oil & gas, and chemical process plants. Our stock is sourced, inspected, and dispatched from Xiamen, China, with full traceability documentation and a 12-month warranty on every unit.

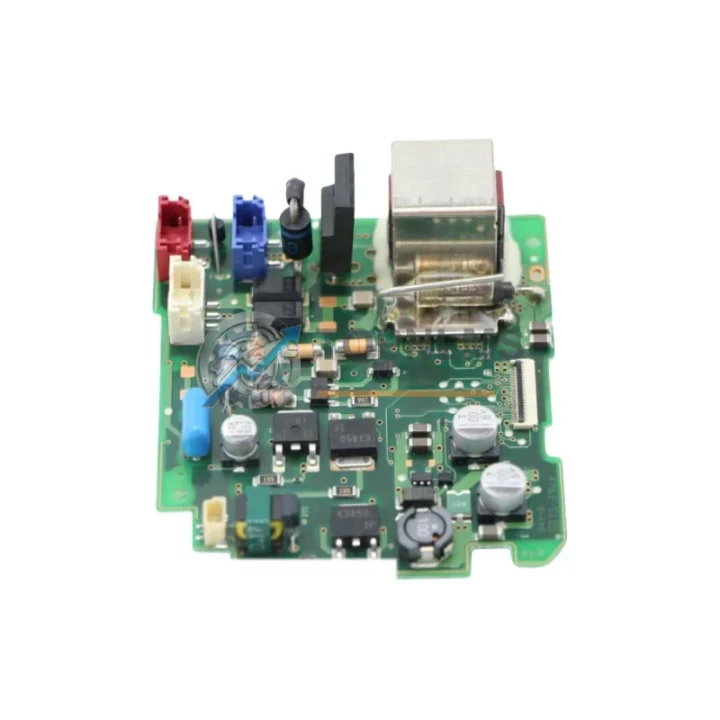

The ASSY 100-05258/E239218 K-3 94V-0 is a functional PCB control board designed to slot into existing Ovation controller racks without requiring chassis modification. Engineers migrating from older Ovation 1.x or 2.x controller generations will find that this assembly maintains backward-compatible I/O addressing, preserving existing ladder logic and function block programs without forced re-engineering. The board’s UL 94V-0 flame-retardant rating meets the same fire-safety classification as the original Emerson-specified component, ensuring compliance with plant safety documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Ovation DCS migration rarely involves a single board swap. In practice, plant engineers replacing the ASSY 100-05258/E239218 K-3 94V-0 are simultaneously addressing adjacent components in the same controller rack or control cabinet. The Ovation controller backplane that houses this PCB assembly often shares its rack with Ovation I/O modules — analog input cards, digital output cards, and thermocouple input modules — all of which may be approaching end-of-life on the same maintenance cycle. Sourcing these I/O modules alongside the main PCB assembly reduces the number of separate procurement events and minimizes the risk of a second unplanned outage shortly after the initial repair.

Many sites running legacy Ovation systems also operate Emerson Ovation OCR400 or OCR1100 controllers as the primary processing unit. When the PCB assembly in question supports communication between the controller and field devices, engineers should verify that the Ovation network interface card installed in the same rack is still within its rated service life. Replacing a degraded network interface card at the same time as the ASSY 100-05258/E239218 K-3 94V-0 eliminates a common root cause of intermittent communication faults that can appear weeks after a board swap.

For plants that use Emerson Ovation remote I/O drops connected via the Ovation plant network, the marshalling terminal blocks and field termination assemblies (FTAs) connected to the replaced board should be inspected for corrosion or loose terminations. Ovation FTA panels — including models used with analog and discrete I/O — are available as replacement assemblies and can be installed during the same maintenance window, avoiding a return visit. Similarly, the 24 VDC power supply modules feeding the Ovation controller rack should be load-tested; a marginal power supply is a frequent contributor to PCB assembly failures and should be replaced proactively when the main board is swapped.

Sites that have already begun a phased migration toward a newer DCS platform — such as Emerson DeltaV — sometimes retain Ovation subsystems in parallel during the transition period. In these hybrid architectures, OPC DA/UA gateway devices bridge the Ovation network to the new DeltaV system, and the ASSY 100-05258/E239218 K-3 94V-0 must remain fully operational until the cutover is complete. TOPNLMS can supply the replacement PCB assembly with expedited lead times to support tight migration schedules, and our technical team can advise on parallel-run testing procedures to validate the replacement board before the legacy system is taken offline.

Programmable logic controllers used in auxiliary systems adjacent to the Ovation DCS — such as Siemens S7-300 or Allen-Bradley ControlLogix units managing utilities or safety interlocks — are not affected by this board swap, but their communication links to the Ovation system via Modbus RTU or PROFIBUS DP should be verified after the replacement to confirm that gateway mappings remain intact. Providing a complete pre- and post-swap communication test checklist is part of TOPNLMS’s standard technical support for this replacement.

Retrofit Guidance FAQ

Q: Will I need to modify any wiring when replacing the ASSY 100-05258/E239218 K-3 94V-0?
A: No field wiring changes are required. The replacement board uses the same connector pinout and backplane interface as the original. All field cables terminate at the FTA panel, which remains undisturbed during the board swap.

Q: Do I need to re-download the Ovation application program after installing the replacement board?
A: In most cases, the Ovation controller retains the application program in the OCR controller module, not on the PCB assembly itself. A standard board swap does not require a program re-download. However, we recommend performing a controlled restart and verifying all I/O points in Ovation Developer Studio after installation.

Q: Is the replacement board compatible with all Ovation firmware versions?
A: The ASSY 100-05258/E239218 K-3 94V-0 is compatible with the Ovation firmware versions in use at the time of the original board’s production. If your site is running a significantly newer Ovation firmware release, please contact our technical team with your firmware version number before ordering so we can confirm compatibility.

Q: How much physical space does the replacement board require in the rack?
A: The replacement board occupies the same rack slot as the original — no additional rack space is needed. The form factor is identical to the OEM specification.

Q: Can this board be used in a redundant Ovation controller configuration?
A: Yes. The board is suitable for use in both simplex and redundant Ovation controller configurations. When replacing a board in a redundant pair, we recommend replacing both boards during the same maintenance window to ensure matched hardware revisions.

Q: What communication protocols does this board support?
A: The board operates within the Ovation proprietary plant network architecture and supports OPC connectivity as implemented in the standard Ovation system. It does not independently support Modbus, PROFIBUS, or Ethernet/IP — those protocols are handled by dedicated gateway or communication modules in the Ovation rack.

Warranty Assurance

Every ASKPCB ASSY 100-05258/E239218 K-3 94V-0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each board undergoes a multi-point functional inspection including visual examination for component damage, power-on continuity testing, and connector integrity verification. Units that do not pass inspection are quarantined and never shipped.

If a warranty claim arises within the 12-month coverage period, TOPNLMS will arrange a replacement unit or issue a refund, depending on stock availability and the customer’s preference. Our standard response time for warranty inquiries is within one business day. Customers are not required to return the defective unit before a replacement is dispatched in cases where expedited plant recovery is critical — we assess each case individually to minimize your downtime.

All units are shipped with an inspection report, a packing list, and a certificate of conformity. Export documentation for international shipments — including commercial invoices, packing declarations, and HS code classification — is prepared by our logistics team to ensure smooth customs clearance. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express courier options available for urgent requirements.

TOPNLMS maintains a dedicated after-sales support channel for industrial control system components. Our engineering team is available to assist with installation questions, compatibility verification, and post-installation troubleshooting throughout the warranty period and beyond.
