AREVA MVAJ101RA0802A Original Industrial Spare MVAJ Compatible

Product Overview

AREVA MVAJ101RA0802A Original Industrial Spare: System Stability & Reliable Protection Relay Maintenance

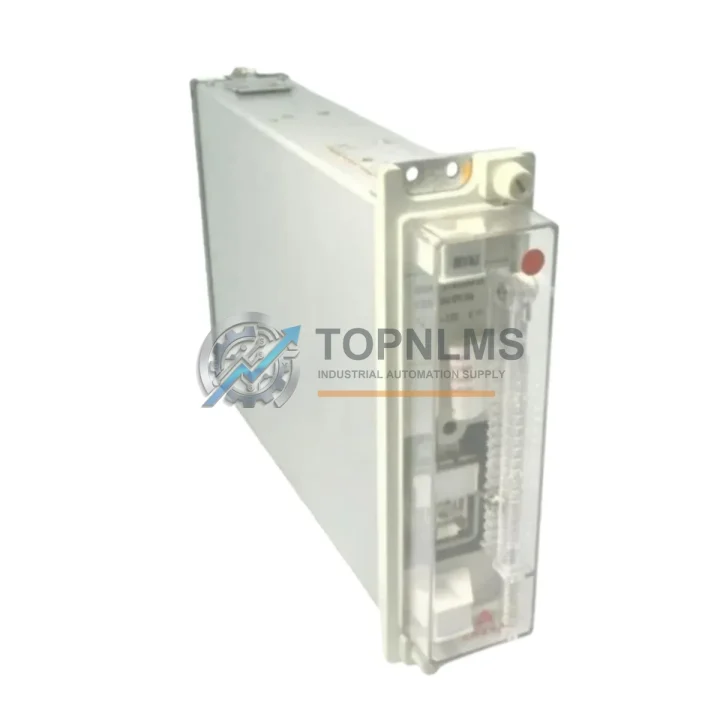

The AREVA MVAJ101RA0802A is an original high-speed auxiliary tripping relay from the MVAJ Series, engineered for demanding industrial protection and control applications. In power distribution substations, motor control centers, and process automation panels, the MVAJ101RA0802A serves as a critical interface between protection relays and circuit breakers — executing trip commands with millisecond-level response times. Maintaining a verified spare of this component is not optional for facilities running legacy AREVA or Schneider Electric protection schemes; it is a fundamental pillar of electrical system resilience.

Whether your facility operates continuous process lines, high-voltage switchgear, or automated manufacturing cells, an unplanned failure of an auxiliary tripping relay can cascade into full-panel lockout, production stoppage, or worse — uncontrolled fault propagation. Sourcing an original MVAJ101RA0802A from a verified supplier ensures your replacement unit carries the same electrical characteristics, coil impedance, and contact ratings as the factory-installed component, eliminating compatibility risk during emergency maintenance windows.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of your protection relay panel should never focus on a single component in isolation. The MVAJ101RA0802A operates within an interconnected protection chain, and its reliability is directly influenced by the condition of surrounding components. During any planned outage or annual maintenance cycle, maintenance engineers should treat the following items as a coordinated inspection scope:

Begin with the AREVA MiCOM P127 or P139 feeder protection relay that issues the trip command — verify its output relay contacts and firmware version. Inspect the DC auxiliary power supply module feeding the MVAJ coil circuit; voltage dips or ripple on the 110 V DC or 48 V DC bus are a leading cause of spurious relay operation or failure to trip. Check the trip circuit supervision relay (such as the AREVA MVTU or equivalent) to confirm the trip circuit integrity monitoring is active and alarm-free.

The output wiring terminal blocks connecting the MVAJ101RA0802A to the circuit breaker trip coil should be inspected for loose connections, oxidation, and correct torque — a common source of intermittent trip failures that is frequently misdiagnosed as relay failure. If your panel uses AREVA K-Bus or IEC 61850 communication modules, verify that the relay’s binary output mapping is correctly configured and that no communication timeouts are logged.

For facilities managing aging protection schemes, it is prudent to maintain parallel spares of the AREVA MVAJ101 series variants (including MVAJ101RA0802A, MVAJ101RA0401A, and MVAJ101RA1601A) to cover different contact configurations without requiring re-wiring during emergency replacement. Additionally, inspect the circuit breaker auxiliary contacts (52a/52b) that feed back into the protection relay — worn auxiliary contacts are a frequent source of protection scheme malfunctions that appear as relay faults.

Where signal isolators or interposing relays are used between the MVAJ output and the breaker trip coil, verify their coil voltage ratings match the DC bus and that their contacts show no signs of arcing damage. Finally, review the panel fuse modules and MCBs protecting the DC trip supply — a blown fuse in the trip circuit is a silent failure mode that leaves the protection scheme non-functional until the next test cycle.

Strategic Replacement Solutions

The MVAJ101RA0802A was designed for long service life, but aging infrastructure, discontinued support contracts, and component obsolescence create real procurement challenges for maintenance teams. TOPNLMS supplies original AREVA MVAJ101RA0802A units sourced from verified channels, enabling direct like-for-like replacement without panel re-engineering.

Unlike generic relay substitutes that may require contact re-mapping, coil voltage adjustment, or mechanical re-mounting, an original MVAJ101RA0802A slots directly into the existing relay socket, preserving the original wiring scheme and protection coordination settings. This is critical in time-sensitive maintenance scenarios where re-commissioning a modified protection scheme requires additional engineering sign-off and testing — delays your facility cannot afford during an unplanned outage.

For facilities transitioning from legacy AREVA protection panels to modern IEC 61850-compliant systems, the MVAJ101RA0802A can serve as a reliable bridge component, maintaining trip circuit functionality while the broader system upgrade is planned and budgeted. Maintaining 1–2 units in your on-site spare parts inventory eliminates lead-time risk and supports your facility’s MTTR (Mean Time to Repair) targets.

All units supplied by TOPNLMS are tested for coil continuity, contact resistance, and operating time prior to shipment. A 12-month warranty is provided from the date of delivery, with test documentation available upon request. Worldwide shipping is supported, with DHL Express and FedEx options for urgent maintenance requirements.
