Applied Materials 23835-503 Original Industrial Spare CMP Compatible: Sustaining System Stability in Semiconductor Fabrication

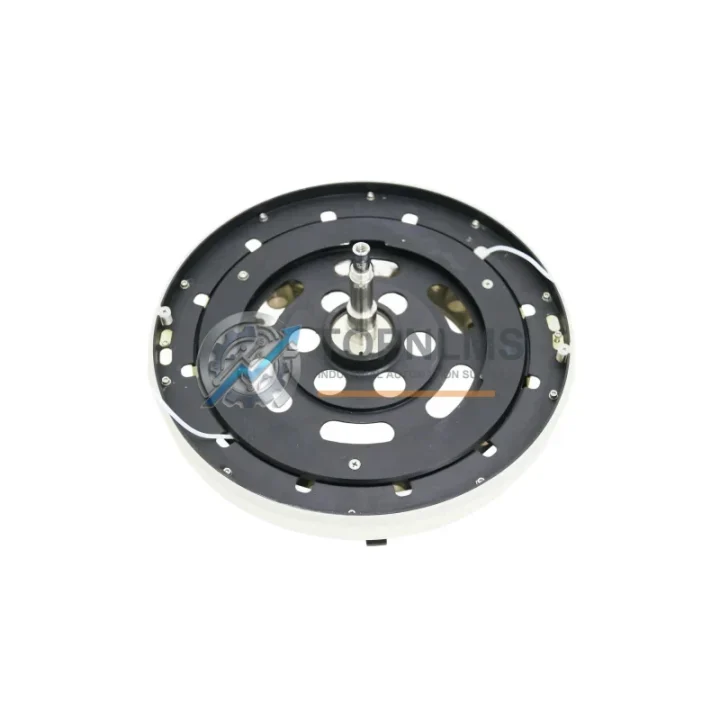

In high-throughput semiconductor fabrication environments, the CMP (Chemical Mechanical Planarization) process is one of the most mechanically demanding and precision-critical stages of wafer production. The Applied Materials 23835-503 CMP Carrier Head — also cross-referenced as 932T0016-503-1198 and 6LVV-P1V222P-BA — is a precision-engineered original spare component designed to maintain consistent wafer polishing performance across extended production cycles. With an outer diameter of 34 cm and an inner diameter of 29.5 cm, this carrier head delivers the dimensional accuracy and surface contact uniformity required for sub-nanometer planarization results.

Whether you are managing a scheduled maintenance window, responding to an unplanned equipment stoppage, or building out your critical spare parts inventory for long-term fab continuity, the 23835-503 is a foundational component that directly impacts yield, throughput, and system uptime. Sourced as an original Applied Materials part, it is fully compatible with the Mirra and Reflexion CMP platform families — two of the most widely deployed polishing systems in global semiconductor manufacturing.

Critical Technical Specs

Preventive Maintenance Strategy

A CMP carrier head replacement is rarely an isolated event. In practice, the mechanical wear and process drift that necessitate a 23835-503 swap are often accompanied by degradation in adjacent subsystems. A disciplined preventive maintenance approach requires technicians to inspect and, where appropriate, simultaneously replace or stock the following components during the same maintenance window:

The CMP retaining ring — which interfaces directly with the polishing pad and experiences comparable wear cycles to the carrier head — should be inspected for groove depth and replaced if below specification. Similarly, the membrane assembly (also known as the wafer carrier membrane or flexible diaphragm) controls the pressure distribution across the wafer surface; a fatigued membrane will cause non-uniform removal rates even with a new carrier head installed.

The slurry delivery arm and nozzle assembly should be checked for blockages and chemical residue buildup, as inconsistent slurry flow directly undermines the planarization uniformity that the 23835-503 is designed to achieve. Technicians should also verify the condition of the pad conditioner assembly and its diamond disc, since pad surface texture is a critical variable in CMP output quality.

At the electrical and pneumatic control level, the carrier head pressure controller module and associated pneumatic solenoid valves govern the multi-zone pressure applied through the carrier head. Any drift in these components will manifest as wafer-level non-uniformity that may be misattributed to the carrier head itself. Inspecting and calibrating these control elements during the same downtime window prevents repeat interventions.

For facilities running the Reflexion LK or Reflexion GT platforms, the endpoint detection sensor module and optical monitoring system (OMS) window assembly are additional components worth verifying during a carrier head PM cycle. These sensors directly interact with the polishing process and can accumulate slurry contamination that degrades signal quality over time.

Finally, the carrier head drive shaft and coupling assembly, along with the rotary union that supplies pneumatic pressure and cooling water to the rotating head, should be inspected for seal integrity and rotational smoothness. A worn rotary union seal can introduce pressure instability that compromises the entire polishing process — making it a high-value item to stock alongside the 23835-503 in any CMP spare parts kit.

Stocking these components together with the 23835-503 as a coordinated CMP maintenance kit reduces mean time to repair (MTTR), minimizes the risk of secondary failures during production restart, and supports a proactive inventory posture aligned with your fab’s overall equipment effectiveness (OEE) targets.

Strategic Replacement Solutions

The Applied Materials 23835-503 addresses one of the most common challenges in mature fab operations: maintaining CMP process performance on platforms that are no longer in active production by the OEM but remain central to ongoing wafer output. As Applied Materials has evolved its CMP portfolio toward newer platforms, the availability of original spare parts for legacy Mirra and Reflexion systems has tightened in the open market — making a reliable, verified source for the 23835-503 a strategic asset for any fab maintenance team.

Unlike aftermarket or refurbished alternatives, this original Applied Materials carrier head preserves the dimensional tolerances, surface finish specifications, and material compatibility that the Mirra and Reflexion platforms were qualified against. Substituting non-OEM components in a CMP carrier head position introduces process qualification risk and may require re-characterization of removal rate profiles — a costly and time-consuming exercise that a genuine spare eliminates entirely.

For facilities managing a fleet of CMP tools across multiple process nodes, maintaining a buffer stock of one to two 23835-503 units per tool significantly reduces the exposure to extended unplanned downtime. Given typical lead times for precision CMP components in the current supply environment, a just-in-time procurement strategy carries meaningful risk. A pre-positioned spare, tested and ready for installation, converts a potential multi-day outage into a same-shift recovery.

All units shipped from TOPNLMS are subject to pre-shipment dimensional inspection and functional verification. Each 23835-503 is packaged in protective cleanroom-compatible materials to prevent contamination or mechanical damage in transit, and is accompanied by documentation supporting traceability and incoming inspection at your facility.

Support FAQ

Q1: Is the 23835-503 compatible with both the Mirra and Reflexion CMP platforms?
Yes. The 23835-503 carrier head is designed for compatibility with Applied Materials Mirra and Reflexion series CMP systems. For Reflexion LK or GT variants, please confirm your tool configuration and carrier head mounting interface before ordering. Our technical team can assist with compatibility verification based on your tool serial number or BOM reference.

Q2: What is the recommended replacement interval for this carrier head?
Applied Materials typically specifies carrier head inspection and replacement intervals based on wafer pass counts and process chemistry exposure — commonly in the range of 500 to 1,000 wafer passes, or as indicated by process control data showing removal rate drift or within-wafer non-uniformity (WIWNU) degradation. Always defer to your site-specific PM schedule and process engineering guidelines.

Q3: What pre-shipment testing is performed on each unit?
Each 23835-503 undergoes dimensional inspection verifying OD, ID, and critical interface tolerances prior to shipment. Functional checks are performed to confirm mechanical integrity of the assembly. Units are packaged in protective materials suitable for cleanroom receiving inspection. A 12-month warranty from the date of shipment covers manufacturing defects and component integrity.

Q4: How should I manage inventory for this part given its criticality?
Given the lead time sensitivity and process criticality of CMP carrier heads, we recommend maintaining a minimum buffer of one spare unit per active CMP tool in your facility. For high-utilization fabs running 24/7 operations, a two-unit buffer per tool is advisable. Pairing the 23835-503 with a stocked retaining ring, membrane assembly, and rotary union seal kit provides a comprehensive CMP first-response spare kit that covers the majority of unplanned maintenance scenarios.
