Applied Materials 0190-47186 Original Industrial Spare Motion Compatible

Product Overview

Applied Materials 0190-47186 Original Industrial Spare Motion Compatible: System Stability & Industrial Spare Maintenance Value

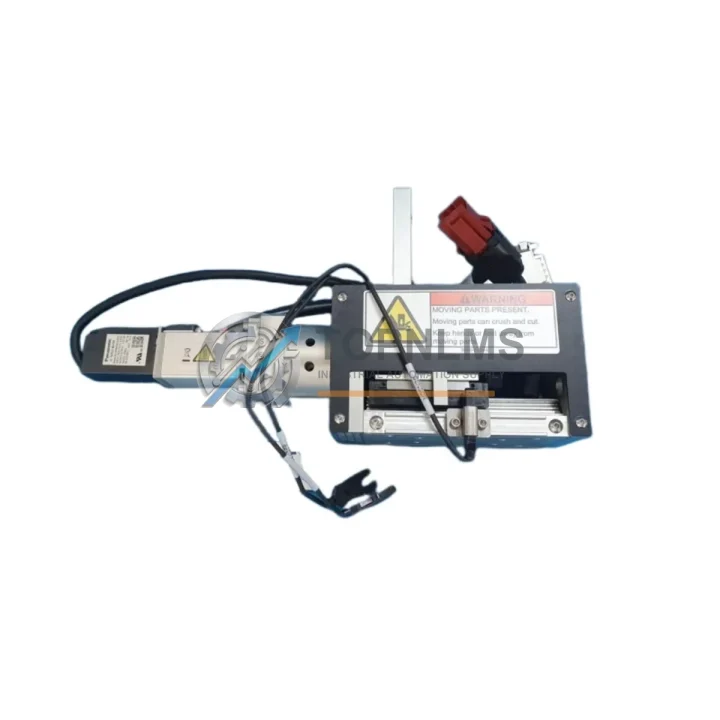

The Applied Materials AMAT 0190-47186 Linear Actuator Assembly is a precision motion control component engineered for semiconductor manufacturing and advanced industrial automation environments. As a direct original spare part, this actuator assembly is designed to maintain the exacting positional accuracy and repeatability demanded by Applied Materials process equipment — including CVD, PVD, etch, and wafer handling platforms. Sourced from verified supply channels and fully tested prior to shipment, the 0190-47186 ensures your production line returns to specification quickly, minimizing unplanned downtime and protecting process yield.

In high-throughput semiconductor fabs and precision automation facilities, motion control integrity is non-negotiable. A degraded or failed linear actuator can cascade into wafer misalignment, recipe deviations, and costly chamber shutdowns. Stocking the 0190-47186 as a certified spare — alongside its cross-reference equivalents 0190-33877 and 61240-PAGC-AFK1 — gives maintenance teams the confidence to execute rapid, like-for-like replacements without extended lead times or compatibility risk.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned maintenance window for an Applied Materials chamber or wafer handling module, the 0190-47186 linear actuator assembly should never be evaluated in isolation. Motion control reliability depends on the integrity of the entire drive and feedback chain. During actuator inspection or replacement, maintenance engineers should simultaneously audit the associated servo motor and encoder assembly that drives the actuator, as encoder drift or motor bearing wear frequently precedes actuator failure and can cause premature wear on a newly installed unit.

The motor drive cable harness and flex conduit routed to the actuator should be inspected for insulation cracking, connector pin corrosion, and chafing — particularly in high-cycle applications where cable fatigue is a leading failure mode. At the same time, the home position sensor and limit switch assembly should be verified for accurate triggering; a misaligned or degraded sensor can cause the actuator to overtravel, damaging both the mechanical stop and the actuator’s internal drive components.

For chambers with integrated pneumatic assist or counterbalance, the pneumatic solenoid valve and regulator assembly serving the actuator circuit should be leak-tested and the regulator set-point confirmed. Pressure drift in this circuit directly affects actuator load and can accelerate lead screw wear. The I/O interface board or motion control I/O module that issues position commands and reads encoder feedback should also be checked for firmware version alignment and signal integrity — particularly if the chamber has undergone any software or recipe updates since the last PM cycle.

Maintenance teams should also inspect the chamber controller backplane and communication module for any fault logs related to motion timeouts or position errors, as these often indicate early-stage actuator degradation before a hard failure occurs. The power supply module feeding the servo drive should be load-tested to confirm output voltage stability under dynamic conditions; an under-spec supply is a common root cause of intermittent motion faults that are incorrectly attributed to the actuator itself.

Finally, the linear guide rail and bearing carriage on which the actuator operates should be cleaned, inspected for scoring or pitting, and re-lubricated per OEM specification. Contaminated or worn guide rails impose side-loading on the actuator’s drive nut, dramatically shortening service life. Pairing a new 0190-47186 with a freshly serviced guide rail and a verified encoder, limit switch, and power supply creates a complete, reliable motion axis — not just a component swap.

Strategic Replacement Solutions

The 0190-47186 is a direct, like-for-like replacement for the legacy 0190-33877 and the alternate-configuration 61240-PAGC-AFK1, both of which appear across multiple generations of Applied Materials process equipment. Facilities still operating older AMAT platforms benefit significantly from maintaining a stocked 0190-47186: the OEM bolt pattern, connector pinout, and control interface are preserved, meaning field replacement requires no mechanical adaptation, no software reconfiguration, and no re-qualification of the motion axis beyond standard post-maintenance verification.

For maintenance managers responsible for aging AMAT fleets, the strategic value of this spare extends beyond a single chamber. A single 0190-47186 unit can serve as a rotational spare across multiple tools sharing the same actuator specification, reducing the total number of spares required while maintaining coverage across the fleet. This approach is particularly effective in facilities running mixed-generation AMAT equipment where the 0190-33877 was the original installed part — the 0190-47186 provides a current-production equivalent with full backward compatibility.

Procurement teams should consider the 0190-47186 as part of a structured critical-spare inventory strategy rather than a reactive purchase. Lead times for precision motion control assemblies from OEM channels can extend to 8–16 weeks during periods of supply constraint. Holding one or two units in bonded stock eliminates this exposure entirely, converting a potential multi-week production outage into a same-shift maintenance event. All units shipped from TOPNLMS are covered by a 12-month warranty and have passed pre-shipment functional inspection, providing procurement confidence equivalent to new OEM supply.

Support FAQ

Q1: Is the 0190-47186 a genuine original Applied Materials part, or an aftermarket equivalent?
The 0190-47186 units available through TOPNLMS are original Applied Materials spare parts sourced through verified industrial supply channels. Each unit undergoes pre-shipment inspection to confirm dimensional and functional conformance to OEM specification. A 12-month warranty is included with every shipment.

Q2: Can the 0190-47186 directly replace the 0190-33877 or 61240-PAGC-AFK1 without mechanical modification?
Yes. The 0190-47186 is a direct cross-reference replacement for both the 0190-33877 and the 61240-PAGC-AFK1. The mounting interface, connector configuration, and control compatibility are preserved across these part numbers, allowing like-for-like field replacement without mechanical adaptation or software reconfiguration.

Q3: What is the recommended inventory strategy for this actuator in a multi-tool AMAT facility?
For facilities operating two or more AMAT tools sharing this actuator specification, we recommend maintaining a minimum of one rotational spare per four tools, with a hard floor of one unit in stock at all times. Given typical OEM lead times of 8–16 weeks for precision motion assemblies, a stocked spare eliminates the primary risk of extended unplanned downtime. Annual review of spare consumption rate against tool count is advised.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every 0190-47186 unit is subject to full functional and dimensional inspection prior to shipment, including verification of drive mechanism integrity, connector condition, and mechanical travel. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Warranty claims are supported by TOPNLMS directly; contact [email protected] for RMA initiation and technical support.
