Applied Materials 0100-76058 BC9300228 Replacement Solution for LASC-300: Smooth Transition from Legacy Interface PCB Systems

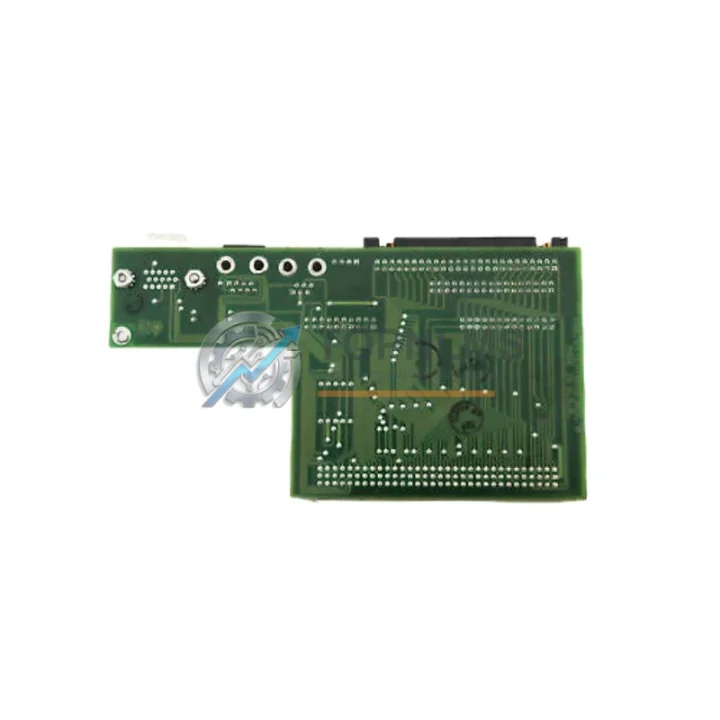

The Applied Materials 0100-76058 BC9300228 (also referenced as MPU32A / AVME-132A) is a critical Interface PCB Assembly engineered for the LASC-300 series semiconductor process control platform. As Applied Materials continues to evolve its equipment ecosystem, facilities operating legacy LASC-300 controllers, cluster tool mainframes, and associated I/O subsystems face mounting pressure to source reliable replacement boards before OEM support windows close. This listing addresses that challenge directly — providing a verified, tested, and immediately shippable solution for engineers and procurement teams managing planned or emergency retrofits.

Whether your facility is migrating from an aging LASC-200 architecture to the LASC-300 platform, or replacing a failed MPU32A processor module mid-campaign, this board is engineered to restore system continuity with minimal reconfiguration. The AVME-132A interface logic embedded in this assembly maintains backward-compatible signal routing with the original backplane connectors, reducing the need for harness modifications or firmware re-flashing in most standard retrofit scenarios. The result is a smooth, low-risk transition that protects uptime and preserves your existing control architecture investment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful LASC-300 system retrofit rarely involves a single board replacement. Engineers replacing the 0100-76058 BC9300228 MPU32A interface PCB frequently find that adjacent modules require simultaneous attention to restore full system integrity. The AVME-132A processor interface communicates upstream with the LASC-300 host controller and downstream with the I/O subsystem — meaning that a degraded AVME-196A digital I/O module or a failing AVME-112A analog input board can mask the root cause of process faults even after the MPU32A is replaced.

In cluster tool configurations, the LASC-300 card cage typically houses the AVME-132A communication interface alongside a BC9300228 backplane termination assembly and one or more AVME-196A 32-channel digital I/O boards. When migrating from a LASC-200 platform, facilities frequently need to update the VME backplane chassis itself — particularly if the original 6-slot chassis cannot accommodate the expanded I/O density required by modern process recipes. Sourcing a compatible LASC-300 6U VME chassis or an extended 9-slot VME backplane as part of the same procurement cycle eliminates secondary delays and reduces total system downtime.

Communication continuity is another common retrofit concern. The LASC-300 platform relies on SECS/GEM protocol for fab host integration, and the MPU32A board serves as the primary SECS-II gateway. If your facility is also upgrading the fab host interface, pairing this board replacement with a GEM300 communication controller or a dedicated SECS/GEM middleware server ensures uninterrupted MES connectivity throughout the transition. For facilities still running RS-422 serial links to legacy equipment, an RS-422 to Ethernet converter module can bridge the gap without requiring host software changes — a practical interim measure during phased migrations.

On the power distribution side, the LASC-300 card cage draws regulated +5 VDC and ±12 VDC from a dedicated VME power supply module. If the existing power supply shows signs of ripple or voltage sag — common in systems that have operated continuously for 10+ years — replacing it concurrently with the MPU32A board prevents nuisance faults during post-retrofit commissioning. A compatible Applied Materials LASC-300 power supply assembly or an equivalent third-party VME power module rated for the same output specifications is strongly recommended as part of any comprehensive upgrade plan.

For facilities performing a full control system modernization rather than a targeted board swap, the 0100-76058 BC9300228 can serve as a reliable interim solution while a longer-term migration to a modern PLC-based architecture — such as a Siemens S7-300 distributed I/O platform or an Allen-Bradley ControlLogix chassis with 1756-EN2T Ethernet/IP communication module — is planned and validated. This phased approach minimizes production risk while allowing engineering teams to develop and test new control logic in parallel with ongoing wafer production, protecting both yield and schedule.

Retrofit Guidance FAQ

Q: Can I replace the 0100-76058 BC9300228 without modifying the existing wiring harness?
A: In most LASC-300 installations, yes. The board uses the standard VME backplane connector, so no harness modification is required. Verify that the DIP switch settings for the slot address match the original board configuration before powering up.

Q: Is the AVME-132A interface logic on this board compatible with my existing LASC-300 host software?
A: Yes. The AVME-132A interface is designed to operate transparently with the standard LASC-300 host software stack. No driver updates or firmware changes are required in typical replacement scenarios.

Q: What communication protocols does this board support?
A: The MPU32A / AVME-132A supports RS-232, RS-422 serial communication, and SECS-II / GEM protocol for fab host integration. It is fully compatible with existing SECS/GEM configurations without reconfiguration.

Q: Will this board fit in my existing LASC-300 card cage without physical modification?
A: Yes. The 0100-76058 BC9300228 is a standard 6U VME single-slot card and fits directly into any LASC-300 card cage slot without chassis modification or bracket adaptation.

Q: What should I check during commissioning after installation?
A: After seating the board, verify the slot address DIP switch settings, confirm backplane power rail voltages (+5 VDC / ±12 VDC), and perform a SECS/GEM link test with the fab host. Monitor the system log for any communication timeout errors during the first 24 hours of operation.

Q: Can this board be used as a spare for a LASC-200 system?
A: The 0100-76058 BC9300228 is specifically designed for the LASC-300 platform. Compatibility with LASC-200 systems depends on the specific revision of the LASC-200 backplane and host software. Contact our technical team for cross-compatibility verification before ordering for a LASC-200 application.

Q: How do I verify the board is functioning correctly after replacement?
A: Power on the system and observe the board’s status LEDs for normal initialization sequence. Run the LASC-300 self-diagnostic routine from the host software, confirm all I/O channels report correctly, and validate SECS/GEM communication with a test message exchange before resuming production.
