Applied Materials 0100-20217 DI/O Board Centura Replacement

Product Overview

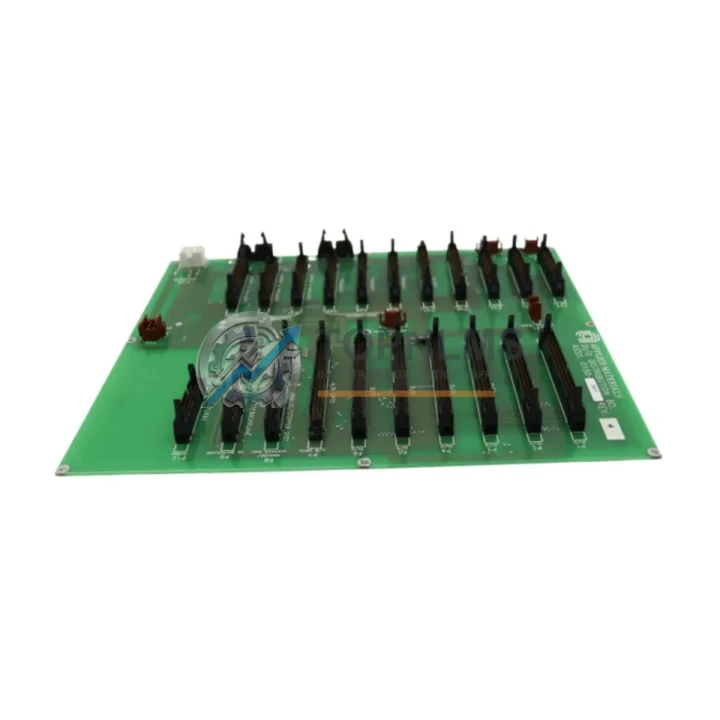

Applied Materials 0100-20217 DI/O Board: Centura Series Seamless Upgrade & Replacement Solution

The Applied Materials 0100-20217 DI/O Distribution Board (also referenced as 080554, DR353BR9M, and 2305233-D) is a critical digital input/output interface component used within the Applied Materials Centura platform — one of the most widely deployed single-wafer, multi-chamber semiconductor process systems in the industry. As Applied Materials continues to evolve its equipment portfolio, many fabs operating legacy Centura chambers face the challenge of sourcing discontinued or end-of-life I/O distribution boards without disrupting ongoing wafer production.

This listing provides a verified replacement and upgrade solution for facilities transitioning away from aging Centura system architectures, including those running older VME-based control backplanes, legacy SPARC workstation controllers, and first-generation Centura chamber configurations. Whether your facility is performing a like-for-like swap of a failed board, executing a planned preventive maintenance cycle, or undertaking a broader system modernization initiative, the 0100-20217 board is available from stock with full functional verification and a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Centura system modernization or board-level replacement rarely involves a single component in isolation. In practice, facilities replacing the 0100-20217 DI/O Distribution Board often find it necessary to simultaneously address adjacent components within the same electronics enclosure or chamber control architecture.

For example, the Centura platform’s I/O subsystem is closely integrated with the Applied Materials 0100-09016 VME Backplane, which routes digital signals between the distribution board and the chamber’s process control modules. A degraded backplane can cause intermittent I/O faults that mimic a failed distribution board, so both components should be inspected during any unplanned downtime event. Similarly, the Applied Materials 0100-21449 Digital I/O Board is frequently found in adjacent VME slots and shares the same signal bus, making it a natural companion part to evaluate during a preventive maintenance window.

On the power supply side, the Applied Materials 0100-76048 Power Distribution Assembly provides regulated DC rails to the I/O electronics rack. Voltage instability from an aging power assembly is a common root cause of repeated I/O board failures, and replacing the distribution board without verifying power rail integrity can lead to premature failure of the new component. Facilities should also verify the condition of the Applied Materials 0100-35037 Fuse Board, which protects individual I/O circuits from overcurrent events.

For chambers undergoing a more comprehensive controls upgrade — particularly those migrating from legacy SPARC-based workstation controllers to modern PC-based AMAT software platforms — the Applied Materials 0100-40001 System Controller Board and associated 0100-20100 Communication Interface Module are commonly replaced as part of the same project scope. These upgrades typically require no changes to the physical wiring harnesses connected to the 0100-20217 distribution board, as the I/O signal routing remains consistent across Centura controller generations.

In multi-chamber Centura configurations, the Applied Materials 0100-20060 Chamber Interface Board manages handshaking between the transfer module and individual process chambers. Ensuring this board is functional before commissioning a replaced DI/O distribution board prevents false fault signals during system restart. Finally, facilities performing a full I/O subsystem refresh should consider stocking the Applied Materials 0100-76200 I/O Termination Panel as a spare, as this panel is the primary field-wiring termination point and is subject to wear from repeated maintenance access.

Retrofit Guidance FAQ

Q: Does replacing the 0100-20217 board require any wiring changes?
A: No. The 0100-20217 is a direct form-fit-function replacement for the original Centura DI/O Distribution Board. All existing wiring harnesses, ribbon cables, and VME backplane connections are retained without modification. Technicians should follow standard ESD precautions and power-down procedures before board removal.

Q: Will existing process recipes and chamber software require modification after the board swap?
A: For a like-for-like replacement, no software or recipe changes are required. The board presents the same logical I/O map to the Centura system controller. If the replacement is part of a broader controller upgrade, consult your AMAT service documentation for any required I/O address remapping steps.

Q: Is the 0100-20217 compatible with all Centura chamber types?
A: The board is designed for the Applied Materials Centura platform and is compatible with the standard Centura electronics rack configuration. Compatibility with specific chamber process modules (e.g., CVD, PVD, Etch) depends on the I/O signal assignments defined in the chamber’s wiring documentation. Please provide your chamber model and configuration details when placing your order so our technical team can confirm fitment.

Q: What communication protocols does this board support?
A: The 0100-20217 operates on the proprietary Applied Materials Centura I/O bus and does not require any external fieldbus configuration (e.g., PROFIBUS, DeviceNet). It interfaces directly with the VME backplane and is transparent to the system’s process control software.

Q: How much physical space does the board require in the electronics rack?
A: The board occupies a standard single VME slot in the Centura electronics enclosure. No additional rack space or mounting hardware is required beyond what was used by the original board.

Q: What is the recommended procedure for commissioning the replacement board?
A: After installation, perform a full system power-on sequence per the Centura maintenance manual. Run the AMAT diagnostic routines to verify all I/O channels are responding correctly before resuming wafer processing. Our technical support team is available to assist with remote commissioning guidance if required.

Warranty Assurance

Every Applied Materials 0100-20217 DI/O Distribution Board supplied by TOPNLMS is backed by a comprehensive 12-month warranty covering functional defects under normal operating conditions. Prior to shipment, each unit undergoes a multi-stage outgoing inspection process that includes visual examination for physical damage, connector integrity verification, and functional bench testing to confirm all digital I/O channels are operational.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our support team at [email protected] with your order number and a description of the fault. Our team will assess the claim and arrange for a replacement unit to be dispatched, minimizing the impact on your production schedule. We understand that unplanned downtime in a semiconductor fab environment carries significant financial consequences, and our warranty support process is designed to prioritize rapid resolution.

Units are shipped from our Xiamen warehouse with full export documentation. Standard lead time for in-stock items is 3–7 business days for international destinations, with expedited shipping options available on request. All shipments are insured and tracked from dispatch to delivery.

For procurement teams requiring formal quality documentation, we can provide inspection reports, test records, and certificate of conformance upon request. Volume pricing and blanket purchase order arrangements are available for facilities requiring ongoing spare parts support for their Centura fleet.
