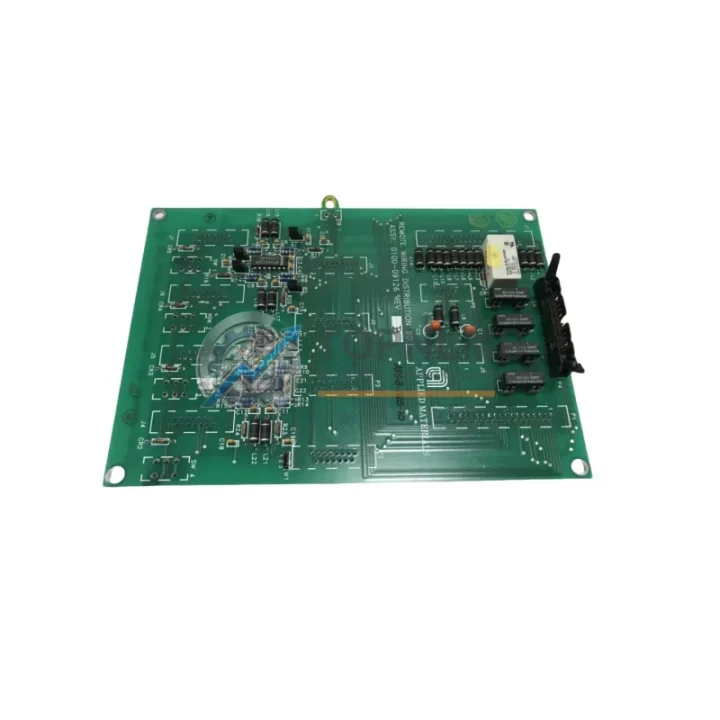

Applied Materials 0100-20021 Original Industrial Spare HSQ-751 Compatible

Product Overview

Applied Materials 0100-20021 Original Industrial Spare HSQ-751 Compatible: System Stability and Industrial Spare Parts Maintenance Value

The Applied Materials 0100-20021 HDP-CVD Chamber Interconnect Assembly is a critical original spare part designed for the HSQ-751 High-Density Plasma Chemical Vapor Deposition system. In semiconductor wafer fabrication environments, unplanned downtime caused by interconnect assembly failure can result in significant production losses, process drift, and costly wafer scrap. Maintaining a verified, original-specification replacement unit in your spare parts inventory is one of the most effective strategies for sustaining system uptime and process repeatability.

This interconnect assembly serves as the structural and electrical bridge between the HDP-CVD process chamber and the downstream gas delivery, RF power, and vacuum subsystems. Its integrity directly affects plasma uniformity, deposition rate consistency, and chamber-to-chamber matching across your fab line. When this component degrades — due to thermal cycling, process chemical exposure, or mechanical wear — the symptoms often manifest as subtle process drift before escalating to hard failures. Proactive replacement during scheduled preventive maintenance windows is strongly recommended over reactive replacement during unplanned outages.

For facilities operating legacy HSQ-751 systems, sourcing original Applied Materials components such as the 0100-20021 is increasingly challenging as the platform ages. TOPNLMS maintains verified stock of this assembly, fully tested prior to shipment, with a 12-month warranty covering manufacturing defects and functional integrity. Each unit is inspected against original Applied Materials specifications before dispatch.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a preventive maintenance window on the HSQ-751 platform, the chamber interconnect assembly (0100-20021) should never be evaluated in isolation. The HDP-CVD process environment subjects multiple adjacent components to the same thermal, chemical, and mechanical stresses. A comprehensive PM inspection should include the RF match network and associated RF power cables, which are subject to impedance drift and connector wear over extended process cycles. The gas distribution manifold and associated gas line fittings should be inspected for micro-leaks that can compromise process chemistry and chamber pressure stability.

The chamber liner and dome assembly — consumable components in direct contact with the plasma — should be assessed for erosion and deposition buildup that can affect plasma uniformity and contaminate the interconnect interface. The electrostatic chuck (ESC) and its associated DC power supply connections should be verified for leakage current and clamping voltage stability, as ESC degradation often correlates with interconnect stress. The turbomolecular pump and its foreline components should be inspected for bearing wear and pumping speed degradation, since vacuum integrity is directly linked to interconnect seal performance.

Additionally, the temperature control system — including the chiller supply lines, thermal sensors, and heater assemblies — should be checked during the same PM cycle, as thermal management failures accelerate interconnect assembly wear. The process kit components, including the shadow ring and focus ring, should be replaced on schedule to prevent particle contamination that can migrate to the interconnect region. Finally, the chamber pressure transducers and MFC (mass flow controller) calibration should be verified to ensure process recipe accuracy is maintained after the interconnect replacement.

Sourcing these components together — rather than reactively — reduces the total number of maintenance windows required per year, minimizes technician labor hours, and significantly lowers the risk of secondary failures triggered by deferred maintenance on adjacent systems.

Strategic Replacement Solutions

The Applied Materials 0100-20021 is a direct original-specification replacement for the HSQ-751 chamber interconnect assembly. For facilities that have been operating this platform beyond its original design lifecycle, maintaining access to original Applied Materials spare parts is the most reliable strategy for preserving process qualification status and avoiding the re-qualification costs associated with modified or non-OEM components.

Replacing the interconnect assembly with a verified original part eliminates the process variability risk introduced by dimensional or material deviations in non-original alternatives. For fabs running qualified processes — particularly in logic, memory, or advanced packaging applications — process re-qualification after a non-OEM component installation can represent weeks of engineering time and significant wafer cost. The 0100-20021 avoids this risk entirely by maintaining full OEM specification compliance.

For facilities managing multiple HSQ-751 chambers, a strategic approach is to maintain at least one 0100-20021 unit in bonded spare inventory per chamber cluster. This ensures that when a chamber is taken offline for unplanned maintenance, the interconnect replacement can be completed within a single shift rather than waiting on procurement lead times that can extend to weeks for legacy Applied Materials components. TOPNLMS ships verified stock globally, with expedited options available for urgent maintenance requirements.

Support FAQ

Q1: Is the 0100-20021 compatible with all HSQ-751 sub-revisions?
The 0100-20021 is designed for the Applied Materials HSQ-751 HDP-CVD platform. Compatibility with specific sub-revisions should be verified against your system’s Bill of Materials (BOM) or engineering drawings. Contact our technical team with your system serial number for confirmation before ordering.

Q2: What pre-shipment testing is performed on this assembly?
Each 0100-20021 unit undergoes a functional inspection prior to dispatch, verifying dimensional integrity, connector condition, and absence of physical damage. Units that do not pass inspection are not shipped. A 12-month warranty is provided from the date of shipment covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should this component be stored if held as a bonded spare?
Store in original or equivalent ESD-safe, cleanroom-compatible packaging in a temperature-controlled environment (15–25°C, relative humidity below 60%, away from corrosive gases). Inspect packaging integrity annually if held in long-term storage. Do not remove from protective packaging until immediately prior to installation.

Q4: What is the typical lead time and shipping arrangement?
In-stock units ship within 1–3 business days. International shipments are arranged via tracked express freight. For urgent maintenance requirements, contact us directly at [email protected] or +86 18359293191 to discuss expedited dispatch options.
