Applied Materials 0100-09032 Original Industrial Spare CVD Compatible

Product Overview

Applied Materials 0100-09032 Original Industrial Spare CVD Compatible: System Stability Through Precision Thermocouple Signal Conditioning

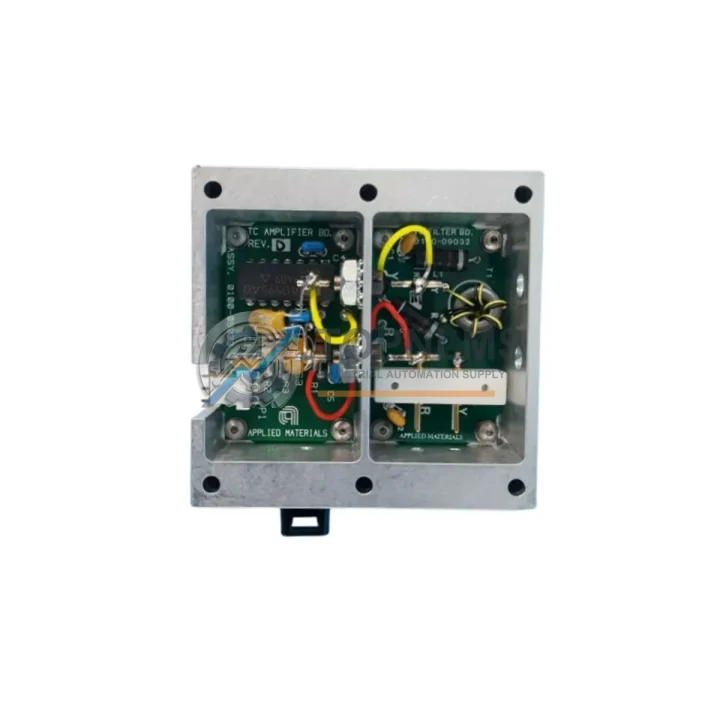

The Applied Materials 0100-09032 TC Filter Board is a critical original spare component engineered for Chemical Vapor Deposition (CVD) process chambers. As a thermocouple signal conditioner, this board ensures accurate temperature measurement and process control integrity across AMAT CVD platforms. In high-throughput semiconductor fabrication environments, a degraded or failed TC Filter Board directly threatens wafer yield, process repeatability, and chamber uptime. Stocking a verified original replacement is not optional — it is a fundamental pillar of any serious preventive maintenance program.

This board interfaces directly with thermocouple inputs from the process chamber, filtering electrical noise and conditioning analog signals before they reach the main process controller. Signal drift, intermittent faults, or outright board failure can cause false temperature alarms, recipe aborts, and unplanned downtime events that cascade into costly production losses. The 0100-09032 is a direct, plug-compatible replacement that restores original signal fidelity without requiring firmware changes or system recalibration beyond standard thermocouple verification procedures.

At TOPNLMS, every 0100-09032 unit is sourced from verified supply channels, inspected against original AMAT specifications, and function-tested prior to shipment. Each unit ships with a 12-month warranty, providing procurement teams and maintenance engineers with the confidence needed to approve the purchase and integrate the part into their spare parts inventory program.

Critical Technical Specs

Preventive Maintenance Strategy

A TC Filter Board failure rarely occurs in isolation. In CVD chamber maintenance cycles, engineers performing a scheduled inspection of the 0100-09032 should simultaneously audit the broader signal chain and power distribution architecture to prevent secondary failures from masking the root cause or triggering a repeat event shortly after the repair.

Begin with the thermocouple assemblies themselves — worn or oxidized TC probes feeding degraded signals into the filter board are a common upstream cause of board stress. Inspect and replace any Type K or Type J thermocouples showing drift beyond ±2°C at reference temperature. Next, verify the analog I/O modules downstream of the TC Filter Board; signal conditioning boards that have been operating with a faulty upstream component may have absorbed transient voltage spikes that degrade their own input protection circuits over time.

The DC power supply modules feeding the signal conditioning rack should be load-tested during this window. Ripple voltage on the 5 VDC or 15 VDC rails is a known contributor to TC signal noise and premature filter board failure. If the power supply is original-vintage hardware, this is an appropriate time to evaluate a proactive replacement. Similarly, inspect the backplane connectors and terminal blocks on the signal conditioning chassis — oxidized or loose terminations introduce resistance that corrupts low-level thermocouple millivolt signals before they even reach the 0100-09032 board.

For chambers running extended process recipes, the chamber temperature controller module (often a dedicated PID controller card within the AMAT control rack) should be verified for calibration drift. A freshly installed TC Filter Board paired with an out-of-calibration controller will not restore process accuracy. While the control rack is open, inspect the communication interface cards linking the process controller to the fab host system — these cards are frequently overlooked during board-level repairs and can introduce latency or data errors that mimic temperature control instability.

Maintenance teams should also evaluate the relay output modules that act on temperature alarm signals from the TC chain. Relay contacts that have experienced repeated alarm cycling may exhibit contact resistance that delays or prevents alarm actuation — a safety-critical failure mode in CVD environments. Fuse modules and circuit protection components within the same electrical panel should be inspected and replaced on a scheduled basis rather than reactively. Finally, if the chamber is equipped with an HMI or operator panel displaying real-time temperature trends, verify that the display calibration and data acquisition settings are consistent with the restored signal chain after the 0100-09032 replacement.

Procuring the 0100-09032 alongside these complementary components — thermocouple probes, I/O modules, power supply boards, terminal blocks, relay modules, fuse assemblies, and communication cards — as a coordinated spare kit reduces the risk of a follow-on failure requiring a second unplanned shutdown within the same maintenance window.

Strategic Replacement Solutions

The 0100-09032 is a direct replacement for the legacy 0100-09033 and cross-compatible with 0020-10758 and 030401-2, allowing maintenance teams to consolidate spare part SKUs and reduce inventory complexity without sacrificing compatibility. For facilities managing aging AMAT CVD fleets where original part numbers have been superseded or discontinued, the 0100-09032 provides a validated path to extend system life without platform migration.

Replacing this board with a genuine original component — rather than a third-party substitute — preserves the signal accuracy and noise rejection characteristics that AMAT’s process recipes were validated against. This is particularly important in advanced node CVD applications where temperature uniformity tolerances are tight and any signal degradation translates directly to yield loss. The board’s plug-compatible form factor means replacement can be completed during a standard PM window without chamber modification, minimizing the total downtime exposure per maintenance event.

For facilities operating multiple CVD chambers, a recommended strategy is to maintain at least one 0100-09032 unit per chamber cluster in on-site inventory, with a secondary buffer unit held at the regional warehouse level. This two-tier stocking approach ensures that a board failure during peak production can be addressed within the same shift, while the warehouse buffer is replenished through a standard purchase order cycle without urgency pricing pressure.

Support FAQ

Q1: What is the warranty coverage for the 0100-09032?
Every unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. The warranty covers functional defects identified under normal operating conditions consistent with the original AMAT application. Units are function-tested prior to dispatch to minimize the risk of DOA scenarios.

Q2: How do I verify compatibility before installation?
The 0100-09032 is compatible with the cross-reference part numbers 0100-09033, 0020-10758, and 030401-2. Before installation, confirm the board revision level matches your chamber’s BOM if your facility maintains strict revision control. Our technical team can assist with compatibility verification based on your chamber model and software version — contact us at [email protected] prior to ordering if you have revision-specific requirements.

Q3: What is the recommended inventory strategy for this part?
For facilities with one to three CVD chambers, we recommend maintaining one unit on-site as a hot spare. For larger fleets, a ratio of one spare per two to three chambers is a practical starting point, adjusted based on your historical MTBF data for this board. Given lead time variability for original AMAT components, placing a replenishment order as soon as the on-site spare is consumed — rather than waiting for a second failure — is the most effective way to maintain coverage without excessive capital tied up in inventory.

Q4: What pre-shipment testing is performed on each unit?
Each 0100-09032 unit undergoes functional verification against key electrical parameters prior to packaging. Units are handled under ESD-safe conditions throughout the inspection and packaging process. Shipments include basic documentation confirming the unit has passed pre-shipment checks. Expedited shipping options are available for urgent maintenance situations — contact our team to discuss lead time requirements.
