Applied Materials 0100-01781 Original Industrial Spare Producer HDPCVD Compatible: Sustaining System Stability in Semiconductor Fabrication

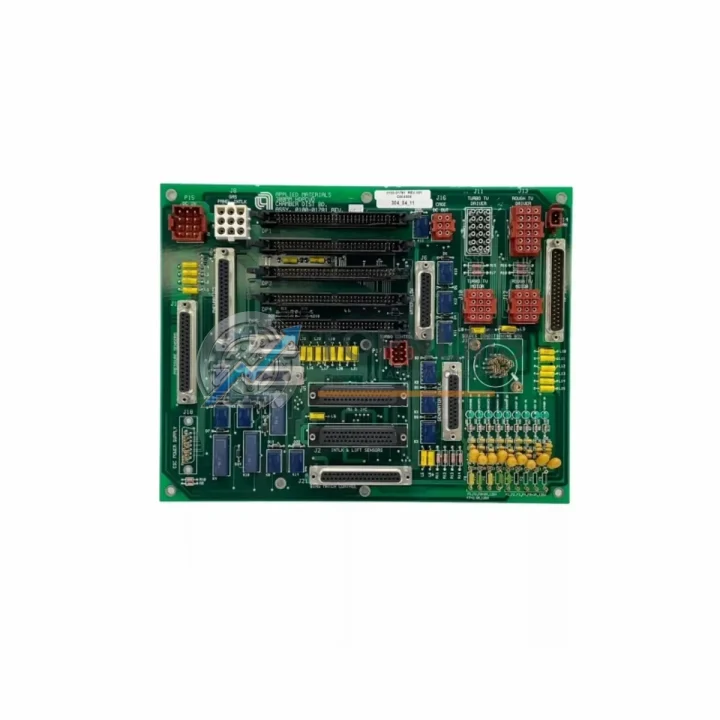

The Applied Materials 0100-01781 Chamber Distribution Board is a critical original spare component engineered for the Producer HDPCVD (High Density Plasma Chemical Vapor Deposition) CVD platform. In semiconductor fabrication environments where uptime is measured in thousands of dollars per hour, maintaining a verified, ready-to-install replacement for this board is not optional — it is a fundamental pillar of any responsible preventive maintenance strategy. Whether you are managing a 200mm legacy fab, a mixed-node production line, or a research-grade CVD cluster, the 0100-01781 distribution board governs chamber-level signal routing, power distribution, and process control communication that directly impacts deposition uniformity, film quality, and overall equipment effectiveness (OEE).

This listing covers the original Applied Materials part number 0100-01781, with cross-reference compatibility to alternate assembly codes 0010-10521 and AJ530FT-336-B4. All units are sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty covering functional defects under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Producer HDPCVD Investment

A chamber distribution board failure on the Producer HDPCVD platform rarely occurs in isolation. In most field cases, the root cause traces back to a cascade of aging components within the same electrical circuit or chamber assembly. Experienced process engineers and equipment maintenance teams know that when the 0100-01781 board is flagged for replacement, it is the right moment to conduct a comprehensive inspection of the surrounding subsystems — not just a like-for-like swap.

Begin with the RF match network and RF generator assembly. The HDPCVD process relies on high-frequency plasma excitation, and any degradation in the RF delivery chain — including worn coaxial cables, loose N-type connectors, or aging match network capacitors — will place abnormal stress on the distribution board’s signal pathways. Replacing the 0100-01781 without verifying RF integrity is a common cause of repeat failures within 90 days.

Next, inspect the chamber lid assembly and dome components, including the top and side RF coil assemblies. Cracked or eroded dome segments alter plasma distribution and can generate localized thermal hotspots that accelerate PCB degradation. If your maintenance log shows more than 18 months since the last dome inspection, schedule it concurrently with this board replacement.

The gas distribution system — specifically the gas box manifold, MFC (mass flow controller) modules, and associated pneumatic valves — should be leak-checked and flow-calibrated during any planned downtime window. MFC drift is a silent contributor to process excursions that are often misattributed to chamber electronics. Stocking a spare MFC module for your primary process gases (SiH₄, O₂, Ar) is a low-cost insurance policy against unplanned outages.

The chamber body temperature control system, including the ESC (electrostatic chuck) power supply, chiller unit, and associated temperature sensors (thermocouples and RTDs), should be verified for calibration accuracy. ESC voltage drift or chiller flow restriction can cause wafer-level non-uniformity that mimics distribution board faults, leading to misdiagnosis and unnecessary board replacements.

Do not overlook the vacuum system integrity. The turbomolecular pump, dry pump, and associated gate valve actuators are high-wear items in HDPCVD environments due to the corrosive nature of process byproducts. A failing turbo pump bearing or a leaking gate valve O-ring will compromise base pressure and plasma stability, creating conditions that stress chamber electronics including the distribution board. Maintaining a spare gate valve actuator and a set of critical O-ring kits in your local inventory is standard practice for high-utilization fabs.

Finally, review the chamber match controller board and process kit components — including the liner, focus ring, and edge ring — for wear indicators. Process kit consumables directly affect plasma confinement and, by extension, the electrical load profile seen by the distribution board. Aligning process kit replacement cycles with major board maintenance events reduces the total number of chamber openings per year and improves overall contamination control.

A well-structured spare parts inventory for the Producer HDPCVD platform should include: the 0100-01781 chamber distribution board, at least one spare MFC module per critical gas line, a replacement ESC power supply, a set of RF coaxial cables and connectors, a spare gate valve actuator, process kit consumables (liner, focus ring, edge ring), and a calibrated thermocouple set. This inventory profile supports a mean-time-to-repair (MTTR) target of under four hours for most unplanned chamber events.

Strategic Replacement Solutions: Extending Legacy System Life and Reducing Downtime

The Applied Materials Producer HDPCVD platform has been a workhorse of the semiconductor industry for over two decades. Many fabs continue to operate these systems well beyond their original design life, driven by the economics of depreciated capital equipment and the high cost of platform migration. In this context, the availability of original spare parts like the 0100-01781 is not merely a convenience — it is a strategic asset that directly supports fab capacity planning and cost-per-wafer targets.

Sourcing original AMAT part numbers rather than third-party alternatives eliminates the compatibility risk associated with non-OEM boards, which may differ in connector pinout, signal voltage levels, or firmware handshake protocols. A mismatched distribution board can trigger chamber interlock faults, corrupt process recipes, or — in worst-case scenarios — damage adjacent subsystems including the RF generator or match network. The 0100-01781, sourced as a genuine original spare, ensures plug-and-play compatibility with the Producer platform’s chamber management software and hardware architecture.

For fabs managing multiple Producer HDPCVD chambers, a centralized spare parts strategy — maintaining one 0100-01781 board per two to three chambers — provides a statistically robust buffer against simultaneous failures while minimizing carrying costs. This ratio is consistent with industry benchmarks for high-criticality PCB assemblies in semiconductor process equipment.

Cross-reference compatibility with part numbers 0010-10521 and AJ530FT-336-B4 means that procurement teams can consolidate purchasing across chamber generations without maintaining separate line items for each variant. This simplifies inventory management, reduces purchase order overhead, and improves spare parts utilization rates.
