Applied Materials 0050-34817 Original Industrial Spare CVD Series Compatible

Product Overview

Applied Materials 0050-34817 Original Industrial Spare CVD Series Compatible: System Stability for Semiconductor Process Environments

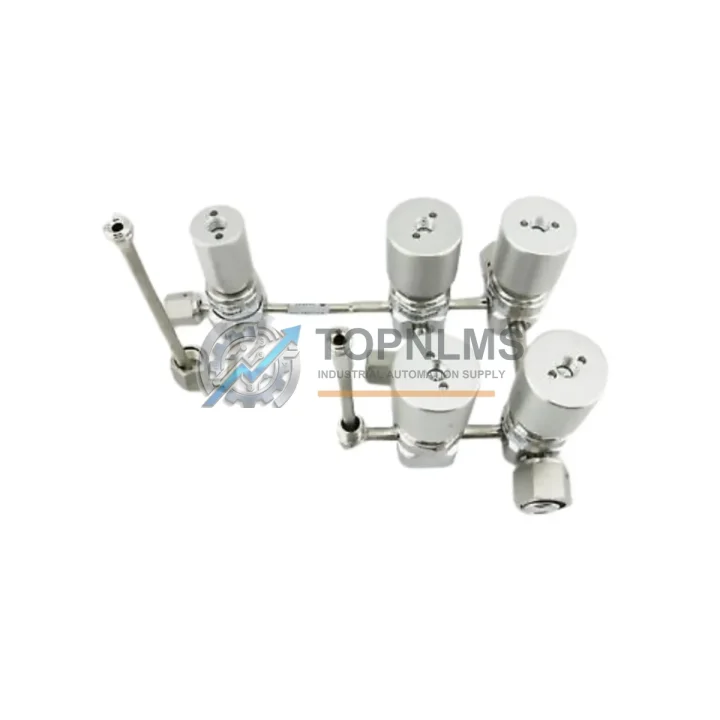

The Applied Materials 0050-34817 is a genuine 6-Way Gas Manifold Assembly engineered for precision gas distribution in CVD (Chemical Vapor Deposition) and Etch process modules. As a critical fluid and gas control component within Applied Materials semiconductor fabrication equipment, this manifold assembly governs the delivery of process gases to the reaction chamber — directly impacting deposition uniformity, etch selectivity, and overall wafer yield. In high-throughput fab environments where unplanned downtime translates to significant production losses, maintaining a verified original spare of the 0050-34817 in your maintenance inventory is a foundational risk-mitigation strategy.

Cross-reference part numbers for this assembly include XZ-218, 101714-02, and 0190-61144, confirming compatibility across multiple Applied Materials CVD and Etch platform generations. Whether you are managing a legacy Centura, Producer, or DPS system, this manifold assembly provides a direct, drop-in replacement that preserves original system specifications without requiring recalibration of upstream gas delivery parameters.

Critical Technical Specs

Preventive Maintenance Strategy

In semiconductor fab maintenance, the gas manifold assembly rarely fails in isolation — it operates within an interconnected gas delivery and process control ecosystem. A disciplined preventive maintenance (PM) program for CVD and Etch chambers should treat the 0050-34817 as part of a broader inspection and replacement cycle that encompasses the entire gas box and process module infrastructure.

During scheduled PM intervals or unplanned chamber downtime, maintenance engineers should simultaneously inspect the mass flow controllers (MFCs) and gas line isolation valves upstream of the manifold. Particulate contamination or seal degradation in these components can accelerate manifold wear and compromise gas delivery accuracy. The VCR fittings and gasket seal kits specific to the CVD gas box are low-cost, high-criticality consumables that should always be replaced during a manifold service event — holding these in local inventory eliminates a common source of extended downtime.

The process kit components — including chamber liners, edge rings, and focus rings — should be evaluated in the same maintenance window, since manifold-related gas distribution anomalies often correlate with process kit end-of-life conditions. The showerhead diffuser plate and chamber lid assembly are additional components that should be cross-checked during any manifold replacement, as gas distribution uniformity depends on the combined integrity of all three assemblies.

The RF match network and RF generator should be verified for stable output during the same downtime event, as plasma instability can sometimes be misdiagnosed as a gas delivery issue when the root cause lies in the RF subsystem. Similarly, the throttle valve and pressure control assembly governing chamber pressure should be inspected for seal integrity and actuator response, since pressure excursions stress manifold seals over time.

For Etch module applications, the electrostatic chuck (ESC) and its associated helium backside pressure control components should be included in the PM checklist, as thermal management and gas delivery are tightly coupled in etch process stability. Facilities running legacy DPS or MxP chamber configurations should also audit the gas panel solenoid valves and pressure transducers for drift or response degradation during the same service event.

For facilities managing multiple Applied Materials chambers, maintaining buffer stock of the 0050-34817 alongside related consumables — Swagelok-compatible tube fittings, O-ring seal kits, and chamber pressure transducers — reduces mean time to repair (MTTR), minimizes the risk of extended unplanned outages, and supports the operational continuity required in high-volume wafer fabrication environments.

Strategic Replacement Solutions

The Applied Materials 0050-34817 is designed as a direct replacement for aging or failed gas manifold assemblies across the CVD and Etch platform families. As Applied Materials equipment ages beyond its original service lifecycle, OEM support for legacy part numbers becomes increasingly constrained — longer lead times, limited availability, and escalating costs from spot-market brokers. Sourcing a verified original spare through a specialized industrial parts supplier provides a cost-effective, technically sound alternative to OEM procurement channels.

This manifold assembly maintains full dimensional and functional compatibility with the original installation envelope, requiring no modification to existing gas line connections, mounting hardware, or process recipes. Replacement can typically be completed within a standard PM window without extended chamber qualification, provided that upstream gas delivery parameters and downstream pressure control settings remain within specification.

For facilities managing system life extension programs on legacy Applied Materials platforms, maintaining a documented spare parts strategy that includes the 0050-34817 alongside other critical gas delivery and process control components is essential for sustaining equipment availability targets. The 12-month warranty provided with each unit ensures that procurement teams can justify the inventory investment with a defined quality assurance baseline, while the pre-shipment inspection and functional testing protocol reduces the risk of receiving a non-conforming part that could cause secondary damage or extended qualification delays.

Whether you are executing a planned chamber refurbishment, responding to an unplanned gas delivery fault, or building out a strategic spare parts buffer for a multi-chamber fab, the Applied Materials 0050-34817 delivers the reliability, compatibility, and supply chain assurance required for mission-critical semiconductor process equipment maintenance.

Support FAQ

Q1: Is the 0050-34817 compatible with both CVD and Etch process modules?
Yes. The 0050-34817 6-Way Gas Manifold Assembly is confirmed compatible with Applied Materials CVD and Etch process module platforms, including Centura, Producer, and DPS series chambers. Cross-reference part numbers XZ-218, 101714-02, and 0190-61144 can be used to verify fitment against your specific chamber configuration and BOM revision.

Q2: What does the 12-month warranty cover, and what is the pre-shipment testing process?
Each 0050-34817 unit is inspected and functionally tested prior to dispatch to verify structural integrity, port configuration, and seal condition. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or credit, subject to failure analysis confirmation.

Q3: How should I manage spare parts inventory for this manifold assembly in a multi-chamber environment?
For facilities operating three or more Applied Materials CVD or Etch chambers, maintaining a minimum of one 0050-34817 unit in local inventory is recommended. Given typical PM intervals of 250–500 RF hours per chamber and the potential for unplanned gas delivery faults, a buffer stock strategy reduces exposure to lead-time risk and supports MTTR targets. Coordinate procurement with your broader gas delivery spare parts plan, including MFCs, isolation valves, and seal kits.

Q4: Can this part be installed by in-house maintenance staff, or does it require OEM field service?
The 0050-34817 is designed for replacement by qualified fab maintenance technicians familiar with Applied Materials gas delivery systems. Installation follows standard gas box service procedures, including proper lockout/tagout, gas line purge and isolation, VCR fitting torque specifications, and post-installation leak check protocols. OEM field service is not required for a standard manifold swap, provided that in-house staff hold the appropriate equipment qualification and safety certifications.
