ANSALDO 211QS50003B Original Industrial Spare – System Stability for 211QS SCR Drive Applications

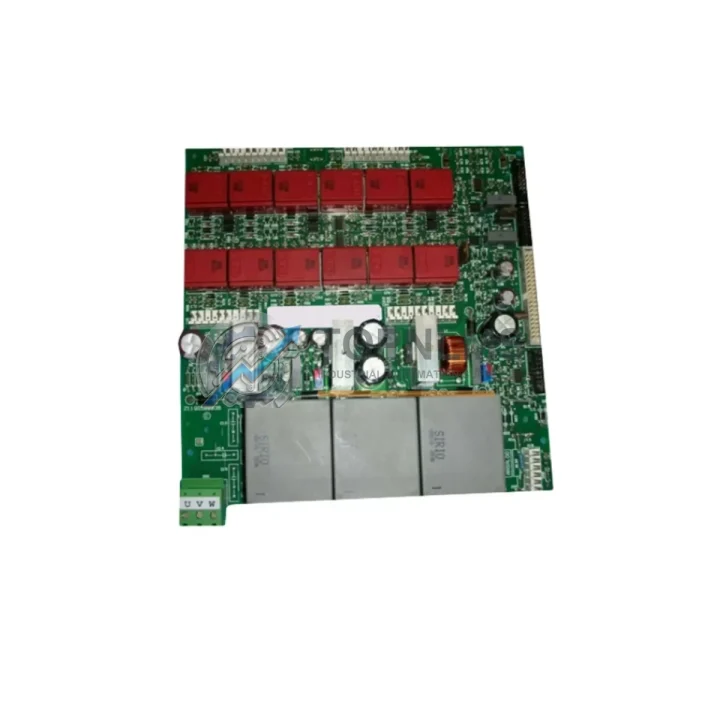

The ANSALDO 211QS50003B is an original SCR Gate Firing Board engineered for ANSALDO’s 211QS series DC drive systems. In industrial environments where motor control reliability is non-negotiable — steel mills, paper lines, crane drives, extruder systems, and heavy process machinery — this board serves as the precision trigger interface between the control logic and the SCR power stack. Its role is critical: any degradation in gate pulse timing or firing accuracy directly translates to torque irregularities, drive faults, and unplanned production stoppages.

Sourcing an original 211QS50003B rather than an unverified substitute eliminates compatibility risk. ANSALDO’s 211QS platform was designed with tight electrical tolerances, and the gate firing board must match the exact pulse width, synchronization logic, and isolation characteristics of the original design. This listing supplies a genuine, tested board ready for immediate installation or held as a critical spare in your maintenance inventory.

Critical Technical Specs

Preventive Maintenance Strategy

When a 211QS50003B gate firing board is flagged for replacement — whether due to erratic SCR triggering, asymmetric phase firing, or a drive fault code pointing to the pulse generation circuit — experienced maintenance engineers treat the event as a system-level inspection opportunity, not an isolated board swap.

Begin with the SCR power stack itself. The thyristors in the 211QS bridge assembly are subject to thermal stress over years of operation, and a failed gate board may have been masking marginal SCR junction health. Verify forward voltage drop and gate sensitivity on each SCR before reinstalling the new 211QS50003B. At the same time, inspect the snubber RC networks mounted across each SCR — degraded snubber capacitors are a common root cause of false triggering that accelerates gate board wear.

The DC bus capacitor bank and the drive’s internal power supply board (often designated as the auxiliary PSU card within the 211QS chassis) should be checked for capacitance drift and output ripple. A weak auxiliary supply causes unstable gate pulse amplitude, which shortens the service life of any replacement firing board. While the cabinet is open, inspect the field excitation board and armature feedback card — both interact directly with the firing angle calculation logic and must be in calibrated condition for the new gate board to perform correctly.

Thermal management is equally important. Clean or replace the cabinet cooling fans and verify that the heat sink compound on the SCR modules has not dried out. Overtemperature events are a leading cause of gate board degradation in legacy ANSALDO 211QS installations. Check the thermistor or thermostat sensors mounted on the heat sink assembly and confirm they are reading accurately.

On the signal side, inspect the speed feedback tachogenerator or encoder interface card. Noise on the speed feedback line can cause the firing angle to hunt, placing repetitive stress on the gate firing board’s synchronization circuit. Similarly, review the current feedback transducer (CT or Hall-effect sensor) and the associated signal conditioning board — accurate current feedback is essential for stable closed-loop SCR control.

For facilities running multiple 211QS drives in a coordinated line — such as a multi-stand rolling mill or a multi-motor paper machine — it is best practice to hold at least one spare 211QS50003B gate firing board per drive type in the on-site critical spares cabinet. Complement this with spares for the firing board’s most common failure neighbors: the pulse transformer assembly, the opto-isolator array on the interface board, and the gate resistor network. These low-cost components, when stocked alongside the 211QS50003B, enable a complete drive restoration within a single maintenance shift rather than waiting days for emergency procurement.

Strategic Replacement Solutions

The ANSALDO 211QS platform has been in service for decades across heavy industry globally. OEM support for legacy 211QS components has contracted significantly, making the availability of original boards like the 211QS50003B increasingly critical for plant operators who cannot justify a full drive replacement program.

Installing an original 211QS50003B preserves the drive’s factory-calibrated firing angle characteristics, eliminating the re-commissioning time and risk associated with non-original substitutes. The board slots directly into the existing card rack without mechanical modification, and the gate pulse timing is factory-matched to the 211QS synchronization circuit — meaning the drive can be returned to service after a straightforward board swap and a brief no-load test run.

For plants managing a fleet of legacy ANSALDO drives, a structured obsolescence strategy is recommended: audit all 211QS installations for board revision levels, identify units with high operating hours or prior fault history on the firing circuit, and pre-position replacement 211QS50003B boards before the next scheduled maintenance window. This approach converts reactive emergency repairs into planned, controlled replacements — reducing mean time to repair (MTTR) and protecting production schedules.

Where a full drive upgrade is eventually planned, the 211QS50003B serves as a bridge solution, keeping the existing system stable and productive while the capital project is scoped and approved. Original boards also retain residual value for trade-in or cross-fleet redeployment, making them a sound inventory investment.

Support FAQ

Q1: Is the 211QS50003B compatible with all revisions of the ANSALDO 211QS drive series?
The 211QS50003B is the standard gate firing board for the 211QS platform. Compatibility across minor hardware revisions of the 211QS chassis is generally maintained, but we recommend confirming your drive’s revision label and existing board part number before ordering. Our technical team can assist with cross-reference verification prior to shipment.

Q2: What testing is performed before shipment?
Each 211QS50003B board undergoes functional verification prior to dispatch, including gate pulse output checks and visual inspection for component-level defects. Boards are packed in anti-static packaging with a test record. A 12-month warranty from invoice date covers manufacturing defects and functional failure under normal operating conditions.

Q3: How quickly can the board be installed on-site?
For a technician familiar with the 211QS drive architecture, board replacement is typically completed within one to two hours, including a no-load commissioning test. No firmware programming is required — the 211QS50003B is a hardware-only firing board with no configurable parameters. Drive re-commissioning follows the standard 211QS startup procedure.
